ZEEnit Series Meeting Every Demand
- Reliable trace analysis even in most difficult matrices
- Wide dynamic concentration range
- Best in class usability – no expert knowledge required
ZEEnit is the plus in your laboratory. It convinces with its cost efficiency, fast and reliable analysis and excels in the analysis of samples with high matrix.

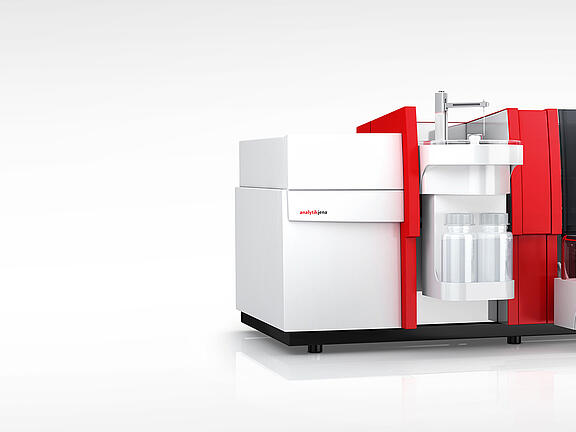

Zeeman AAS for Demanding Samples
The ZEEnit series is designed for routine trace analysis in demanding matrices. The systems combine an outstanding graphite furnace concept with the most powerful and latest generation of Zeeman effect background correction and D2 background correction
- Variable magnetic field strength (2Field/3Field and Dynamic Mode) – maximum sensitivity and expansion of the linear working range
- Included intelligence like automatic calibration and sample dilution and wide range of accessories to maximize the productivity, safety and ease of use
- Direct analysis of solid sampling upgradable
Brochures
| Title | Language | Info |
|---|---|---|
| Produktkatalog Chemische Analyse (DE) | de | PDF, 909 KB |
| Product Guide Chemical Analysis (EN) | en | PDF, 886 KB |
| ZEEnit Series AAS for Flame Graphite Furnace Hydride Technology (EN) | en | PDF, 547 KB |
| ZEEnit Series AAS for Flame Graphite Furnace Hydride Technology (EN) | en | PDF, 547 KB |
| Flyer Calibration Standard Offering (EN) | en | PDF, 265 KB |
Proven Zeeman Technology
Atomic absorption spectrometry is a proven technique for the determination of elements in the medium to low concentration range. A special challenge is the trace analysis of toxic elements in difficult matrices. To meet this requirement, Analytik Jena offers the ZEEnit series of reliable analytical instruments with the proven Zeeman AAS technology. The Zeeman background correction used here is one of the most powerful background corrections in the field of AAS and ensures reliable results.
Both Zeeman AAS, the ZEEnit 650 P and the ZEEnit 700 P, are compact spectrometers equipped with a transversally-heated high-performance graphite furnace. The Zeeman magnetic field control for Zeeman background correction enables variable adjustment of the magnetic field strength up to one Tesla in various possibilities, the 2-field / 3-field and dynamic mode, thus providing maximum sensitivity and an extended working range. The systems are also equipped with a powerful deuterium background correction.
The ZEEnit 700 P provides furthermore a fully automatic flame mode, which is available in a second sample compartment, thus covering a wide concentration range.The operation of the systems is simple and user-friendly, as many processes are automated. This is implemented in a compact design by numerous integrated components, such as a carousel for 8 hollow cathode lamps, an RFID tool for the use of coded hollow cathode lamps as well as super lamps, a sampler for graphite furnace technology with automatic dilution function and a furnace vision tool. Pre-programmed methods for typical applications as well as a quick start function in the software allow a quick start for routine applications. With the combination of the unique direct AAS solids sampling and the ZEEnit graphite furnace technology, the effort for sample preparation can be minimized.
Products
ZEEnit 650P Furnace Vision - Graphite Furnace AAS with Zeeman background correction
Zeeman AAS for graphite furnace and hydride technique
Highly sensitive trace analyzer for recurring measurement tasks, equipped with a furnace camera
Order number: 813-0650P-2-K
ZEEnit 700P Furnace Vision - Flame- and Graphite Furnace AAS with Zeeman background correction
Zeeman AAS with ONE + ONE atomizer compartment for fast switching between flame and graphite furnace or hydride mode without hardware conversion for highest flexibility, additionally equipped with a furnace camera
Order number: 813-0700P-2-K
Applications
Applications
-
Determination of mineral contents in nonalcoholic (EN)
-
Determination of toxic traces of cadmium, lead, and thallium in food (EN)
Applications
-
Spurenanalyse toxischer Elemente in Oberflächen- und Trinkwasser mit kombinierten AAS-Techniken (DE)
-
Trace analysis of toxic elements in surface and drinking water by combined AAS techniques (EN)
Technical Data
Light source | Sensitivity | Spectral bandwidth | Wavelength range | Optical design | Detector | Background correction | Wavelength precision | Dimension (width x depth x height) | |
|---|---|---|---|---|---|---|---|---|---|
| ZEEnit 650P Furnace Vision - Graphite Furnace AAS with Zeeman background correction | Hollow Cathode Lamps (HCL) | Graphite furnace: 0.94 µg/L 1 %Abs (Pb 283) | 0.2, 0.5, 0.8, 1.2 nm | 180-900 nm | Czerny Turner Spectrometer | PMT | Zeeman, Deuterium | 0.005 nm | 790 mm x 645 mm x 735 mm |
| ZEEnit 700P Furnace Vision - Flame- and Graphite Furnace AAS with Zeeman background correction | Hollow Cathode Lamps (HCL) | Graphite furnace: 0.94 µg/L 1 %Abs (Pb 283) Flame: 0.017 mg/l 1%Abs (Cu 324) | 0.2, 0.5, 0.8, 1.2 nm | 180-900 nm | Czerny Turner Spectrometer | PMT | Zeeman, Deuterium | 0.005 nm | 1180 mm x 650 mm x 735 mm |
Order Information
Order number | Description |
|---|---|
| 813-0650P-2-K | ZEEnit 650P Furnace Vision Graphite Furnace AAS with Zeeman background correction |
| 813-0700P-2-K | ZEEnit 700P Furnace Vision Flame and Graphite Furnace AAS with Zeeman background correction |
Accessories
Burner head AC (100 mm) for higher sensitivity in the acetylene/ air flame *
Order number: 810-60056-0
Burner head NO/AC (50 mm) for acetylene/nitrous-oxide or acetylene/air flame *
Order number: 810-60057-0
AS-F Autosampler for flame, hydride AAS and CV-AAS/AFS
Standard AAS Autosampler for flame and hydride technology as well as CV-AAS/AFS
Order number: 810-60500-0
AS-FD Autosampler with auto-dilution for flame, hydride AAS and CV-AAS/AFS
Advanced AAS Autosampler with auto-dilution function for flame and hydride technology and CV-AAS/AFS
Order number: 810-60501-0
Sample rack 139 positions for AS-F and AS-FD
Order number: 810-60503-0
Sample rack 54 positions for AS-F and AS-FD
Order number: 810-60502-0
Burner fork - for fast replacement of burner heads
Order number: 810-60058-0
Scraper - for automatic burner head cleaning
Order number: 810-60127-0
Segmented Flow Star SFS 6.0 - switching valve
Order number: 810-60129-0
Hg/Hydrid-System HS 55 - Batch mode system for Hg and hydride forming elements
Relaible results even for demanding samples
Order number: 810-60404-2
Hg/Hydride System HS 50 - Manual hydride system with flame heated quartz cell atomizer
Cost-effective Hydride system for simple application
Order number: 810-60149-2
Hg/Hydride System HS 60 - Flow injection system for Hg and hydride forming elements
Fully automated sample handling for high sample troughput in routine work
Order number: 810-60402-2
SSA 600 automatic solid sampler for ZEEnit-Series
Automatic solid sampler for ZEEnit-Series
Order number: 810-60275-0
SSA 6z Manual solid sampler for ZEEnit - series
Direct solid AAS
Order number: 810-60049-2
Chiller, 50 Hz - Software-controlled cooling system *
Order number: 810-60053-0
Chiller, 60 Hz - Software-controlled cooling system *
Order number: 810-60052-0
Air compressor, 50 Hz - to supply AAS with water- and oil- free compressed air
Order number: 810-60055-0
Air compressor, 60 Hz - to supply AAS with water- and oil- free compressed air
Order number: 810-60253-0
Bench for ICP/AAS for AAS, ICP-OES and ICP-MS instrumentation
Order number: 810-88005-0
* necessary to operate
Software
ASpect LS
Simple, routine handling provided via a single user interface featuring great flexibility – the Aspect LS is a modern and intuitive software with fully automatic device control and extensive data evaluation function. Software functions and modules help to meet all legal requirements and standards.
- Quickstart – no expert knowledge required
- Ready-to-use worksheets for outstanding usability
- Simple methode development
- Comprehensive evaluation function
- Good laboratory practice (GLP): Control charts for statistical quality control along with notifications whenever defined limit values are exceeded – all in order to maintain comprehensive quality
- FDA 21 CFR Part 11 Compliance (optional)
| Product | Required | Included |
|---|---|---|
| ZEEnit 650P Furnace Vision - Graphite Furnace AAS with Zeeman background correction (813-0650P-2-K) | ||
| ZEEnit 700P Furnace Vision - Flame- and Graphite Furnace AAS with Zeeman background correction (813-0700P-2-K) |
FDA 21 CFR Part 11 Compliance for ASpect LS
Order number: 810-60152-0
The ASpect LS software with the FDA 21 CFR Part 11 module fully complies with FDA requirements. User rights management and individual passwords ensure that the system can only be accessed by authorized persons. All important events, such as logon/logoff, measurements, calibrations, and messages generated by the Self Check System, are recorded in the Audit Trail. Measured data can undergo routine review and approval using electronic signatures.
| Product | Required | Included |
|---|---|---|
| ZEEnit 650P Furnace Vision - Graphite Furnace AAS with Zeeman background correction (813-0650P-2-K) | ||
| ZEEnit 700P Furnace Vision - Flame- and Graphite Furnace AAS with Zeeman background correction (813-0700P-2-K) |
Consumables
| Order number | Name |
|---|---|
| 810-60258-0 | Consumable set F for Flame technique novAA/contrAA/ZEEnit series |
| 810-60079-0 | Consumable set G Consumables for Graphite technique ZEEnit |
| 407-152.346 | Z-graphite insert for ZEEnit |
| 407-152.314 | Z-graphite tube PIN-platform -pyrolytically coated,, long |
| 407-152.315 | Z-standard graphite tube - pyrolytically coated |
| 702-A63.624 | Cleaning strips for flame AAS |
| 702-A63.625 | Cleaning wires for flame AAS |
| 407-111.860 | Impact bead (standard, short) for mixing chamber (black, Ryton)-nebulizer (graphite)-system (III) |
| 407-111.006 | Inlet tube (PTFE), manual work for mixing chamber (black, Ryton)-nebulizer (graphite )-system (III) |
| 407-111.501 | Nebulizer (graphite) for mixing chamber (black, Ryton)-nebulizer (graphite)-system (III) |
| 407-111.402 | Set o-rings organic samples for mixing chamber (black, Ryton)-nebulizer (graphite)-system (III) |
| 407-143.021 | Set sealing rings for mixing chamber (black, Ryton)-nebulizer (graphite)-system (III) |
| 407-111.837 | Waste tube siphon for mixing chamber (black, Ryton)-nebulizer (graphite)-system (III) |
| 810-60508-0 | Consumables Set H for Hydride Systems |
| 810-60082-C | HCL package with 8 coded lamps for all novAA and ZEEnit series |
| 407-1508.108 | Level sensor, organic samples for mixing chamber (black, Ryton)-nebulizer (graphite)-system (III) |
Related Products
mercur DUO plus - mercury analyzer based on could vapor technique with AAS and AFS
Mercury analysis in the ultra trace range
Downloads
| Title | Language | Info |
|---|---|---|
| Flyer Calibration Standard Offering (EN) | English | PDF, 265 KB |
| Operating Manual ZEEnit 650 P (DE) | German | PDF, 12 MB |
| Operating Manual ZEEnit 650 P (EN) | English | PDF, 12 MB |
| Operating Manual ZEEnit 700 P (DE) | German | PDF, 14 MB |
| Operating Manual ZEEnit 700 P (EN) | English | PDF, 14 MB |
| Operating Manual ZEEnit 700 P (ES) | Spanish | PDF, 14 MB |
| Operating Manual ZEEnit 700 P (FR) | French | PDF, 14 MB |
| Product Guide Chemical Analysis (EN) | English | PDF, 886 KB |
| Produktkatalog Chemische Analyse (DE) | German | PDF, 909 KB |
| ZEEnit Series AAS for Flame Graphite Furnace Hydride Technology (EN) | German | PDF, 547 KB |
| ZEEnit Series AAS for Flame Graphite Furnace Hydride Technology (EN) | English | PDF, 547 KB |
