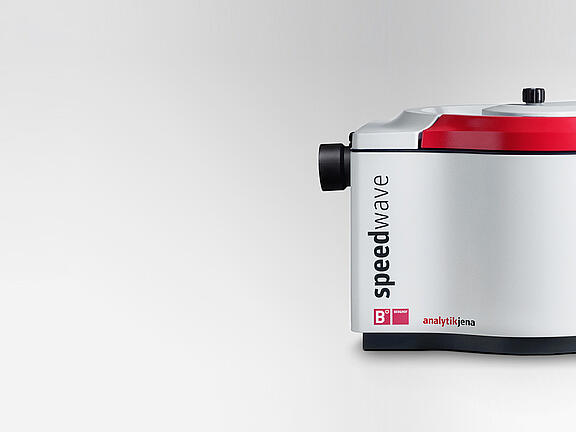

speedwave XPERT - Microwave Pressure Digestion System Sample Preparation at the Highest Level

  • Reliable digestions thanks to innovative sensor technologies
  • Outstanding lifetime of vessels
  • Maximum safety and increased user comfort

Microwave-assisted pressure digestion is used as a sample preparation technique for reliable elemental analysis in routine and research laboratories alike. speedwave XPERT is a universally applicable microwave digestion system for the preparation of organic and inorganic sample materials that impresses with its reliability, safety, and economy.

Reliable, Durable, and Economic

speedwave XPERT sets new standards with its innovative sensor technology and high-quality components. Real-time temperature and pressure monitoring takes place contactless for all vessels, which can be removed individually after digestion. The vessels of speedwave XPERT have an outstanding lifetime of up to 10,000 digestion cycles. Low material wear and protection of the vessels against damage by optical pressure and temperature control also ensure that you can significantly reduce your running costs in sample preparation.

  • No cross-contamination due to minimal surface porosity of TFM-PTFE vessels
  • Homogenous distribution of microwave radiation due to the round design of the oven chamber
  • Permanent pressure and temperature control by optical sensors

Download Product Information

Maximum Operational Safety and High Application Variety

Working under demanding conditions requires an absolutely reliable system. The pressure-resistant furnace with an electrically locked swiveling lid is equipped with an integrated exhaust system to prevent reaction gases from escaping. The furnace chamber is permanently ventilated. To reduce safety risks from irregular heating, a monitoring of the reaction parameters pressure and temperature is of particular importance. Thanks to real-time monitoring of the internal vessel pressure automatic regulation and, if necessary, shutdown of processes, takes place in case of exothermic reactions.

  • Top-loading concept and electronic lid lock
  • Permanent ventilation of the oven chamber and removal of generated acid fumes by the fume collection system
  • Automatic regulation in case of exothermic reactions

The speedwave XPERT vessels are manufactured with the highest quality standards. They are made from high quality TFM-PTFE and impress through reliability and an outstanding lifetime. Vessel volumes cover a wide range, from 40 to 100 mL. You can choose between four vessel options, offering maximum flexibility for digestions up to 260 °C and 100 bar. The vessels comprise only few individual parts. They are opened and closed manually and without additional tools. When the vessels are opened, the remaining pressure is released safely and controlled. All vessels are equipped with a rupture disc, which breaks when the overpressure exceeds the tolerance level. This allows an immediate termination of the digestion run in case of exothermic reactions. Thus, expensive consequential damage is avoided. Additional liner systems expand the field of applications of existing vessel types. The vessels can be equipped with inserts to support digestion of small sample quantities or complex samples.

Pressure monitoring (Optical Pressure Control OPC) involves optical detection of the internal vessel pressure. The patented technology uses a glass ring, on which the internal pressure acts as a sensor element. Increases in pressure are reflected by changes to the optical characteristic of the glass. The sensor element located in the screw cap of the digestion vessel records these changes and shows the pressure individually for each sample. The optical detection of the vessel surface temperature (Optical Temperature Cut-Off OTC) increases safety and lifetime of the digestion vessels and allows for an individually programmable upper temperature limit. The optical detection of each sample temperature (Direct Infrared Control DIRC) is a patented temperature measurement process, here as well, an infrared thermometer is used for contactless control in all vessels instead of just one reference vessel. Thanks to the optical pressure control in every vessel, exothermic reactions are detected early and the process is automatically regulated or stopped by speedwave XPERT.

  • Real-time monitoring
  • Minimization of the risk of contamination
  • Easy handling

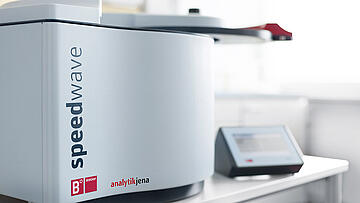

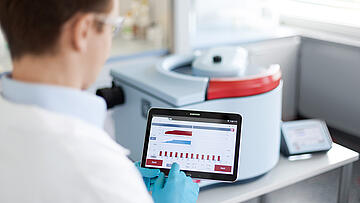

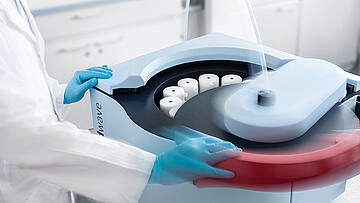

The innovative design of speedwave XPERT builds a connection of convenience and function. A special feature of the microwave digestion system is its top-loading concept. The swiveling lid allows the vessels to be easily loaded from above, providing optimal operator comfort. speedwave XPERT can be operated via a 7" touch controller with a graphical user interface, as well as via mobile devices or PC/laptop.

Technical Data

Dimension (width x depth x height)

speedwave XPERT - Microwave Pressure Digestion System
819-5005000-2

880 mm x 645 mm x 480 mm

Order Information

Order number

Description

819-5005000-2 speedwave XPERT Microwave Pressure Digestion System

Accessories

speedwave XPERT Start DAP60X -samples 12x 60 mL, 40 bar *

Order number: 819-5005060

Concentration/Evaporation unit for CX 100

Order number: 819-5004820-0

Turntable ring speedwave XPERT - for DAP-60/100 and DAK-100

Order number: 819-5005148

CX 100 Opening station

Order number: 819-5303625-0

Forming tool CX 100

Order number: 819-5302026-0

Forming tool PL 100

Order number: 819-5303751-0

Forming tool PM 40

Order number: 819-5303437-0

Forming tool PM 60

Order number: 819-5014612-0

speedwave XPERT Start DAK100X -samples- 8x100ml,100bar *

Order number: 819-5005100

speedwave XPERT Start DAK100X OPC-samples 8x100ml,100bar *

Order number: 819-5005101

speedwave XPERT Start DAP100X OPC-samples-12x100mL 25 bar /40 bar *

Order number: 819-5005103

speedwave XPERT Start DAP100X samples-12x100 ml, 25/40 bar *

Order number: 819-5005102

speedwave XPERT Start DAP40X - samples 24 x 40 ml, 40 bar *

Order number: 819-5005040

speedwave XPERT Start DAP60X OPC-samples 12x60ml, 40bar *

Order number: 819-5005061

* necessary to operate

Software

speedwave XPERT Software

pre-installed standard software for full control included, for 21 CFR part 11 compliance please select 819-5005011

Product Required Included
speedwave XPERT - Microwave Pressure Digestion System (819-5005000-2)

Consumables

Order number Name
419-5303740-0 Rupture disc Special for PM 60 vessels, 50 bar, stainless steel (SS316), set of 20 pieces
819-5004780-0 Cap for CX 100-vessel with pressure control
819-5003790-0 Cap for PM 40 vessel with pressure control
819-5003580-0 Cap for vessels with pressure control
419-5303567-0 Cap insert for closure caps with pressure control (RPM)
419-5303433-0 PM 40 Cap without pressure control for PM 40 vessel made of TFM
419-5304707-0 Cap insert for closure caps CX 100 with pressure control (RPM)
819-5004720-0 CX 100 Vessel complete
819-10000002-0 CX 100 Vessel complete RPM
419-5303283-0 CX 17 Insert made of TFM, 17 ml
419-5303282-0 CX 17 pressure jacket
419-5303428-0 CX 17 Spacer ring made of PTFE
819-5304763-0 Cap insert for closure caps CX-100 with pressure control (OPC)
819-5303277-0 Enlargement insert CX 100
819-5303661-0 Enlargement insert PH 30
819-5303299-0 Enlargement insert PL 100
819-5303278-0 Enlargement insert PM 60
419-5302963-0 Fixation screw for lip seal ring
819-5303386-0 Forming System 6-fold CX 100
819-5303275-0 Forming System 6-fold PL 100
819-5303385-0 Forming System 6-fold PM 60
819-5303245-0 Forming system TOPwave
419-5303573-0 Prisma RPM Glass prism for closure caps with pressure control (RPM)
419-5304882-0 CX 100 Glass-Ring for closure caps CX 100 with pressure control (RPM)
419-5004110-0 Knurled nut for exhaust tube of gas collection system
419-5308060-0 Lid for CX 100 made of TFM, set of 5 pieces
419-5303485-0 CX 17 Lid for CX 17 made of TFM, set of 4 pieces
419-5709024-0 Lid for PH 30 made of TFM, set of 10 pieces
419-5300005-0 Lid for PL 100 made of TFM, set of 5 pieces
419-5014617-0 Lid for PM 60 made of TFM, set of 5 pieces
419-5014420-0 Lid for QX 20 / QX 22 made of TFM, set of 10 pieces
419-5014414-0 Lid for QX 20 / QX 22 made of TFM, set of 4 pieces
419-5303287-0 CX 100 Liner insert for pressure vessel CX 100 made of TFM, 100 ml, 100 bar
419-5302962-0 Lip-seal ring for the gas collection system
419-5014622-0 Marble granulate for evaporation unit
419-5306386-0 O-Ring RPM 25 x 3 mm for closure caps with PM 40 pressure control (RPM)
419-5304101-0 O-Ring RPM (Viton)
419-5303296-0 PEEK-Rung nut for CX 100 closure cap
819-5003630-0 PL 100 Vessel complete
819-5003632-0 PL 100 Vessel complete RPM
419-5303446-0 Lid for PM 40 made of TFM, set of 10 pieces
819-5003270-0 PM 40 Vessel complete
819-5003560-0 PM 60 Vessel complete
819-5003559-0 PM 60 Vessel complete RPM
419-5303588-0 Polarisation foil for prism RPM, set of 24 pieces
419-5303389-0 PTFE Adapter piece CX 17 in PL 100
419-5014433-0 QX 20 Centring sleeve made of PTFE
419-5303571-0 Knurled screw for closure caps with pressure control (RPM) for PH30/PM60/PL100
419-5308040-0 Rupture disc for CX 100 made of Titanium, 100 bar, set of 10 pieces
419-5303445-0 Rupture disc for PM 40 made of aluminium, 40 bar, set of 25 pieces
419-5014410-0 Rupture disc for QX 20 / QX 22 made of Monel, 100 bar, set of 5 pieces
419-5303065-0 Rupture disc Special PM 60 (reinforced), set of 25 pieces
419-5014616-0 Rupture disc standard PH 30 and PL 100, set of 25 pieces
419-5004740-0 Screw cap for CX 100 without pressure measurement
819-5004730-0 Set caps for CX 100-vessels without pressure control
819-5004790-0 Set caps for CX 100-vessels with pressure control
819-5003540-0 Set caps for vessels without pressure control
819-5003590-0 Set caps for vessels with pressure control
419-5046170-0 PL 100 Special lid with integrated TFM rupture disc for PL 100
419-5046180-0 Special lid with integrated TFM rupture disc for PM 60
419-10000013-0 tool kit CX-100 RPM-screw caps
419-5303227-0 Vent-tube set 2 m
419-5303537-0 Vent-tube set 4 m
419-5303508-0 Connecting tube to gas collection system / integrated suction system (without nut)
419-5003279-0 CX 100 Vessel bottom made of TFM
419-5003605-0 Vessel bottom PH 30 made of TFM
419-5003672-0 PL 100 Vessel bottom made of TFM
419-5003447-0 Vessel bottom PM 40 made of TFM
419-5003603-0 Vessel bottom PM 60 made of TFM
419-5303612-0 Weighing cup (2.0 ml, Set of 12 pieces)
419-5302817-0 CX 100 Blind plug for turntable to seal the gas collection system
419-5303566-0 connection fitting for L100, PM60
819-5303955-0 Consumables CX 100 for vessels without pressure control
819-5303953-0 Consumables PL 100
819-5303448-0 Consumables PM 40
819-5303952-0 Consumables PM 60
819-5303965-0 Consumables set CX100 for vessel with pressure control
419-5303284-0 CX 100 ceramic pressure jacket (white-new)
419-5303825-0 Evaporation unit CX 100 evaporation lid
419-5302811-0 Nut for connecting tube to gas collection system/integrated suction system
819-5005055 Neutralisation Unit - for neutralisation of fumes
419-5303563-0 Cap without pressure control for PH 30 / PM 60 / PL 100 vessel made of TFM

Downloads

Title Language Info
Brochure speedwave XPERT (EN) English PDF, 4 MB
Broschüre speedwave XPERT (DE) German PDF, 4 MB
