CyBio FeliX
plus d'imagesOverview
CyBio® FeliX is a flexible pipetting platform for fully automated single- to multichannel liquid handling tasks and can be equipped according to your individual process. The system is adaptable for your upcoming applications at any time.
- most compact liquid handling platform for any lab bench
- Customer swoppable pipetting heads with automatic tip and adapter loading
- 12 deck positions on two levels for microplates, tubes, reservoirs, tips and accessories on the small footprint of 650 x 450 mm
- Precise high parallel 96 or 384 channel pipetting combinable with single channel transfers and pipetting in rows and columns within the unique volume range of 1 µl–1 ml.
Variants

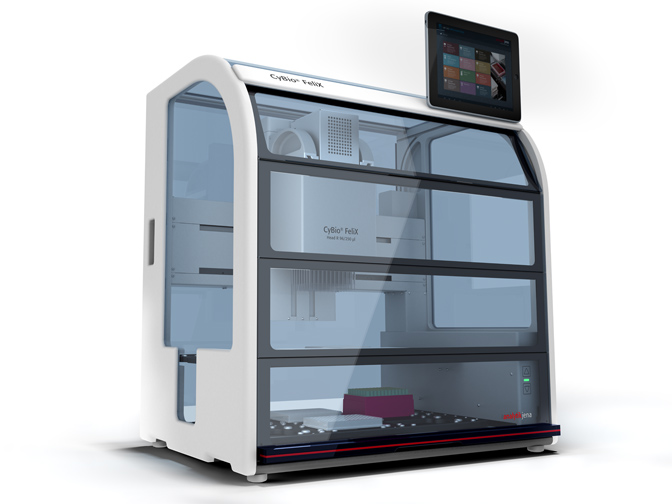

CyBio® FeliX basic unit
Thanks to its compact design and smallest footprint CyBio® FeliX fits perfectly on each lab bench and is very suitable for the daily pipetting routines in your laboratory.

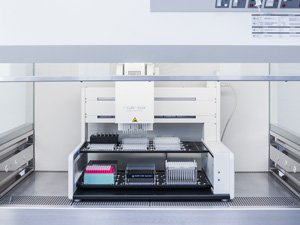

CyBio® FeliX for clean bench
For working in a sterile environment, CyBio® FeliX without housing fits perfectly in an existing clean bench.

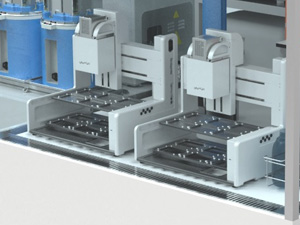

CyBio® FeliX for automation
For the complete automation of your process — also under sterile conditions — our automation team realizes a tailor-made solution according to your needs.
Pipettierköpfe
CHOICE™ Pipetting Head
Patented high format and volume flexibility from single channel transfer to serial dilutions in rows and columns of 96 and 384 well SBS microplates in the volume range from 1-1000 µl.
Pipetting Head R 96/1000 µl
Parallel pipetting of 96 samples or individual wells, rows or columns in the volume range of 10-1000 µl.
Pipetting Head R 96/250 µl
Parallel pipetting of 96 samples or individual wells, rows or columns in the volume range of 5-250 µl.
Pipetting Head R 96/60 µl
Parallel pipetting of 96 samples or individual wells, rows or columns in the volume range of 1-60 µl.
more ... Flyer Head R 96/60 μl for CyBio® FeliX
Pipetting Head R 384/60 µl
Parallel pipetting of 384 samples or individual wells, rows or columns in the volume range of 1-60 µl.
Specifications
Head R 96/1000 µl
Volume range:
10–1000 µl
Specified volume range Precision [CV in %]*:
25-100 µl ≤ 2%
>100-1000 µl ≤ 1%
Head R 96/250 µl
Volume range:
5–250 µl
Specified volume range Precision [CV in %]*:
10-25 µl ≤ 2%
>25-250 µl ≤ 1%
Head R 96/60 µl and R 384/60 µl
Volume range:
1–60 µl
Specified volume range Precision [CV in %]*:
3-5 µl ≤ 2 %
>5-60 µl ≤ 1%
CHOICE™ Head with adapter 10–1000 µl
Volume range:
10–1000 µl
Specified volume range Precision [CV in %]*:
25-100 µl ≤ 2%
>100-1000 µl ≤ 1%
CHOICE™ Head with adapter 1–50 µl
Volume range:
1-50 µl
Specified volume range Precision [CV in %]*:
3-5 µl ≤ 2%
>5-50 µl ≤ 1%
*The specification of precision and trueness is based on the Analytik Jena internal gravimetric and photometric standard measurement procedure, which is published as Annex B7 in the ISO IWA 15 document ” Specification and method for the determination of volumetric performance of automated liquid handling systems“ (www.IWA15.org). The Application Note „Photometric and Gravimetric Liquid Handling Check Procedure to determine the Random Error (Precision) and the Systematic Error (Accuracy) of Automated Liquid Handling Systems (ALHS)“ describes this measuremet procedure in detail.
Every modification of this method may influence the results.
Technical Data
Basic unit (FeliX) | Clean bench (FeliX) | Automation (FeliX) | |
---|---|---|---|
Weight | approx 50 (without Pipetting head) | approx 40 (without Pipetting head) | approx 45 (without Pipetting head) |
Positions | 12 | 12 | 12 |
Pipetting Channels | 1 - 384 | 1 - 384 | 1 - 384 |
Pipetting Tips | Disposable tips | Disposable tips | |
Plate Formats | 24, 96, 384 | 24, 96, 384 | 24, 96, 384 |
Tubes | 0.2 ml – 5.0 ml | 0.2 ml – 5.0 ml | 0.2 ml – 5.0 ml |
Footprint (W x D in mm) | 650 x 450 | 699 x 450 | 876 x 503 |
Height (mm) | 698 | 637 | 668 |
Volume Range | 1 – 1000 µl | 1 – 1000 µl | 1 – 1000 µl |
Software
- Powerful scripting environment
- Direct access to all hardware functions and liquid handling parameters
- Possibility of connecting to databases and LIMS systems
Applications
- Plate replication and reformatting
- Serial dilution in rows and columns
- Cherry picking
- Normalization
- Tube to plate transfer
- DNA extraction and purification
- Next Generation Sequencing (NGS)
- HTRF assay
- ADME and toxicity assays
- ELISA
Accessories
Microplate Gripper
The optional on-deck gripper tool is recognized automatically and can be used for the transport of microplates and plate lids between different deck positions.
Reagent Heating
The heating adapter is the fully automated solution for the incubation and denaturation of reagents within the temperature range of room temperature up to 135 °C.
(more ...)
Thermo Shaker
The BioShake 3000 T-elm plate Thermomixer provides heating combined with patented vibration-free shaking and is only slightly larger than a standard microplate.
(more ...)
UV Decontamination
Ideally for molecular biology or cell applications Decontaminates decks e.g. overnight using UV light.
Microplate adapter
Micro plate adapter allow you to use any type of micro plates of various manufacturers on our devices incl. adapter for specific application requirements.
(more ...)
Automated Reservoir Filling
The reagent reservoirs are designed for the storage and automatically refilling of liquids, such as buffers, DMSO…
(more ...)
Barcode Handling
For creation of barcodes, labeling of microplates as well as reading of barcodes within the process we offer tailor-made solutions.
(more ...)
Tip Wash Station
With the aid of these wash modules, tips in the 96 and 384 format can be washed automatically with pump-supported (active) inflow and drain, which helps you to reduce disposable costs.
(more ...)
Plate Handling and Storage
Efficient microplate storage with stackers enables fully automated processing of large batches of plates and increases your walk-away time.
(more ... Product CyBio Carry)
