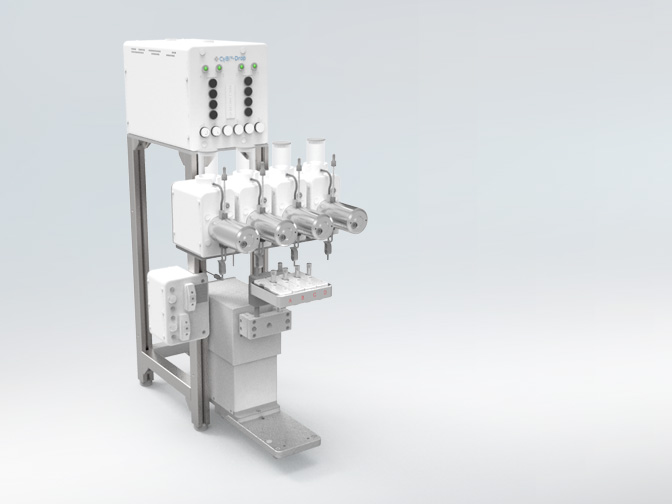

CyBio Drop
Overview
Stress-Free and Homogeneous Dispensing of Cells
Non-contact dispensing of 500 nl to 15 µl per shot. Up to four different reagents can be dispensed precisely and quickly into 96, 384 and 1536 well plates. The patented droplet generator technology ensures excellent performance with a wide range of reagents, buffers, solvents and cell suspensions. The unique cell recirculation guarentees optimal and gentle cell dispensing without settling effects.
- Stress-free and vital cells after dispensing due to the unique cell recirculation option
- Homogeneous cell distribution using the patented droplet generator technology
- Gentle dispensing of reagents onto an adherent cell monolayer due to the possibility to adjust dispensing parameters individually
- Excellent performance of a wide range of liquids due to optimal dispensing technology
- No cross-contamination through contact-free dispensing
Specifications
Standard | Precision (cv in %) |
|---|---|
8-channel dispensing comb: | 0,5 µl < 10% |
1 µl < 5 % | |
5 µl < 2% |
Time to Fill a 384-well Plate | |
|---|---|
at one shot per well | 20 seconds |
Technical Data
| CyBio Drop | |
|---|---|
| Plate Formats | 96 and 384 (1536 optionally available) |
| Number of Reagents | up to 4 |
| Volume Range | 500 nl – 15 µl |
Applications
- Assay set-up and stop of reaction: Dispensing of reagents, enzymes, substrates, inhibitors and buffers
- Dilution of compounds: Dispensing of solvents and buffers
- Plate production: Dispensing of coating reagents
- Dispensing of cell medium and reagents onto an adherent cell monolayer
- Cell seeding
Application | |
|---|---|
Application Reports |
|
| |
| |
Customer Eyaluation of the CyBio® Drop 3D for Screening Applications |
|
Accessories
Dispensing combs
The CyBio® Drop can be equipped with 5 different dispensing combs which enable highest precision and accuracy by dispensing of different liquids.
For the dispensing of cells 2 cell dispensing combs (8-channel and 16-channel) with cell recirculation are avaiable. Both reduce the stress of the cells during dispensing as well as influence the viability and physiology of the cells.
For higher throughput in 384- and 1536-well format, a 16-channel dispensing comb is available.
