novAA 800 Series The Routine Analyzer
- Cost-effective – top performance at low investment and operating costs
- Simple – easy handling thanks to user-friendly concepts
- Reliable – stable measuring conditions due to robust components and clever design
- Powerful – high throughput due to integrated sampling and dilution
novAA 800 is the reliable all-rounder, making routine analysis of diverse samples efficient and cost-effective.
The Efficient Workhorse for Your Lab
novAA 800 is the perfect AAS for routine use in industrial QC laboratories and analytical service providers. It combines versatility, reliability, and automation, making it a highly efficient and cost-effective.
- AAS applications - flame, graphite furnace, and hydride technology – all on one small footprint platform
- Simplest operations with high safety standards thanks to intelligent workflows
- Efficient analysis with a high degree of automation and performance-enhancing accessories
- Reliable with latest SiOSens solid state detector and a 10-year long-term warranty on optical components
Brochures
| Title | Language | Info |
|---|---|---|
| Brochure novAA800 series (DE) | de | PDF, 448 KB |
| Brochure novAA800 series (EN) | en | PDF, 439 KB |
| Produktkatalog Chemische Analyse (DE) | de | PDF, 909 KB |
| Product Guide Chemical Analysis (EN) | en | PDF, 886 KB |
| Flyer Calibration Standard Offering (EN) | en | PDF, 265 KB |
The Reliable Allrounder

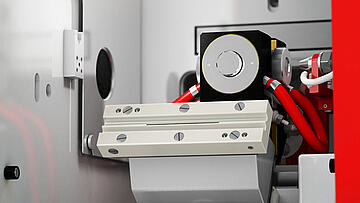

The novAA 800 series is a family of small footprint benchtop atomic absorption spectrometers for highest efficiency in routine analysis. They cover the complete range of AAS applications from elemental contents in %- range up to trace determination. Flame to graphite furnace to hydride mode are combined on one instrumental platform. The dual atomizer concepts with swivel mounted atomizers and automatic alignment simplifies operation. The systems convince with an integrated carousel with RFID reader for 8 coded hollow cathode lamps, deuterium background correction, a proven optical bench in single and double beam mode as well as in emission mode and with the latest SiOSens solid state detector. A wide range of intelligent accessories maximize productivity, safety and ease of use for analytical routines. The combination of clever technology that is made in Germany with pre-programmed software routines offers a very user-friendly overall concept.
- High throughput thanks to integrated sampling and dilution
- Easy handling with user friendly concepts
- High performance at low investment and running cost
- Stable measurement conditions thanks to robust components and a clever design
Products
novAA 800 D - Flame- and Graphite Furnace AAS
AAS for flame, graphite furnace, and hydride technology
The all-rounder with an automatic atomizer change for flame, hydride, and graphite furnace technology, for routine laboratories with changing requirement.
Order number: 812-08002-2
novAA 800 F - Flame AAS
AAS for flame and hydride technology
The flame AAS for the cost-effective and efficient routine analysis of elements across a wide range of applications.
Order number: 812-08000-2
novAA 800 G - Graphite Furnace AAS
AAS for graphite furnace and hydride technology
Cost-effective trace analyzer for recurring measurement tasks.
Order number: 812-08001-2
Applications
Applications
-
Quantification of diverse elements ranging from high levels down to trace range (EN)
Applications
-
Reliable high throughput routine analysis (EN)
-
Determination of Toxic and Eco toxic Elements in Sewage Sludges with Flame (EN)
-
Bestimmung von toxischen und ökotoxischen Elementen in Klärschlamm (DE)
Applications
-
Copper Quantification in Geological Samples by Flame-AAS (EN)
-
Quantification du cuivre dans des échantillons géologiques par SAA flamme (FR)
Technical Data
Light source | Sensitivity | Spectral bandwidth | Wavelength range | Optical design | Detector | Background correction | Wavelength precision | Dimension (width x depth x height) | |
|---|---|---|---|---|---|---|---|---|---|
| novAA 800 D - Flame- and Graphite Furnace AAS | Hollow Cathode Lamps (HCL) | Flame: 0.017 mg/L 1 %Abs (Cu 324) Graphite furnace: 0.79 µg/L 1 %Abs (Pb 283) | 0.2, 0.3, 0.5, 0.8, 1.2 nm | 185-900 nm | Czerny Turner Spectrometer | SiOSens | Deuterium | 0.005 nm | 820 mm x 770 mm x 600 mm |
| novAA 800 F - Flame AAS | Hollow Cathode Lamps (HCL) | Flame: 0.017 mg/L 1 %Abs (Cu 324) | 0.2, 0.3, 0.5, 0.8, 1.2 nm | 185-900 nm | Czerny Turner Spectrometer | SiOSens | Deuterium | 0.005 nm | 820 mm x 770 mm x 600 mm |
| novAA 800 G - Graphite Furnace AAS | Hollow Cathode Lamps (HCL) | Graphite furnace: 0.79 µg/L 1 %Abs (Pb 283) | 0.2, 0.3, 0.5, 0.8, 1.2 nm | 185-900 nm | Czerny Turner Spectrometer | SiOSens | Deuterium | 0.005 nm | 820 mm x 770 mm x 600 mm |
Order Information
Order number | Description |
|---|---|
| 812-08002-2 | novAA 800 D Flame and Graphite Furnace AAS |
| 812-08000-2 | novAA 800 F Flame AAS |
| 812-08001-2 | novAA 800 G Graphite Furnace AAS novAA 800G |
Accessories
Burner head AC (100 mm) for higher sensitivity in the acetylene/ air flame *
Order number: 810-60056-0
Burner head LPG (100 mm) for operation with LPG flame *
Order number: 810-60059-0
Burner head NO/AC (50 mm) for acetylene/nitrous-oxide or acetylene/air flame *
Order number: 810-60057-0

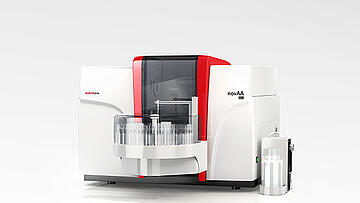

AS-F Autosampler for flame, hydride AAS and CV-AAS/AFS
Standard AAS Autosampler for flame and hydride technology as well as CV-AAS/AFS
Order number: 810-60500-0
AS-FD Autosampler with auto-dilution for flame, hydride AAS and CV-AAS/AFS
Advanced AAS Autosampler with auto-dilution function for flame and hydride technology and CV-AAS/AFS
Order number: 810-60501-0
Sample rack 139 positions for AS-F and AS-FD
Order number: 810-60503-0
Sample rack 54 positions for AS-F and AS-FD
Order number: 810-60502-0
Burner fork - for fast replacement of burner heads
Order number: 810-60058-0
Scraper - for automatic burner head cleaning
Order number: 810-60127-0
Segmented Flow Star SFS 6.0 - switching valve
Order number: 810-60129-0

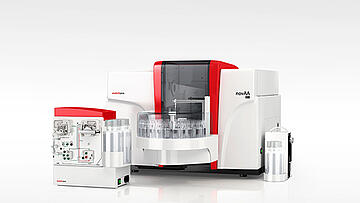

Hg/Hydrid-System HS 55 - Batch mode system for Hg and hydride forming elements
Relaible results even for demanding samples
Order number: 810-60404-2
Hg/Hydride System HS 50 - Manual hydride system with flame heated quartz cell atomizer
Cost-effective Hydride system for simple application
Order number: 810-60149-2

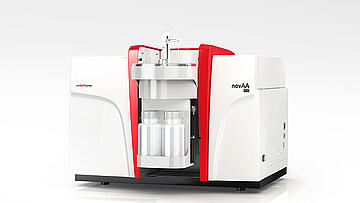

Hg/Hydride System HS 60 - Flow injection system for Hg and hydride forming elements
Fully automated sample handling for high sample troughput in routine work
Order number: 810-60402-2
Air purge kit (APK) for novAA 800 series
Order number: 810-60506-0
Chiller, 50 Hz - Software-controlled cooling system *
Order number: 810-60053-0
Chiller, 60 Hz - Software-controlled cooling system *
Order number: 810-60052-0
Air compressor, 50 Hz - to supply AAS with water- and oil- free compressed air
Order number: 810-60055-0
Air compressor, 60 Hz - to supply AAS with water- and oil- free compressed air
Order number: 810-60253-0
Bench for ICP/AAS for AAS, ICP-OES and ICP-MS instrumentation
Order number: 810-88005-0
* necessary to operate
Software
ASpect LS
Simple, routine handling provided via a single user interface featuring great flexibility – the Aspect LS is a modern and intuitive software with fully automatic device control and extensive data evaluation function. Software functions and modules help to meet all legal requirements and standards.
- Quickstart – no expert knowledge required
- Ready-to-use worksheets for outstanding usability
- Simple methode development
- Comprehensive evaluation function
- Good laboratory practice (GLP): Control charts for statistical quality control along with notifications whenever defined limit values are exceeded – to maintain comprehensive quality
- FDA 21 CFR Part 11 Compliance (optional)
| Product | Required | Included |
|---|---|---|
| novAA 800 D - Flame- and Graphite Furnace AAS (812-08002-2) | ||
| novAA 800 F - Flame AAS (812-08000-2) | ||
| novAA 800 G - Graphite Furnace AAS (812-08001-2) |
FDA 21 CFR Part 11 Compliance for ASpect LS
Order number: 810-60152-0
The ASpect LS software with the FDA 21 CFR Part 11 module fully complies with FDA requirements. User rights management and individual passwords ensure that the system can only be accessed by authorized persons. All important events, such as logon/logoff, measurements, calibrations, and messages generated by the Self Check System, are recorded in the Audit Trail. Measured data can undergo routine review and approval using electronic signatures.
| Product | Required | Included |
|---|---|---|
| novAA 800 D - Flame- and Graphite Furnace AAS (812-08002-2) | ||
| novAA 800 F - Flame AAS (812-08000-2) | ||
| novAA 800 G - Graphite Furnace AAS (812-08001-2) |
Consumables
| Order number | Name |
|---|---|
| 810-60258-0 | Consumable set F for Flame technique novAA/contrAA/ZEEnit series |
| 810-60066-0 | Consumable set G for graphite technique novAA/contrAA |
| 407-A81.020 | Graphite pipetting insert for novAA / contrAA series |
| 407-A81.011 | Graphite tubes - pyrolytically coated |
| 407-A81.025 | Graphitetube with PIN-platform pyrolytically coated |
| 407-A81.021 | Ceramic O-rings for furnace |
| 702-A63.624 | Cleaning strips for flame AAS |
| 702-A63.625 | Cleaning wires for flame AAS |
| 407-111.860 | Impact bead (standard, short) for mixing chamber (black, Ryton)-nebulizer (graphite)-system (III) |
| 407-111.006 | Inlet tube (PTFE), manual work for mixing chamber (black, Ryton)-nebulizer (graphite )-system (III) |
| 407-111.501 | Nebulizer (graphite) for mixing chamber (black, Ryton)-nebulizer (graphite)-system (III) |
| 407-111.402 | Set o-rings organic samples for mixing chamber (black, Ryton)-nebulizer (graphite)-system (III) |
| 407-143.021 | Set sealing rings for mixing chamber (black, Ryton)-nebulizer (graphite)-system (III) |
| 407-111.837 | Waste tube siphon for mixing chamber (black, Ryton)-nebulizer (graphite)-system (III) |
| 810-60508-0 | Consumables Set H for Hydride Systems |
| 810-60082-C | HCL package with 8 coded lamps for all novAA and ZEEnit series |
| 407-1508.108 | Level sensor, organic samples for mixing chamber (black, Ryton)-nebulizer (graphite)-system (III) |
