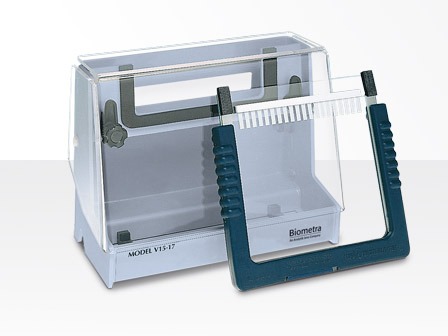

Biometra Model V15·17

Features

Gel size 17 cm x 15 cm (W x L)
Built-in integral clamps hold the gel in place
Fits gels of different thicknesses with straight or notched glass plates

Product Info

Gel Electrophoresis Apparatus for PAGE

The Model V15·17 is designed for vertical gels 17 cm x 15 cm (W x L) for separation of up to 20 samples on a 0.8 mm, 1.5 mm or 3 mm thick gel.

The built-in integral clamps allow easy assembly and hold gels of different thickness leak-free in place. The V15·17 is the system of choice for laboratories with low sample throughput but the need of long running distances or large sample volumes (up to 4,000 µl).

Gel Casting Clamp
The Gel Casting Clamp is sold separately. The silicone clamp is designed to cast a single 17 cm x 15 cm gel and provides leak proof casting.

Order Info

Order number	Item
846-21080023	Model V15·17 Gel Electrophoresis Apparatus, complete with buffer chamber, safety lid, 1 pair of glass plates (1 short glass plate 19.7 cm x 16.0 cm and 1 long glass plate 19.7 cm x 18.5 cm), 1 pair of 1.5 mm thick side spacers, 1 x 1.5 mm thick bottom spacer, and 1 x 20 well comb (1.5 mm thick) (The Gel Casting Clamp is sold separately.)^a

Order number	Accessories and Spare parts
846-21070065	Gel Casting Clamp (Model V15·17, V16, V16-2) (1/Pkg)
846-11074010	Glass Plates (mixed pairs, 16.0 cm x 19.7 cm/18.5 cm x 19.7 cm) (3 Pairs)
846-11098019	Spring Clips (12 Pkg)^a
	Spacer Sets (complete with 1 bottom spacer, 2 side spacers and 2 foam blocks)
846-41077017	0,8 mm thick
846-41077025	1,5 mm thick^a
	Combs, 0.8 mm thick (max. volume/well)**
846-11956026	10 wells (94 µl)^a
846-11956034	12 wells (72 µl)^a
846-11956042	14 wells (59 µl)
846-21076013	20 wells(34 µl)^a
846-11956117	preparative, with 2 marker lanes (1,000 µl)***^a
	Combs, 1.5 mm thick (max. volume/well)**
846-11956059	10 wells (175 µl)^a
846-11956067	12 wells (135 µl)^a
846-11956075	14 wells (110 µl)^a
846-21076021	20 wells (63 µl)^a
846-11956125	preparative, with 2 marker lanes (2,000 µl)***
	Combs, 3.0 mm thick (max. volume / well)**
846-11956083	10 wells (350 µl)^a
846-11956133	preparative, with 2 marker lanes (4,000 µl)***^a
846-11099025	Power Cords (1 pair)
846-11958345	Upper Platinum Wire Replacement
846-11958329	Lower Platinum Wire Replacement^a
846-21960059	Gasket Replacement for V15-17 (with 6 foam blocks)
846-21070057	Spacer Foam Blocks (12/pkg)^a
846-11958352	Gel Clamp Replacement Kit (includes spring, shoulder washer, tab, knob and support ring)
* Volume calculated for an insertion depth of 5 mm
** Volume calculated for an insertion depth of 9 mm
*** Volume of the central preparative well
^aUnder Discontinuation. Sale of remaining stocks.
