Biometra Eco-Mini
plus d'images
Features
- Gel dimensions 9.4 cm x 8.0 cm (W x L)
- 1 to 4 gels
- Applicable for handcast gels and the most common pre-cast gels
- Casting stand for 1 up to 4 gels
- Cooling option (integrated water circulation system)
Product Info
Modular Tank System for Polyacrylamide Gel Electrophoresis and Blotting

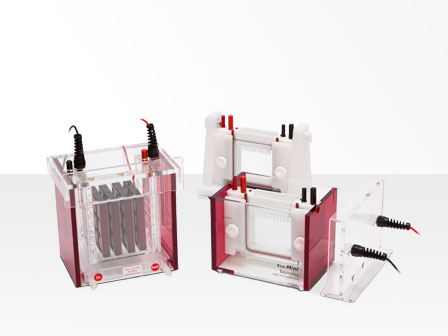

Eco-Mini Electrophoresis System
Eco-Mini is compatible with self-poured gels as well as with the most common pre-cast gels. With the electrophoresis module, glass plates from 10.5 cm to 11.0 cm width and a length up to 11.0 cm may be used. Eco-Mini is compatible with the glass plates of Minigel-Twin.
For electrophoretic separation under controlled temperature conditions the use of the EBC buffer tank with cooling option (integrated water circulation system) is recommended.
The buffer chambers EB (without cooling option) and EBC (with cooling option) are compatible with the Blot Module for Tankblot Eco-Mini. For tank blotting, the use of buffer tank EBC with integrated cooling option is recommended.
The Bigfoot Safety Lid with its specially designed foot allows a space saving and safe storing of the lid when not placed on the buffer tank.
According to customer requirements a lot of special configurations by a large number of additional component parts are possible (i. e. analytical, preparative or microtiter plate compatible combs).
Special designed Divider-Plates (optional available) double gel capacity up to 4 gels by converting single-gel sandwiches into two-gel club sandwiches. The two-gel sandwiches fit into the same Casting Stand and Electrophoresis Module than the single gels.
The Blot Module for Eco-Mini is available separately and will convert the corresponding electrophoresis apparatus into a powerful wet-blotter (does not apply to the Eco-Mini E and Eco-Mini System E).

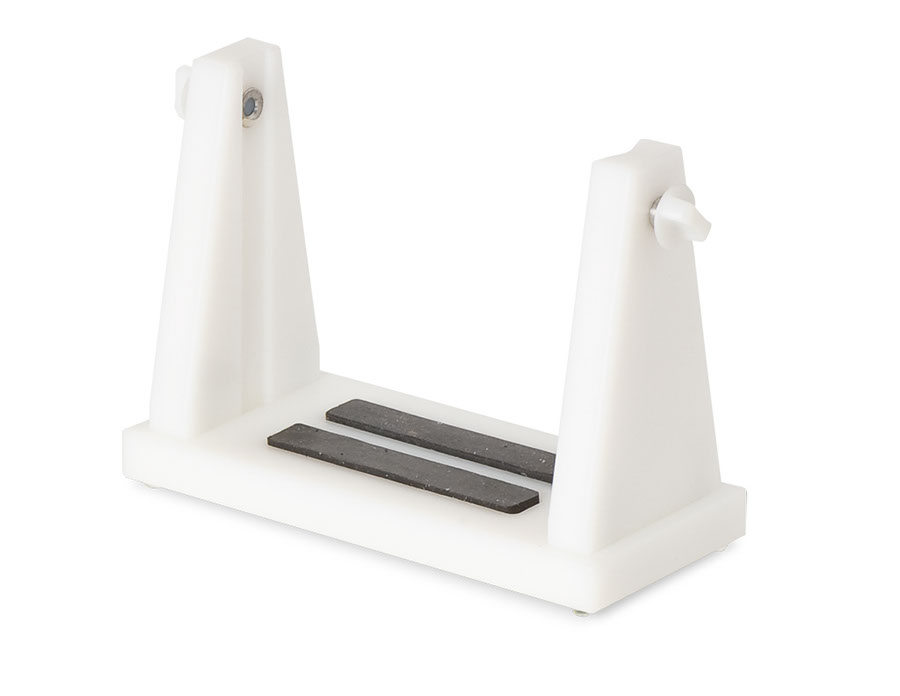

Casting Stand for Eco-Mini
The casting chamber allows an easy, fast and leak-proof assembly for 1 up to 4 single or double glass plates sandwiches. Preliminary, for casting the gels one or two glass plates sandwiches are set into the electrophoresis module and fixed with the side clips. Because the spacers are permanently fixed to one glass plate, the often difficult adjustment of large spacers and glass plate is no longer necessary. In a second step, the electrophoresis module with the glass plates sandwiches is inserted into the specially designed gel casting stand and it is fixed easily and reliable by two eccentric vices. By the use of a unique high-tech material for the gasket in the casting stand and special anti-slip device of the side clips leakage proof is guaranteed.
After polymerisation of the gels, the complete assembly of electrophoresis module and glass plate sandwiches are taken from the casting chamber into the buffer tank for electrophoretic separation. Specially formed slots in the side walls of the buffer tank allow a rapid and safe positioning of the module.
Electrophoresis Module
The Electrophoresis Module is designed for the use of handcast gels as well as for pre-cast gels in plastic cassettes. Common dimensions are 10 x 10 cm or 8 x 10 cm (L x W).
Technical Data
Eco-Mini | |||
|---|---|---|---|
Apparatus dimensions | 21.0 x 15.0 x 22.0 cm (buffer tank E) | ||
Gel size (W x L) | 9.4 x 8.0 cm | ||
Glass plate size (W x L) | 11.0 x 10.0 cm | ||
Number of gels | 1 or 2 | ||
Capacity | max. 15 samples per gel (30 samples total) | ||
Combs | Thickness | Number of Wells | Volume per |
0.75 | 1 prep. + 2 marker lanes | 2 x 25 and 3851 | |
9 MTP comp. | 30 | ||
10 | 33 | ||
12 | 25 | ||
15 | 18 | ||
1.0 | 1 prep. + 2 marker lanes | 2 x 35 and 5151 | |
9 MTP comp. | 43 | ||
10 | 45 | ||
12 | 35 | ||
15 | 25 | ||
1.5 | 1 prep. + 2 marker lanes | 2 x 55 and 7801 | |
9 MTP comp. | 65 | ||
10 | 70 | ||
12 | 55 | ||
15 | 37 | ||
Buffer volume | max. 1,580 ml (buffer tank E) | ||
1Volume of the preparative well | |||
Order Info
Order number | Item |
|---|---|
846-017-100 | Eco-Mini System E, complete system for 2 gels with buffer chamber E (without cooling base), Bigfoot Safety Lid, Electrophoresis Module, 2 glass plates with fixed 1.0 mm spacers, 2 notched glass plates, 1 dummy plate, 2 combs (1.0 mm, 10 well) and Casting Stand. |
846-017-101 | Eco-Mini E, dto., but without Casting Stand |
846-017-102 | Eco-Mini System EB, complete system for 2 gels with buffer chamber (without cooling base), Bigfoot Safety Lid, Electrophoresis Module, 2 glass plates with fixed 1.0 mm spacers, 2 notched glass plates, 1 dummy plate, 2 combs (1.0 mm, 10 wells) and Casting Stand. |
846-017-103 | Eco-Mini EB, dto., but without Casting Stand |
846-017-104 | Eco-Mini System EBC, complete system for 2 gels with buffer chamber (with integrated cooling base), Bigfoot Safety Lid, Electrophoresis Module, 2 glass plates with fixed 1.0 mm spacers, 2 notched glass plates, 1 dummy plate, 2 combs (1.0 mm, 10 wells) and Casting Stand. |
846-017-105 | Eco-Mini EBC, dto., but without Casting Stand |
Order Information Tankblot Eco-Mini see section: Tankblot | |
Accessoires | |
846-017-180 | Casting Stand (two-place), can be upgraded up to 4 gels for Eco-Mini with divider plates |
846-017-120 | Glass plate with fixed spacers, 1.0 mm |
846-017-121 | Glass plate with fixed spacers, 0.75 mm |
846-017-122 | Glass plate with fixed spacers, 1.5 mm |
846-017-125 | Notched glass plate |
846-017-127 | Dummy Plate for running single gels |
Divider-Plates for double gel capacity | |
846-017-183 | Divider-Plate with fixed spacers, 1.0 mm |
846-017-184 | Divider-Plate with fixed spacers, 0.75 mm |
846-017-185 | Divider-Plate with fixed spacers, 1.5 mm |
Divider-Plate Sets (2 Divider-Plates and 2 combs, 10 wells) | |
846-017-187 | Divider-Plate Set, 1.0 mm |
846-017-188 | Divider-Plate Set, 0.75 mm |
846-017-189 | Divider-Plate Set, 1.5 mm |
Order number | accessories | |
|---|---|---|
Combs, 0.75 mm thick | (max. volume/well) | |
846-017-130 | 9 wells, multichannel pipet compatible | 30 |
846-017-131 | 10 wells | 33 |
846-017-132 | 12 wells | 25 |
846-017-133 | 15 wells | 18 |
846-017-134 | preparative, with 2 marker lanes | 2 × 25 and 385 |
Combs, 1.0 mm thick | (max. volume/well) | |
846-017-140 | 9 wells, multichannel pipet compatible | 43 |
846-017-141 | 10 wells | 45 |
846-017-142 | 12 wells | 35 |
846-017-143 | 15 wells | 25 |
846-017-144 | preparative, with 2 marker lanes | 2 × 35 and 515 |
Combs, 1.5 mm thick | (max. volume/well) | |
846-017-150 | 9 wells, multichannel pipet compatible | 65 |
846-017-151 | 10 wells | 70 |
846-017-152 | 12 wells | 55 |
846-017-153 | 15 wells | 37 |
846-017-154 | preparative, with 2 marker lanes | 2 × 55 and 780 |
846-017-169 | Buffer chamber E (without cooling base) for | |
846-017-170 | Buffer chamber EB (without cooling base) for | |
846-017-171 | Buffer chamber EBC (with integrated cooling base) for Eco-Mini and Tankblot Eco-Mini, without Bigfoot Safety Lid | |
846-017-172 | Bigfoot Safety Lid, with cables and safety plugs | |
846-017-175 | Electrophoresis Module for Eco-Mini (2 gels) | |
846-018-105 | Blot Module for Eco-Mini (4 Blotting Cassettes) | |
846-010-019 | Rotary Table for twin-chambers (Minigel-Twin, Mini-V8.10, Eco-Mini family, Multigel and Multigel-Long) | |
