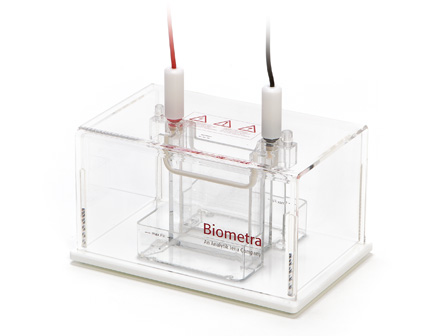

Biometra Minigel-Twin
Features
- Leak-free sealing system (profiled silicone rubber seal)
- Fixed glass spacers
- Easy handling
- High sample resolution
- Short running times
Product Info
Minigel-Twin
- Gel dimensions: 8.6 cm x 7.7 cm (W x L)
- Double-gel system
During electrophoresis the inner glass plate is in tight contact with the upper buffer reservoir for effi cient heat removal and smile-free runs.
Twin-gel system with optimised design that allows separation of up to 56 samples in one run.
One or two gel operation is possible.
Pre-cast gels
8 cm x 10 cm or 10 x 10 cm PAGE gels from most suppliers fit in Minigel-Twin.
Gel Casting Stand
The Gel Casting Stand is a useful accessory for Minigel-Twin that allows
the casting of up to 5 single gels. The special design of the housing allows easy tilting to bring the gel sandwiches to an angle of 45° for the pouring process. This allows the gel solution to run slowly along one side of the plate sandwich to avoid air bubbles. After pouring the gels the casting stand has to be turned back to bring the gel sandwiches into vertical position for polymerisation.
Minigel Glass Plate Stand
In the Minigel Glass Plate Stand up to 6 separate glass plates or sets of glass plates for Minigel-Twin can be stored. Additional the Glass Plate Stand is the system of choice for drying of glass plates after cleaning. This stand is not designed for gel casting.
Rotary Table
The Rotary Table for Twin-chambers allows easy sample loading by turning the whole chamber. The table fits to Minigel-Twin, Mini-V8.10, Eco-Mini family, Multigel and Multigel-Long.
Technical Data
Minigel-Twin | |||
|---|---|---|---|
Apparatus dimensions | 23.6 x 16.0 x 18.2 cm | ||
Gel size (W x L) | 8.6 x 7.7 cm | ||
Glass plate size (W x L) | 10.5 x 9.8 cm | ||
Number of gels | 1 or 2 | ||
Capacity | max. 28 samples per gel | ||
Combs | Thickness | Number of Wells | Volume per Well |
0.6 | 1 prep. (without marker lane) | 2401 | |
1 prep. + 2 marker lanes | 18 and 2301 | ||
1 prep. + 2 marker lanes | 2 x 15 and 210 | ||
5 | 40 | ||
10 prep. | 35 | ||
10 | 15 | ||
16 | 10 | ||
20 | 9 | ||
1.0 | 1 prep. (without marker lane) | 450 | |
1 prep. (without marker lane) | 400 | ||
1 prep. + 1 marker lane | 30 and 3801 | ||
1 prep. + 2 marker lanes | 2 x 25 and 3501 | ||
5 | 70 | ||
10 prep. | 60 | ||
10 | 25 | ||
16 | 10 | ||
20 | 15 | ||
28 | 8 | ||
Buffer volume | 260 ml (upper buffer chamber) + 2 x 90 (lower buffer chambers) | ||
1Volume of the preparative well | |||
Order Info
Order number | Item |
|---|---|
Minigel Systems | |
846-010-100 | Minigel-Twin, complete system with 2 sets of glass plates with fixed 1 mm spacers, 2 silicone rubber seals, 2 combs (10 wells) and 2 sets of clips (6 pcs) |
846-010-140 | Minigel-Twin, dto., but with fixed 0.6 mm spacers |
846-010-130 | Minigel-Twin, buffer chamber and safety lid; without accessories |
Order number | Accessories |
|---|---|
846-010-001 | Glass plate with fixed spacers, 1.0 mm |
846-010-002 | Glass plate with fixed spacers, 0.6 mm |
846-010-003 | Notched glass plate with straight edge |
846-010-004 | Notched glass plate with inclined edge |
846-010-055 | Silicone rubber seal, 1.0 mm (2 pcs) |
846-010-056 | Silicone rubber seal, 0.6 mm (2 pcs) |
846-010-058 | Grey seal to be attached to the main chamber (4 pcs) |
846-010-057 | Clips (6 pcs) |
Combs, 1.0 mm thick (max. volume/well) | |
846-010-010 | 5 wells (70 µl) |
846-010-011 | 10 wells (25 µl) |
846-010-023 | 10 wells, for big volumes and high protein concentrations (60 µl) |
846-014-017 | 16 wells (20 µl) |
846-010-012 | 20 wells (15 µl) |
846-014-019 | 28 wells (8 µl) |
846-010-008 | preparative, without marker lane (400 µl) |
846-014-023 | preparative, without marker lane (450 µl) |
846-010-022 | preparative, with marker lane (30 µl und 380 µl) |
846-010-009 | preparative, with 2 marker lanes (2 × 25 µl und 350 µl) |
Combs, 0.6 mm thick (max. volume/well) | |
846-010-015 | 5 wells (40 µl) |
846-010-016 | 10 wells (15 µl) |
846-010-024 | 10 wells, for big volumes and high protein concentrations (35 µl) |
846-014-018 | 16 wells (10 µl) |
846-010-020 | 20 wells (9 µl) |
846-010-013 | preparative, without marker lane (240 µl) |
846-010-021 | preparative, with 1 marker lane (18 µl and 230 µl) |
846-010-014 | preparative, with 2 marker lanes (2 × 15 µl and 210 µl) |
Further Accessories | |
846-010-018 | Minigel Glass Plate Stand (for Minigel and Minigel-Twin) |
846-010-032 | Gel Casting Stand for up to 5 mini-gels |
846-010-019 | Rotary Table for twin-chambers (Minigel-Twin, Mini-V8·10, Eco-Mini, Multigel, Multigel-Long, Model V16-2) |
