qTOWER³ Series Your Way of qPCR
- Powerful – ideal real-time PCR signals
- Comfortable – easier and universal operating concept
- Unrivalled – fast and precise results
- Ready for the future – maximum flexibility
The qTOWER³ product family guarantees well-founded real-time results as it benefits from peerless temperature control precision in the sample block regardless of the number of samples used. The patented high-performance optics guarantee the outstanding homogeneous excitation and illumination of all individual samples. The qTOWER³ product family achieves unique flexibility with its proven, free configured and expandable filter module equipment and enables up to six-fold multiplexing.
The Top Performer Among real-time PCR Thermal Cyclers
Do you rely on low operating costs, fast analysis times, and obtaining the best results – all at a high sample volume? Our qTOWER³ product portfolio raises your real-time PCR workflow to the next level. Reduce your number of repeat analyses, increase your analysis speed, and significantly reduce your cost per sample in the process. The qTOWER³ thermal cycler also provides you with state-of-the-art heating technology and temperature homogeneity, which is immediately reflected in more accurate results.
- Patented fiber optic system ensures maximum experimental reproducibility in all block positions
- Innovative sample block technology for the best thermal well-to-well uniformity
- Expandable filter module system for maximum flexibility
- qPCRsoft package for easy control and operation
Brochures
| Title | Language | Info |
|---|---|---|
| From Farm to Fork - From Sample to Result. innuDETECT Food Analysis Solutions (EN) | en | PDF, 1 MB |
| Brochure Product Guide Life Science (EN) | en | PDF, 2 MB |
| Br_qTOWER³_family_001_de | de | PDF, 2 MB |
| Br_qTOWER³_family_001_en | en | PDF, 2 MB |
| Coronavirus - Overview On SARS-CoV-2 Detection Workflow For Research Use (EN) | en | PDF, 2 MB |
| Biosurveillance in Wastewater (EN) | en | PDF, 255 KB |
| Überwachung biologischer Parameter in Abwässern (DE) | de | PDF, 259 KB |
Outstanding Performance – qTOWER³
The qTOWER³ product family guarantees well-founded real-time results as it benefits from peerless temperature control precision in the sample block regardless of the number of samples used – the number of samples can range from 96 up to 384. The patented high-performance optics guarantee the outstanding homogeneous excitation and illumination of all individual samples. The qTOWER³ product family achieves unique flexibility with its proven filter module equipment, which can be freely configured and expanded at any time, and enables up to six-fold multiplexing. The patented fiber-optic shuttle system with its unique light source, composed of four high-performance LEDs, guarantees the ideal excitation of known fluorescent dyes up to the deep red range. In the process, the detection module can accept up to six different color filter modules. The retrofitting option ensures that users can also integrate future innovative developments from Analytik Jena.
The proven silver block technology of the qPCR cycler offers outstanding control precision of ± 0.1 °C over the entire 96 well block in 0.2 mL format. Thanks to the gradient function, the device can be optimally adapted to new assays. The qTOWER³ is available either as a stand-alone device with integrated touchscreen operation (10“) or as a computer-aided system. The software contains a broad spectrum of optimized analysis algorithms, including absolute and relative quantification, ddCt method, PCR efficiency, allelic discrimination, end-point detection, and melting curve and protein analysis. With steadily growing sample volumes and new options for molecular biology experiments, the requirements for quantitative real-time PCR are changing. The transition to the multiwell format with 384 samples opens up new application areas in gene expression, mutation analysis, and diagnostics.
The qTOWER³ 84 includes all of the strengths of the qTOWER³ product family and transfers its precise performance to the 384 well high-throughput format. The proven high-performance optics have been expanded to 16 fibers and enable an ultra-fast read-out time of just 6 seconds for a complete 348 well plate – regardless of the number of filters used.
Products
qTOWER³ (230 V), incl. color module 1
The qTOWER³ is a high-performance systems for standard applications using real-time PCR. It achieves, with its proven, freely configurable, and expandable filter module equipment unique flexibility. It is available as 100 V, 115 V and 230 V version.
Order number: 844-00553-2
qTOWER³ 84 (230 V), incl. color module 1
The qTOWER³ 84 brings the benefits of proven Biometra thermal cycler technology and Analytik Jena's patented fiber optic system into the realm of high-throughput qPCR applications. It is available as 100 V, 115 V and 230 V version.
Order number: 844-00558-2
qTOWER³ 84 G (230 V), incl. color module 1
The qTOWER³ 84 brings the benefits of proven Biometra thermal cycler technology and Analytik Jena's patented fiber optic system into the realm of high-throughput qPCR applications. It is available as 100 V, 115 V and 230 V version.
Order number: 844-00559-2
qTOWER³ G (230 V), incl. color module 1
The qTOWER³ is a high-performance systems for standard applications using real-time PCR. It achieves, with its proven, freely configurable, and expandable filter module equipment unique flexibility. It is available as 100 V, 115 V and 230 V version.
Order number: 844-00554-2

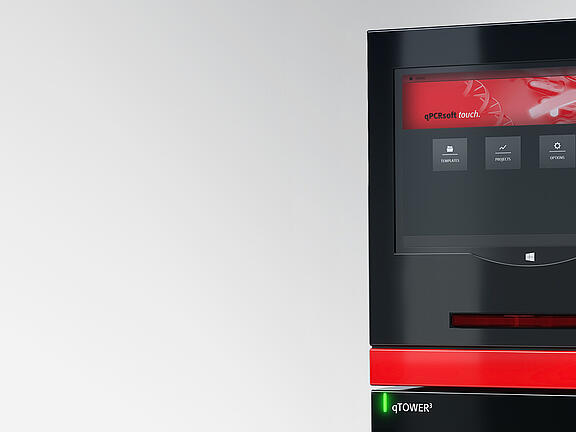

qTOWER³ G touch (230 V), incl. color module 1
The qTOWER³ touch is a modern stand-alone system that does not require any external control. The integrated 10“ tablet allows a effortless operation guiding the operator through set-up and protocols. It is available as 100 V, 115 V and 230 V version.
Order number: 844-00556-2
qTOWER³ touch (230 V), incl. color module 1
The qTOWER³ touch is a modern stand-alone system that does not require any external control. The integrated 10“ tablet allows an effortless operation, guiding the operator through set-up and protocols. It is available as 100 V, 115 V and 230 V version.
Order number: 844-00555-2
Applications
Applications
-
Precise and Robust Determination of Porcine DNA in Food Samples
-
Automated DNA Extraction and Species Analysis from Cheese
-
Detection of Mastitis Pathogens in Raw Milk of Symptomatic Cows (EN)
-
Convincing Performance of the innuDETECT Fish Assay
Applications
-
Automated DNA Extraction and Species Analysis from Cheese
-
Comparison of Real-time Signals using White or Clear Microplates (EN)
-
Highest precision with 1.5-fold discrimination for qPCR quantification applications (EN)
-
Detection of Mastitis Pathogens in Raw Milk of Symptomatic Cows (EN)
-
Thermal Shift Assay using SYPRO® Orange to Detect Protein Melting Temperatures (EN)
-
Real-time PCR to Measure Minute Volumes in High Throughput (EN)
-
Kompletter PCR-basierter Workflow zum Nachweis von SARS-CoV-2 in Abwasser (DE)
-
Automated solution for Real-time based applications with high reproducibility and accuracy (EN)
Applications
-
Extraction and Detection of Legionella DNA From Cooling Tower Water Samples Using InnuPure C16 touch and qTOWER³ (EN)
-
Extraktion und Nachweis von Legionella DNA aus Wasserproben aus Kühltürmen mit Hilfe des InnuPure C16 touch und qTOWER3 (DE)
-
Complete PCR-based Detection Workflow of SARS-CoV-2 in Wastewater (EN)
-
Kompletter PCR-basierter Workflow zum Nachweis von SARS-CoV-2 in Abwasser (DE)
-
Automated solution for Real-time based applications with high reproducibility and accuracy (EN)
Applications
-
Automated solution for Real-time based applications with high reproducibility and accuracy (EN)
Technical Data
Sample Block | Block capacity | Proposed sample volume | Maximum Heating | Average Heating | Dimension (width x depth x height) | Maximum Cooling | Average Cooling | Block exchange | Tempering method | Standby temperature | Temperature control mode | Adjustable temperature range | Temperature control accuracy | Space requirement (width x depth x height) | Lid temperature | Contact pressure | Time increment | Temperature increment/decrement | Memory capacity | Temperature uniformity | Gradient | Max./Min. gradient | Adjustable gradient range | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| qTOWER³ (230 V), incl. color module 1 | Silver sample block with gold coating | 96 well á 0.2 ml for 96 x 0.2 ml tubes, 96 well microplates or 12x 8 well strips 0.2 ml | 5 - 100 µL | 8 °C/s | 7 °C/s | 275 mm x 275 mm x 585 mm | 6 °C/s | 5.5 °C/s | No | High-power peltier elements | 4 °C | Block control | 4 - 99 °C | ± 0.1 °C | 275 mm x 500 mm x 700 mm | 30 - 110 °C | 30 kg | 1 - 240 s/cycle | ± 0.1 - 20 °C/cycle | Not limited on PC | ||||
| qTOWER³ 84 (230 V), incl. color module 1 | Aluminium, special alloy | 384 well | 2 - 30 µL | 4 °C/s | 3.7 °C/s | 275 mm x 275 mm x 585 mm | 2 °C/s | 1.7 °C/s | No | High-power peltier elements | Yes, down to 4 °C | Block control | 4 - 99 °C | ± 0.1 °C | 275 mm x 500 mm x 700 mm | 30 - 110 °C | 30 kg | 1 - 240 s/cycle | ± 0.1 °C to 20 °C/cycle | Not limited on PC | 55 °C ± 0.15 °C after 15 sec | |||
| qTOWER³ 84 G (230 V), incl. color module 1 | Aluminium, special alloy | 384 well | 2 - 30 µL | 4 °C/s | 3.7 °C/s | 275 mm x 275 mm x 585 mm | 2 °C/s | 1.7 °C/s | No | High-power peltier elements | Yes, down to 4 °C | Block control | 4 - 99 °C | ± 0.1 °C | 275 mm x 500 mm x 700 mm | 30 - 110 °C | 30 kg | 1 - 240 s/cycle | ± 0.1 °C to 20 °C/cycle | Not limited on PC | 55 °C ± 0.15 °C after 15 sec | Linear Gradient Tool | 24 °C / 0.1 °C | 24 columns: 4 °C - 99 °C |
| qTOWER³ G (230 V), incl. color module 1 | Silver sample block with gold coating | 96 well á 0.2 ml for 96 x 0.2 ml tubes, 96 well microplates or 12x 8 well strips 0.2 ml | 5 - 100 µL | 8 °C/s | 7 °C/s | 275 mm x 275 mm x 585 mm | 6 °C/s | 5.5 °C/s | No | High-power peltier elements | Yes, down to 4 °C | Block control | 4 - 99 °C | ± 0.1 °C | 275 mm x 500 mm x 700 mm | 30 - 110 °C | 30 kg | 1 - 240 s/cycle | ±0.1 °C - 20 °C/cycle | Not limited on PC | 55 °C ± 0.15 °C after 15 sec | Linear Gradient Tool | 40 °C / 0.1 °C | 12 columns: 4 °C - 99 °C |
| qTOWER³ G touch (230 V), incl. color module 1 | Silver sample block with gold coating | 96 well á 0.2 ml for 96 x 0.2 ml tubes, 96 well microplates or 12x 8 well strips 0.2 ml | 5 - 100 µL | 8 °C/s | 7 °C/s | 275 mm x 275 mm x 585 mm | 6 °C/s | 5.5 °C/s | No | High-power peltier elements | Yes, down to 4 °C | Block control | 4 - 99 °C | ± 0.1 °C | 275 mm x 500 mm x 700 mm | 30 - 110 °C | 30 kg | 1 - 240 s/cycle | ±0.1 °C - 20 °C/cycle | Not limited on PC | Linear Gradient Tool | 40 °C / 0.1 °C | 12 columns: 4 °C - 99 °C | |
| qTOWER³ touch (230 V), incl. color module 1 | Silver sample block with gold coating | 96 well á 0.2 ml for 96 x 0.2 ml tubes, 96 well microplates or 12x 8 well strips 0.2 ml | 5 - 100 µL | 8 °C/s | 7 °C/s | 275 mm x 275 mm x 585 mm | 6 °C/s | 5.5 °C/s | No | High-power peltier elements | 4 °C | Block control | 4 - 99 °C | ± 0.1 °C | 275 mm x 500 mm x 700 mm | 30 - 110 °C | 30 kg | 1 - 240 s/cycle | ± 0.1 - 20 °C/cycle | Not limited on PC |
Order Information
Order number | Description |
|---|---|
| 844-00553-2 | qTOWER³ (230 V), incl. color module 1 |
| 844-00558-2 | qTOWER³ 84 (230 V), incl. color module 1 |
| 844-00559-2 | qTOWER³ 84 G (230 V), incl. color module 1 |
| 844-00554-2 | qTOWER³ G (230 V), incl. color module 1 |
| 844-00556-2 | qTOWER³ G touch (230 V), incl. color module 1 |
| 844-00555-2 | qTOWER³ touch (230 V), incl. color module 1 |
"Functionality like a swiss army knife. Usability like a T.V. set. Design like from 'Bones' McCoy in Star Trek. That's the qTOWER³ for us. We're using it daily with pleasure."
Boris Fahrnberger, CEO COVID Fighters by Artichoke Computing GmbH
"We have been using the qTOWER³ G for quantifying virus genes, including SARS-CoV-2, in various environmental water samples. Regardless of the sample matrix, low concentrations of genes could be detected. The reproducibility of the results is fine. Owing to its efficient ramp rate, the reaction proceeds quickly. Filters for various fluorescent dyes are available and can be installed afterwards. Such flexibility is also fine."
Dr. Akihiko Hata, Toyama Prefectural University, Japan
Technology Highlights

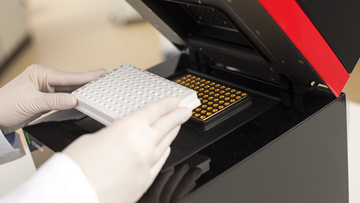

Superior temperature performance by proven block technology
The sample block forms the basis for the reliable performance of quantitative real-time PCR analysis. Powered by proven Biometra block technology, high quality block materials and advanced Peltier technology provide unsurpassed temperature control accuracy and excellent temperature uniformity across the qTOWER³ sample block for either 96 or up to 384 samples. This not only provides excellent data accuracy, but shortens the run times of qPCR programs, contributing to complete user confidence. To ensure highest specificity for different assays, the instrument is equipped with a gradient function. Depending on the cycler model, the temperature gradient function allows the evaluation of 12 or 24 annealing temperatures to determine the best reaction conditions for multiple primer sets in a single run to ensure efficient specific amplification of all targets.
- Excellent temperature uniformity across the entire sample block
- Exceptional heating and cooling rates for faster cycling times
- Advanced gradient tool allows a temperature spread of 40 °C/24 °C to evaluate 12 to 24 annealing temperatures in a single run
- Easy transfer of results thanks to largely linear temperature steps from column to column
Continuously unambiguous results through patented fiber optic system
In the application area of quantitative real-time PCR, a wide range of fluorescent dyes with different characteristics are used. In order to achieve an excellent data quality of fluorescent measurements, the qTOWER³ family is equipped with a patented fiber optic detection system (FOS – fiber-optic system). The 8 or 16 optical fibers provide homogeneous illumination and read-out of each individual well for exact, meaningful results. A novel (RGBW) light source in combination with a sensitive Photo-multiplier tube (PMT) detector and a finely tuned set of excitation and emission filters guarantees optimized excitation for each individual sample while detecting the emitted fluorescent signals with extraordinary homogeneity. The ability to change or retrofit color modules increases the flexibility in the choice of fluorescent dyes that can be used to perfectly meet your current and future requirements for multiplex applications.
- Patented fiber optics guarantees homogeneous illumination of each individual well
- No edge effects – no need for a passive reference needed
- Enhanced multi-target detection capabilities for up to six targets
- Color modules can be upgraded/expanded
- Calibration free optical unit
- Broad dynamic range
Accessories
Color module 1 (FAM, SybrGreen, Alexa 488)
Order number: 844-00520-0
Color module 2 (JOE, HEX, VIC, YakimaYellow)
Order number: 844-00521-0
Color module 3 (TAMRA, DFO, Alexa 546, NED)
Order number: 844-00522-0
Color module 4 (ROX, TexasRed, Cy3,5)
Order number: 844-00523-0
Color module 5 (Cy5, Alexa633, Quasar670)
Order number: 844-00524-0
Color module 6 (Cy5.5®, LightCycler Red®705, Alexa680®)
Order number: 844-00525-0
Color modul protein 1 (SyproOrange)
Order number: 844-00530-0
FRET module 1 - FAM (Donor) / TAMRA (Acceptor)
Order number: 844-00526-0
FRET module 2 - FAM (Donor) / Cy5 (Acceptor)
Order number: 844-00527-0
FRET module 3 - FAM (Donor) / Cy5.5 (Acceptor)
Order number: 844-00528-0
FRET module 4 - JOE (Donor) / Cy5 (Acceptor)
Order number: 844-00529-0
FRET module 5 - FAM (Donor) / ROX (Acceptor)
Order number: 844-00531-0
Software
qPCRsoft
The qPCRsoft, our real-time PCR control and evaluation software, provides you with intuitive controls and automated evaluation in a flexible and user-friendly system. The software works automatically, providing a multitude of operations, such as the threshold calculation for the determination of Ct values, standard curves, PCR efficiencies, and advanced evaluation methods. Your ease of use is our priority.
- Fast and powerful analysis
- Exceptionally wide range of methods
- Various data transfer options
- 21 CFR part 11 compliant (optional)
| Product | Required | Included |
|---|---|---|
| qTOWER³ (230 V), incl. color module 1 (844-00553-2) | ||
| qTOWER³ G (230 V), incl. color module 1 (844-00554-2) | ||
| qTOWER³ G touch (230 V), incl. color module 1 (844-00556-2) | ||
| qTOWER³ touch (230 V), incl. color module 1 (844-00555-2) |
qPCRsoft 384
The qPCRsoft 384, our real-time PCR control and evaluation software, provides you with intuitive controls and automated evaluation in a flexible and user-friendly system. The software works automatically, providing a multitude of operations, such as the threshold calculation for the determination of Ct values, standard curves, PCR efficiencies, and advanced evaluation methods. Your ease of use is our priority.
- Fast and powerful analysis
- Exceptionally wide range of methods
- Various data transfer options
- 21 CFR part 11 compliant (optional)
| Product | Required | Included |
|---|---|---|
| qTOWER³ 84 (230 V), incl. color module 1 (844-00558-2) | ||
| qTOWER³ 84 G (230 V), incl. color module 1 (844-00559-2) |
FDA 21 CFR part 11 Compliance module for software of qTOWER³ family
Order number: 844-00702-9
This software module for the qTOWER³ family supports compliance with 21 CFR Part 11 FDA guidelines for electronic data security. The fee-based license is a single-user license and can be activated separately.
Key features are:
- Advanced settings for user management
- Audit Trail
- Electronic Signature
| Product | Required | Included |
|---|---|---|
| qTOWER³ (230 V), incl. color module 1 (844-00553-2) | ||
| qTOWER³ 84 (230 V), incl. color module 1 (844-00558-2) | ||
| qTOWER³ 84 G (230 V), incl. color module 1 (844-00559-2) | ||
| qTOWER³ G (230 V), incl. color module 1 (844-00554-2) | ||
| qTOWER³ G touch (230 V), incl. color module 1 (844-00556-2) | ||
| qTOWER³ touch (230 V), incl. color module 1 (844-00555-2) |
Consumables
| Order number | Name |
|---|---|
| 844-70086-12D | 8 Well Strip (0.2 mL; HP), white, without lid - 12 pcs |
| 844-70086-0 | 8 Well Strip (0.2 mL; HP), white, without lid - 120 pcs |
| 844-70087-12D | Optical 8 Well Lid Chain, transparent, flat - 12 pcs |
| 844-70087-0 | Optical 8 Well Lid Chain, transparent, flat - 120 pcs |
| 844-70036-10D | 96 Well PCR Plate (0.2 mL; HP), non-skirted, white - 10 pcs |
| 844-70036-0 | 96 Well PCR Plate (0.2 mL; HP), non-skirted, white - 100 pcs |
| 844-70037-5D | 96 Well PCR Plate (0.2 mL; HP), half-skirted, white - 5 pcs |
| 844-70037-0 | 96 Well PCR Plate (0.2 mL; HP), half-skirted, white - 100 pcs |
| 844-70038-10S | 96 Well PCR Plate (0.2 mL; LP), full-skirted, white - 10 pcs |
| 844-70038-S | 96 Well PCR Plate (0.2 ml; LP), full-skirted, white - 100 pcs |
| 844-70045-5D | Optical sealing foil (77 x 140 mm) adhesive, transparent, peelable - 5 pcs |
| 844-70045-0 | Optical sealing foil (77 x 140 mm), adhesive, transparent, peelable - 100 pcs |
| 844-70046-10D | Optical sealing foil (77 x 140 mm) adhesive, transparent, peelable, ATP-free - 10 pcs |
| 844-70046-0 | Optical sealing foil (77 x 140 mm) adhesive, transparent, peelable, ATP-free - 100 pcs |
| 846-050-258-5D | Optical sealing foil (77 x 140 mm), for 96 well (q)PCR plates, adhesive, peelable - 5 pcs |
| 846-050-258 | Optical sealing foil (77 x 140 mm), for 96 well (q)PCR plates, adhesive, peelable - 100 pcs |
| 847-0212000501 | qPCR Color Compensation Kit - 12 reactions |
Related Products
SpeedMill PLUS Series
The SpeedMill PLUS is a highly efficient homogenization system for various starting materials used for the subsequent isolation and purification of DNA, RNA or proteins.
ScanDrop² Series
Efficient, robust and highly flexible UV/Vis spectrophotometer for scalable throughput in micro-volume or standard measurements. Small footprint and easy operation device for stand-alone or external operation.
InnuPure C16 touch
The InnuPure C16 touch combines high-precision liquid handling with the automated extraction of high-quality nucleic acids.
Biometra TAdvanced Series
The flexible high-quality thermal cycler with block quick-change system and 12 different block modules
Downloads
| Title | Language | Info |
|---|---|---|
| Biosurveillance in Wastewater (EN) | English | PDF, 255 KB |
| Br_qTOWER³_family_001_de | German | PDF, 2 MB |
| Br_qTOWER³_family_001_en | English | PDF, 2 MB |
| Brochure Product Guide Life Science (EN) | English | PDF, 2 MB |
| Coronavirus - Overview On SARS-CoV-2 Detection Workflow For Research Use (EN) | English | PDF, 2 MB |
| From Farm to Fork - From Sample to Result. innuDETECT Food Analysis Solutions (EN) | English | PDF, 1 MB |
| Operating Manual qTOWER³ (EN-US) | English | PDF, 1 MB |
| Operating Manual qTOWER³ (ES) | Spanish | PDF, 1 MB |
| Operating Manual qTOWER³ 84 (DE) | German | PDF, 32 MB |
| Technical Data qTOWER3 (EN) | English | PDF, 228 KB |
| Technische Daten qTOWER3 (DE) | German | PDF, 230 KB |
| TechNote qTower3 SARS-CoV-2 (EN) | English | PDF, 349 KB |
| TechNote qTOWER3 Volume Independence (EN) | English | PDF, 180 KB |
| Überwachung biologischer Parameter in Abwässern (DE) | German | PDF, 259 KB |
