EA Gas Sampler Series Gain competitve advantage by cost-effective, reliable, highly sensitive gas analysis

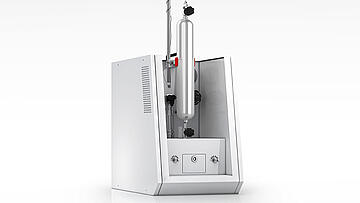

GSS/LPG Combi Module

2-in-1 combination of LPG and pressurized gas sampling system. Suitable for liquefied pressurized gases (LPG, LNG, CNG) with pressures up to 18 bar (LPG branch) and pressurized gases up to 200 bar (GSS branch)

• Free selectable sample volumes up to 50 μL (LPG), up to 20 mL (gas)
• Two separate sample branches for LPG and GSS to prevent cross contamination
• High performance technology – automatic flow control, integrated particle filters
• Cooled sampling valve for LPG dosing – prevents too early evaporation, deflagration and scattering analysis results
• Loop technology for direct dosing of pressurized gases
• Multiple dosing to cover wide concentration range
• Heated evaporation chamber preventing samle loss

GSS Module

Suitable for non-pressurized gases (ambient pressure) and with GSS adapter box for pressurized gases (up to 200 bar)

• Free selectable sample volumes up to 100 mL, variable in 1 mL steps
• Maintenance-free, automatic system rinse (prevention of memory effects)
• SilcoNert™ coating – prevention of adsorption loss
• Sample supply via gas bags (Tedlar™) or gas bludders
• Optional GSS adapter box for direct connection of pressurized gas cylinders

LPG 2.0 Module

For direct dosing of liquefied pressurized gases (LPG) with pressures up to 35 bar.

• Free selectable sample volumes up to 50 μL in 1 µL steps
• High performance technology: automatic flow control, integrated particle filter
• Cooled dosing valve – prevents too early evaporation, deflagration and scattering analysis results
• Multiple dosing to cover wide concentration range and easy calibration
• Heated evaporation chamber preventing samle loss
