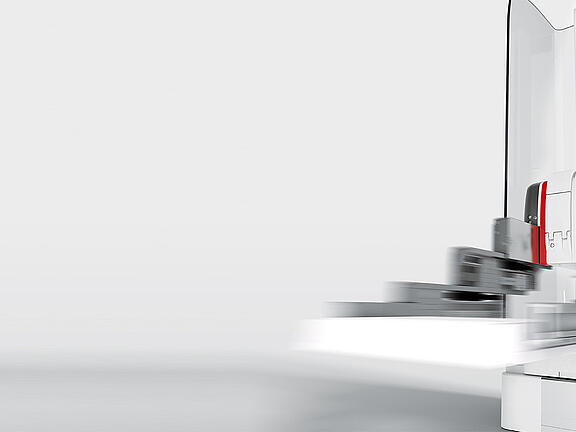

CyBio Carry Series Carries Your Workflow
- Friendly – Easy integration & user-friendly handling
- Profitable – Reap the profits of automation without much effort
- Familiar – User oriented, from experts developed solution
- Safe – Smart cobot for operator security
- Compact – Optimized usage of available lab space
- Flexible – Scalable integration of different devices
The user-friendly CyBio Carry robot automates your workflow – with the smallest footprint on top of your lab bench
Lab Bench Automation With CyBio Carry
Simple. Smart. Economical.Unlike a traditional laboratory robot, the ultra-compact labware handler perfectly suits requirements of automation within space-limited laboratories while maintaining full accessibility of integrated devices for stand-alone use.
- Compactness – Optimized usage of available lab bench space
- Familiarity – User oriented, from experts developed solutions
- Safe lab automation - collaborative robot
Brochures
| Title | Language | Info |
|---|---|---|
| Brochure-Liquid-Handling-PlatformAutomation Solutions | en | PDF, 799 KB |
| Brochure CyBio Carry (EN) | en | PDF, 1 MB |
| Brochure LabAutomation Product Overview (EN) | en | PDF, 537 KB |
| Brochure Product Guide Life Science (EN) | en | PDF, 2 MB |
Suits Perfectly on your Lab Bench
Unlike a traditional laboratory robot, the ultra-compact labware handler perfectly suits requirements of lab bench automation within space-limited laboratories while maintaining full accessibility of integrated devices for stand-alone use. By using the CyBio Carry Positioning kit, known automation devices such as PCR-cycler, microplate reader and washer can be positioned quickly, reproducibly and flexibly in front of the CyBio Carry.Designed to feature multiple instrument capability, the Cartesian 3-axis labware handler can be configured with different rail lengths addressing a wide variety of peripheral instruments.The patent-pending gripper mechanism supports multiple positions per device. An additional shuttle position maximizes the flexibility and includes object detection. Rapid and quiet operation is complemented by ensured reliability and safety. Motor power disables automatically while the slightest unexpected obstruction is detected.
Harmonically integrated in CyBio Composer Software, within the user-friendly editor for teaching and configurating of your lab bench automation, CyBio Carry can easily be controlled. The powerful scripting environment offers maximized functionality, smooth integration for a wide range of 3rd-party instruments, comprehensive database connectivity and a sophisticated fault security.
Products
CyBio Carry 1200
It has never been easier to start with automation! The CyBio Carry 1200 with a rail lenght of 1200 mm is the next generation of lab robot in a compact benchtop design.
Order number: OL3951-103-26
CyBio Carry 1400
It has never been easier to start with automation! The CyBio Carry 1400 with a rail lenght of 1400 mm is the next generation of lab robot in a compact benchtop design.
Order number: OL3951-104-26
CyBio Carry 2000
It has never been easier to start with automation! The CyBio Carry 2000 with a rail travel of 2000 mm is the next generation of lab robot in a compact benchtop design.
Order number: OL3951-107-26
CyBio Carry 800
It has never been easier to start with automation! The CyBio Carry 800 with a rail lenght of 800 mm is the next generation of lab robot in a compact benchtop design.
Order number: OL3951-102-26
Technical Data
Max Payload | Labware Orientation | System Capacities | Vertical Reach | Max Rail Speed | Horizontal Reach | Labware Detection | Labware Compatibility | |
|---|---|---|---|---|---|---|---|---|
| CyBio Carry 1200 | 0.5 kg | Landscape | 2 position (gripper, shuttle position beneath the gripper) | 240 mm | 500 mm/s | 290 mm | Yes | ANSI/SLAS format, MTP and DWP |
| CyBio Carry 1400 | 0.5 kg | Landscape | 2 position (gripper, shuttle position beneath the gripper) | 240 mm | 500 mm/s | 290 mm | Yes | ANSI/SLAS format, MTP and DWP |
| CyBio Carry 2000 | 0.5 kg | Landscape | 2 position (gripper, shuttle position beneath the gripper) | 240 mm | 500 mm/s | 290 mm | Yes | ANSI/SLAS format, MTP and DWP |
| CyBio Carry 800 | 0.5 kg | Landscape | 2 position (gripper, shuttle position beneath the gripper) | 240 mm | 500 mm/s | 290 mm | Yes | ANSI/SLAS format, MTP and DWP |
Order Information
Order number | Description |
|---|---|
| OL3951-103-26 | CyBio Carry 1200, lab robot in a compact benchtop design, rail travel 1200 mm |
| OL3951-104-26 | CyBio Carry 1400, lab robot in a compact benchtop design, 1400 mm rail travel |
| OL3951-107-26 | CyBio Carry 2000, lab robot in a compact benchtop design, rail travel 2000 mm |
| OL3951-102-26 | CyBio Carry 800, lab robot in a compact benchtop design, 800 mm rail travel |
Accessories
CyBio Carry Positioning Kit for CyBio FeliX
CyBio Carry positioning kit for CyBio FeliX is used to fix and position the CyBio FeliX in front of the CyBio Carry.
Order number: OL3951-24-710
Software
CyBio Composer
As the backbone of our liquid handling and automation software, CyBio Composer ensures the reliable and detailed operation of CyBio FeliX as well as accessories and devices from 3rd party suppliers facilitating detailed instrument control on a scripting level. While mostly working in the background, CyBio Composer monitors user permissions and records user interactions, errors and other execution information.
- Powerful scripting environment
- Direct access to all hardware functions and liquid handling parameters
- Possibility of connecting to databases and LIMS systems
| Product | Required | Included |
|---|---|---|
| CyBio Carry 1200 (OL3951-103-26) | ||
| CyBio Carry 1400 (OL3951-104-26) | ||
| CyBio Carry 2000 (OL3951-107-26) | ||
| CyBio Carry 800 (OL3951-102-26) |
CyBio Scheduler Software
Order number: OL9515-40-001
The CyBio Scheduler software allows for the parallel and time-optimized control of several laboratory instruments to execute a number of diverse workflows. The Software provides flexibility and precision to run your automation system. No matter how complex your assays are, with CyBio Scheduler you will achieve reproducible and uniform conditions and assay results for each individual plate.
- Easy drag & drop workflow creation
- Powerful and fast assay optimization
- Precise fast assay simulation
- Automatic synchronization and optimization
- Scheduled processing including online visualization
- Cycle and assay interleaving
- Multi-faceted interfaces with your LIMS, network and database
- Versatile error recovery and message services
- Tracking of all relevant sub-processes
- Identification and status of all microplates in the process
- Easy data import and export
| Product | Required | Included |
|---|---|---|
| CyBio Carry 1200 (OL3951-103-26) | ||
| CyBio Carry 1400 (OL3951-104-26) | ||
| CyBio Carry 2000 (OL3951-107-26) | ||
| CyBio Carry 800 (OL3951-102-26) |
