UVP Multidizer Oven

UVP Multidizer Ofen

Features

  • ƒBroad portfolio of hybridization ovens
  • Accurate temperature and rotation speed control
  • Variable bottle sizes and offset bottle positioning
  • Easy to clean interior made of stainless steel
  • Two independent incubation chambers (UVP Multidizer Oven)

Previous description: OV 4000

Product Info

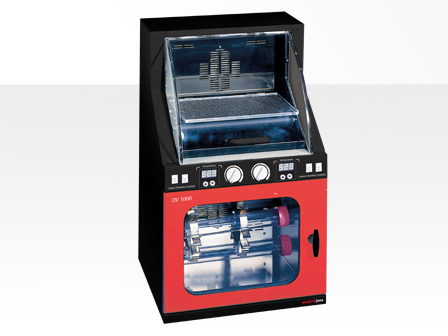

The UVP Multidizer Ofen is designed with two separate incubation chambers that work as separate, independent units and can be used for a variety of applications. The two chambers allow simultaneously hybridization and blotting procedures requiring different sized bottles, motions or temperature settings. The upper chamber is equipped with a shaker tray that can be exchanged by an acrylic carousel or an orbital tray that are available as optional accessories. The UVP Multidizer Ofen therefore offers several motion functions like shaking, rolling, orbital rocking and rotating all in one unit.

Technical Data

Technical data

Number of
Hybridisation chambers

2

Lower chamber

Upper chamber

Min. Temperature

10 °C above RT

10 °C above RT

Max. Temperature

99.9 °C

80 °C

Temperature Accuracy

± 0.3° C to 68° C

± 0.3° C to 68° C

Temperature Uniformity

± 0.1° C to 68° C

± 0.1° C to 68° C

Rotor Speed

10 - 18 upm

12 - 20 upm

Bottles(30 cm)

10

4

Bottles(10 cm)

20

8

Bottles(15 cm)

20

8

Shaker tray

Yes, upper chamber

Shaking speed

54-106 rpm

Footprint (W x D)

45 cm x 38 cm

Height / Weight

72 cm / 34.0 kg

Optional accessories

Orbital tray

Rotation speed

30 rpm @ 2° angle

Maxium load

1.36 kg

Rocker tray

Shaking speed

7-14 rpm

Shaking angle

12°

2nd Carousel
Reciprocating Shaker Tray

Order Info

Order number*

Description

849-30003-2

UVP Multidizer Oven, 230V UK+EU

849-30003-3

UVP Multidizer Oven, 230 V, EU

849-30003-4

UVP Multidizer Oven, 115 V, US

849-30003-5

UVP Multidizer Oven, 100 V, US

* Hybridization bottles not part of the delivery contents.

Accessories

Order number

Description

Quantity

849-30080-0

Hybridization bottle large, 30 x 3.5 cm incl. cap,
O-ring and PFTE seal

1

849-30081-0

Hybridization bottle medium, 15 x 3.5 cm incl. cap,
O-ring and PFTE seal

1

849-30082-0

Hybridization bottle small, 10 x 3.5 cm incl. cap,
O-ring and PFTE seal

1

849-30083-0

Bottle cap incl. O-ring and PFTE seal

2

849-30084-0

Nylon meshes 15 x 10 cm

5

849-30085-0

Nylon meshes 23 x 23 cm

5

849-30050-0

Rocker Tray (for UVP Hybridizer Oven, UVP Hybrilink Oven and
UVP Multidizer Oven)

1

849-30051-0

Orbital Tray (for UVP Hybridizer Oven, UVP Hybrilink Oven and
UVP Multidizer Oven)

1

849-30052-0

Reciprocating Shaker Tray (for UVP Multidizer Oven)

1

849-30057-0

Carousel, acrylic (for upper chamber UVP Multidizer Oven)

1

Downloads

Download on Request
(e.g. Application Notes, Software, Manual, Short Manual)
