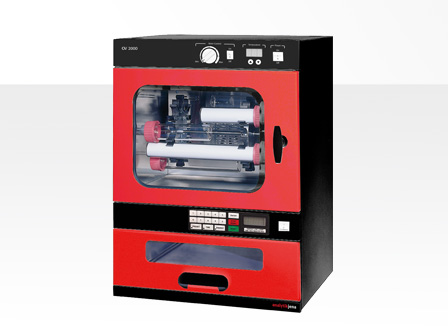

UVP Hybrilink Oven
Features
- Carousel for multiple bottle sizes and off-set bottle positioning
- Variable rotor speed 10 - 15 rpm
- Microprocessor controlled incubation temperature
- LED display for easy operation
- Temperature range: Ambient +10 °C to 99.9 °C maximum
- Temperature uniformity: ±0.1 °C to 68 °C
- Temperature accuracy: ± 0.3 °C to 68 °C
- Heating element: 1,250 watts
- Maximum power consumption: 1,150 Watt
- Easy to clean interior made of stainless steel
- Removable protective tray to allow easy cleanup of spilled media
- Glass door for easy viewing of samples and blocking of ß-emission from the hybridization chamber
- Oribital motion tray or rocker tray as optional accessory available
Previous description: OV 2000
Product Info
Self-contained unit provides the unique combination of a hybridization oven and a 254nm ultraviolet crosslinker. The UVP Hybrilink Oven portion is ideal for Southern, Northern, and Western blots; in situ hybridization; and binding nucleic acids to nitrocellulose or nylon-reinforced transfer membranes or other media. The unit features precise microprocessor rotation speed and temperature control. An internal circulating fan maintains temperature uniformity, and a large LED display shows the current chamber temperature. Internal stainless steel construction enables the environment to be kept clean.
The oven accommodates multiple bottle sizes, arrangements, and offset positions to meet a variety of mixing requirements. The rotary wheel holds twenty 35x150mm bottles or 35x100mm bottles, ten 35x300mm bottles, or a combination of the various sizes. The rotary wheel can be removed and replaced with a rocker tray or rocker plate to create a rocking motion and to accomodate various types of flasks. The removable protective trays allow for easy cleanup of spilled media.
The ultraviolet crosslinker portion of the UVP Hybrilink Oven provides uniform shortwave (254nm) ultraviolet radiation exposure maintained by five 254nm UV tubes. UV output is measured by an internal sensor and is controlled by an on-board microprocessor. The crosslinker features an internal interlocking system for added safety. The hybridization oven and crosslinker components have separate power supplies and may operate independently.
Technical Data
Technical data | |
|---|---|
Number of | 1 |
Min. Temperature | 10 °C above RT |
Max. Temperature | 99.9 °C |
Temperature Accuracy | ± 0.3° C to 68° C |
Temperature Uniformity | ± 0.1° C to 68° C |
Rotor Speed | 10-15 upm |
Bottles (30 cm) | 10 |
Bottles (15 cm) | 20 |
Crosslinker | Yes |
Footprint (W x D) | 45 cm x 38 cm |
Height / Weight | 61 cm / 27.2 kg |
Optional accessories | |
|---|---|
Orbital tray | |
Rotation speed | 30 rpm @ 2° angle |
Maxium load | 1.36 kg |
Rocker tray | |
Shaking speed | 7-14 rpm |
Shaking angle | 12° |
Order Info
Order number* | Description |
|---|---|
849-30002-2 | UVP Hybrilink Oven, 230V UK+EU |
849-30002-4 | UVP Hybrilink Oven, 115 V, US |
849-30002-5 | UVP Hybrilink Oven, 100 V, US |
| |
Accessories | ||
|---|---|---|
Order number | Description | Quantity |
849-30080-0 | Hybridization bottle large, 30 x 3.5 cm incl. cap, | 1 |
849-30081-0 | Hybridization bottle medium, 15 x 3.5 cm incl. cap, | 1 |
849-30082-0 | Hybridization bottle small, 10 x 3.5 cm incl. cap, | 1 |
849-30083-0 | Bottle cap incl. O-ring and PFTE seal | 2 |
849-30084-0 | Nylon meshes 15 x 10 cm | 5 |
849-30085-0 | Nylon meshes 23 x 23 cm | 5 |
849-30050-0 | Rocker Tray (for UVP Hybridizer Oven, UVP Hybrilink Oven and UVP Multidizer Oven) | 1 |
849-30051-0 | Orbital Tray (for UVP Hybridizer Oven, UVP | 1 |
Downloads
- Product flyer Hybridization Ovens .pdf | 468.58 kB
(e.g. Application Notes, Software, Manual, Short Manual)
