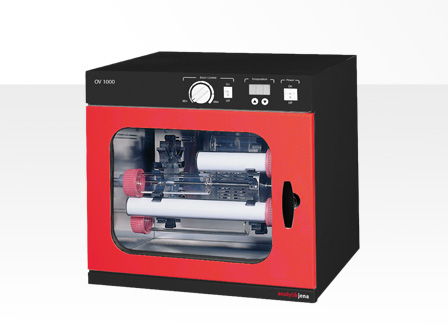

UVP Hybridizer Oven

UVP Hybridizer Ofen

Features

  • Carousel for multiple bottle sizes and off-set bottle positioning
  • Variable rotor speed 10 - 15 rpm
  • Microprocessor controlled incubation temperature
  • LED display for easy operation
  • Temperature range: Ambient +10°C to 99.9°C maximum Temperature uniformity: ±0.1 °C to 68 °C
  • Temperature accuracy: ± 0.3 °C to 68 °C
  • Heating element: 1,250 watts
  • Maximum power consumption: 1,210 Watt
  • Easy to clean interior made of stainless steel
  • Removable protective tray to allow easy cleanup of spilled media
  • Glass door for easy viewing of samples and blocking of ß-emission from the hybridization chamber

Previous description: OV 1000

Product Info

The UVP Hybridizer Oven provides uniform temperature and rotation controls for thorough mixing of materials. UVP Hybridizer Oven is ideal for Southern, Northern, and Western blots; in situ hybridization; and binding nucleic acids to nitrocellulose or nylon-reinforced transfer membranes or other media. Precise microprocessor rotation speed and variable speed control settings enable consistent sample saturation. A touch-sensitive key pad allows for precise temperature control, and an internal circulating fan maintains temperature uniformity. A large LED display shows the current chamber temperature. Internal stainless steel construction enables the environment to be kept clean.

The UVP Hybridizer Oven accommodates multiple bottle sizes, arrangements, and positions to meet a variety of mixing requirements. The rotary wheel holds twenty 35x150mm bottles or 35x100mm bottles, ten 35 x 300 mm bottles, or a combination of the various sizes. The rotary wheel can be removed and replaced with a rocker tray or rocker plate to create a rocking motion and to accomodate various types of flasks. The removable protective trays allow for easy cleanup of spilled media.

Technical Data

Technical data

Number of
Hybridisation chambers

1

Min. Temperature

10 °C above RT

Max. Temperature

99.9 °C

Temperature Accuracy

± 0.3° C to 68° C

Temperature Uniformity

± 0.1° C to 68° C

Rotor Speed

10 - 15 rpm

Bottles (30 cm)

10

Bottles (15 cm)

20

Footprint (W x D)

40 cm x 38 cm

Height / Weight

45 cm / 19.5 kg

Optional accessories

Orbital tray

Rotation speed

30 rpm @ 2° angle

Maxium load

1.36 kg

Rocker tray

Shaking speed

7-14 rpm

Shaking angle

12°

Order Info

Order number*

Description

849-30001-2

UVP Hybridizer Oven (230 V, Euro and UK plug)

849-30001-3

UVP Hybridizer Oven (230 V, Euro plug)

849-30001-4

UVP Hybridizer Oven (115 V, US plug)

849-30001-5

UVP Hybridizer Oven (100 V, US plug)

* Hybridization bottles not part of the delivery contents.

Accessories

Order number

Description

Quantity

849-30080-0

Hybridization bottle large, 30 x 3.5 cm incl. cap,
O-ring and PFTE seal

1

849-30081-0

Hybridization bottle medium, 15 x 3.5 cm incl. cap,
O-ring and PFTE seal

1

849-30082-0

Hybridization bottle small, 10 x 3.5 cm incl. cap,
O-ring and PFTE seal

1

849-30083-0

Bottle cap incl. O-ring and PFTE seal

2

849-30084-0

Nylon meshes 15 x 10 cm

5

849-30085-0

Nylon meshes 23 x 23 cm

5

849-30050-0

Rocker Tray (for UVP Hybridizer Oven, UVP Hybrilink Oven and UVP Multidizer Oven)

1

849-30051-0

Orbital Tray (for UVP Hybridizer Oven, UVP
Hybrilink Oven and UVP Multidizer Oven)

1

Downloads

Download on Request
(e.g. Application Notes, Software, Manual, Short Manual)
