Biometra Horizon® Family
plus d'images
Features
- Easy-to-use compact design
- Variety of preparative, analytical and multichannel pipet compatible combs
- Buffer circulation ports
- Blot transfer systems
Product Info
Agarose Gel Electrophoresis Systems in Three Standard Sizes
The well-established Biometra Horizon® Family includes three different chamber sizes. All of them excel in their compact user-friendly construction. The safety interlock lid prevents an electrical connection until the lid is properly in place. Gel casting works very fast with patented drop-in dams and can be done either directly in the electrophoresis device or in an external gel casting system. Red visualisation strips under the gel trays aid in sample loading. The medium and large format systems Horizon® 11•14 and Horizon® 20•25 additionally offer a special equipment to perform Southern and Nothern capillary blotting.

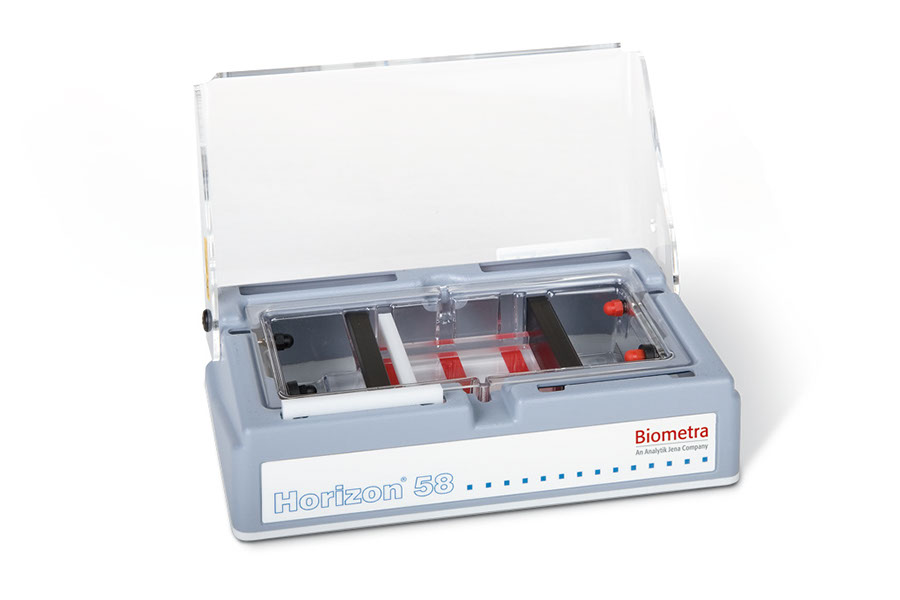

Biometra Horizon® 58 is developed for the rapid separation of nucleic acids in agarose mini-gels. Casting components that withstand boiling agarose temperatures and the removable buffer tray for easy cleaning make the Horizon® 58 the system of choice for rapid routine use. For storage combs and gel casting dams can easily be placed in the electrophoresis unit. A separate casting system is available and comes ready-to-cast with gel tray and casting dams.

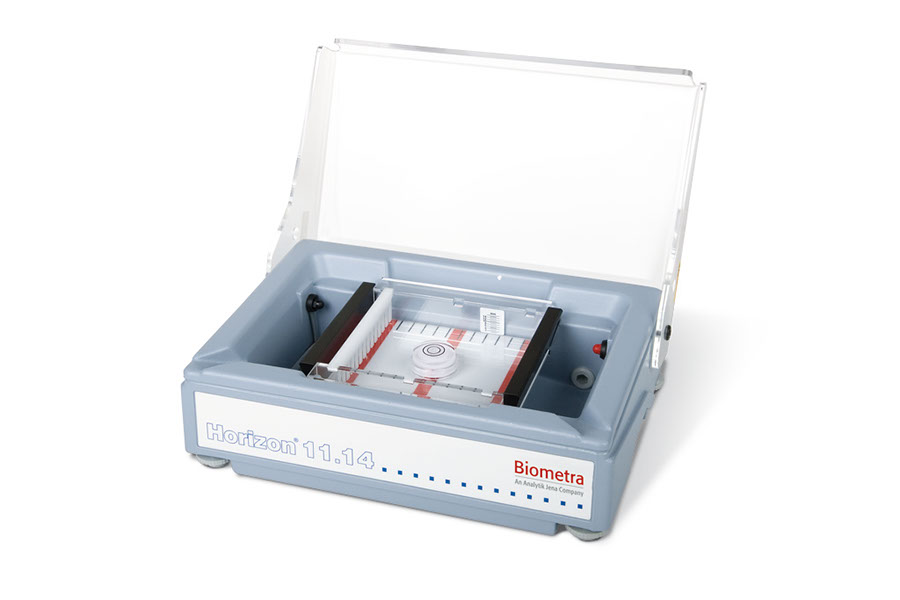

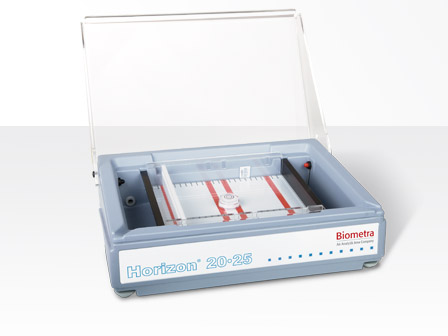

Biometra Horizon® 11•14 and Biometra Horizon® 20•25 have adjustable levelling feet and a bull’s eye level to ensure uniform gel thickness for reproducible separation patterns. The gel trays are UV transparent and thus can be directly placed with gel on an UV table for visualisation. Both models have ports for buffer recirculation, e.g. for RNA electrophoresis.

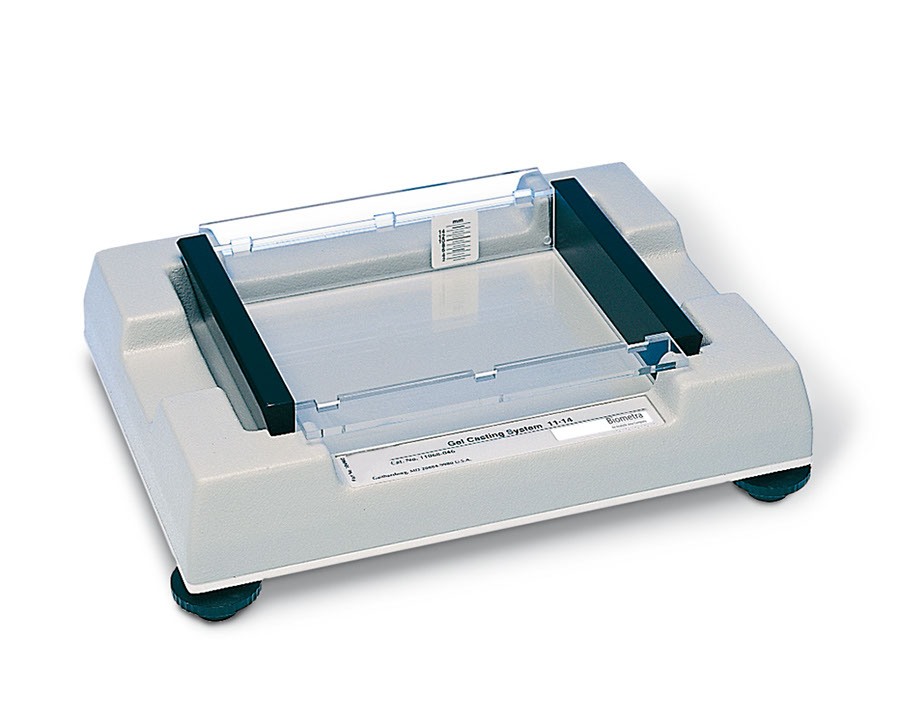

The Biometra Horizon® 58 and BiometraHorizon® 11•14 casting systems come complete with gel tray and casting dams. The Biometra Horizon® 11•14 casting system can be levelled by four levelling feet. For the Horizon® 58 casting system an additonal casting/levelling tray is available.
Technical Data
Model | Gel size (W × L) | Max. sample number |
|---|---|---|
Biometra Horizon® 58 | 5,7 × 8,3 cm | 28 with 2 combs |
Biometra Horizon® 11·14 | 11,0 × 14,0 cm | 48 with 2 combs |
Biometra Horizon® 20·25 | 20,0 cm × 25,0 cm | 84 with 2 combs |
Order Info
Order number | Item |
|---|---|
Order Information Horizon® 58 | |
846-41060039 | Horizon® 58: Chamber (W x D x H, cm = 15.2 x 24.0 x 7.0), power cords, safety interlock lid, heat resistant gel tray 5.7 cm x 8.3 cm with 3 visualisation strips, |
846-21065040 | Horizon® 58 Gel Casting System: Stand-alone moulded casting tray (W x D x H = 10 x 20.4 x 4.5 cm), |
Order Information Horizon® 11·14 | |
846-11068020 | Horizon® 11·14: Chamber (W x D x H, cm = 21.5 x 31.5 x 10.5), power cords, safety interlock lid, |
846-11068046 | Horizon® 11·14 Gel Casting System for 11 cm x 14 cm gels: stand-alone moulded casting tray (W x D x H = 17.0 x 32.0 x 6.5 cm), 1 UV-transparent gel tray, aluminium gel casting dams, adjustable levelling feet (Combs are sold separately.) |
Order Information Horizon® 20·25 | |
846-21069026 | Horizon® 20·25: Chamber (W x D x H, cm = 32.0 x 42.5 x 12.0), power cords, safety interlock lid, |
846-21069067 | Horizon® 20·25 Gel Casting System for 20 cm x 25 cm gels: Stand-alone moulded casting tray (W x D x H = 27.3 x 37.0 x 7.5 cm), 1 UV-transparent gel tray, 2 aluminium gel casting dams, adjustable levelling feet (Combs are sold separately.) |
Order number | Item |
|---|---|
Horizon® 58: Accessories and spare parts | |
846-21065073 | Comb 8 wells, 15 µl/well* |
846-21065115 | Comb 14 wells, 7 µl/well* |
Combs, 1.5 mm thick | |
846-21065131 | Preparative comb: 1 well plus 2 wells for marker lanes, 250 µl per preparative slot* |
846-21065107 | Comb 5 wells, 50 µl/well |
846-21065081 | Comb 8 wells, 25 µl/well |
846-11951142 | Comb 12 wells, 15 µl/well, multichannel pipet compatible, 4.5 mm spacing* |
846-21065123 | Comb 14 wells, 13 µl/well |
Gel trays + dams | |
846-21065164 | Gel tray H58/Sunrise 58, 5.7 cm x 8.3 cm with |
846-21065065 | Aluminium Gel Casting Dams without gaskets (pair)* |
Spare parts | |
846-11099025 | Power Cords (pair) |
846-21059027 | Electrode Replacement H58 (1 electrode/pkg)* |
846-21065024 | Removable buffer tray incl. mounted electrodes |
846-11950011 | Reed Switch Replacement (Reed Switch only) |
846-21065156 | Reed Switch Hardware Replacement Kit (includes |
846-21065214 | Lid Replacement H58/Sunrise 58 |
846-21065149 | Hinge Pins Replacement (2/pkg) |
Horizon® 11·14: Accessories and spare parts | |
846-11951068 | Comb 10 wells, 33 µl/well |
846-11951175 | Comb 12 wells, 30 µl/well, multichannel pipet compatible, 9 mm spacing* |
846-31081011 | Comb 14 wells, 20 µl/well |
846-11951076 | Comb 20 wells, 16 µl/well |
Combs, 2.0 mm thick | |
846-11951084 | Comb 10 wells, 66 µl/well |
846-31081029 | Comb 14 wells, 40 µl/well |
846-11951092 | Comb 20 wells, 32 µl/well |
846-11951159 | Comb 24 wells, 22 µl/well, multichannel pipet compatible, 4.5 mm spacing |
Gel trays + dams | |
846-11084019 | UV-transparent gel tray H11·14/H5, 11 cm x 14 cm |
846-11068053 | Aluminium Gel Casting Dams without gaskets (pair)* |
Spare parts | |
846-11099025 | Power Cords (pair) |
846-11068061 | Electrode Replacement H11·14 (1 electrode/pkg) |
846-11980059 | Electrode Hardware Repair Kit (includes 2 rubber washers, 2 hex nuts, 2 electrode boots, |
846-11964130 | Levelling Foot Replacement (2/pkg) |
846-11940012 | Quick Connect Fitting Replacement (2/pkg) |
846-11962026 | Quick Connect Port Replacement (2/pkg)* |
846-11962040 | Lid Replacement H11·14 |
846-21065149 | Hinge Pins Replacement (2/pkg) |
Horizon® 20·25: Accessories and spare parts | |
846-41007014 | Comb 20 wells, 27 µl/well* |
846-11951183 | Comb 21 wells, 30 µl/well, multichannel pipet compatible, 9 mm spacing* |
846-11951043 | Comb 30 wells, 20 µl/well |
846-11951191 | Comb 42 wells, 11 µl/well, multichannel pipet compatible, 4.5 mm spacing* |
Combs, 2.0 mm thick | |
846-11951019 | Comb 30 wells, 40 µl/well* |
846-11951167 | Comb 42 wells, 22 µl/well, multichannel pipet compatible, 4.5 mm spacing* |
Gel trays + dams | |
846-31006026 | UV-transparent Gel Tray H20·25/H4, 20 cm x 25 cm |
846-21069059 | Aluminium Gel Casting Dams without gaskets (pair)* |
Spare parts | |
846-11099025 | Power Cords (pair) |
846-21069042 | Electrode Replacement H20·25 (1 electrode/pkg) |
846-11980059 | Electrode Hardware Repair Kit (includes 2 rubber washers, 2 hex nuts, 2 electrode boots, 1 red cap nut, 1 black cap nut, 2 banana plugs, and 2 lock washers)* |
846-11940012 | Quick Connect Fitting Replacement (2/pkg)* |
846-11962026 | Quick Connect Port Replacement (2/pkg)* |
846-11962032 | Lid Replacement H20·25* |
846-21065149 | Hinge Pins Replacement (2/pkg) |
| |
