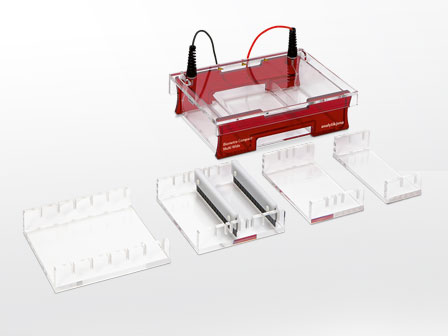

Biometra Compact Multi-Wide
plus d'images Features
- UV transparent gel trays
- Models for analytical and high-throughput applications
- Four multichannel pipet compatible combs per tray size
- All-in-one casting systems fits for all four gel sizes
Product Info
New Compact-Line model for Submerged Gel Electrophoresis
The new Compact Multi-Wide is the most variable model of the Compact Family, offering the greatest choice of gel lengths and combs for sample loading. As all gel trays have the same width, the combs fit to all of the gel trays which are available with this system.
The Compact Multi-Wide is a highly flexible system for rapid screening as well as multiple sample loading with short or long separation distances. It has a wide platform that can separate in preparative scale or up to 32 samples per comb. Depending on gel size, up to 6 combs can be placed on the gel tray.
Gel Casting System
The all-in-one gel casting system accommodates gel tray length’s from
7 to 18 cm. A movable wall with sliding casting dam gives the necessary flexibility for this purpose and allows fixing of the different gel trays very quick and easy.
By using the movable casting dam set the casting system can be upgraded into a highly flexible multi-castingsystem, which offers the convenience to cast simultaneously up to 3 x 7 cm long gels or 2 x 10 cm gels or 1 x 7 cm and 1 x 10 cm long gels or 1 x 7 cm and 1 x 15 cm long gels.
Compact Multi-Wide (Gel size + Max. Sample number):
- 15.0 cm x 7.0 cm 64 with 2 combs
- 15.0 cm x 10.0 cm 96 with 3 combs
- 15.0 cm x 15.0 cm 160 with 5 combs
- 15.0 cm x 18.0 cm 192 with 6 combs
If adjustment of the casting system is necessary, a levelling tray with levelling feet and bull’s eye level is optional available. This levelling tray is additionally compatible with Compact XS, S and M.
Technical Data
Model | Gel size (BxL) | Max. sample number |
|---|---|---|
Compact Multi-Wide | 15.0 cm x 7.0 cm | 64 with 2 combs |
15.0 cm × 10.0 cm | 96 with 3 combs | |
15.0 cm × 15.0 cm | 160 with 5 combs | |
15.0 cm × 18.0 cm | 192 with 6 combs |
Order Info
Order number | Description |
|---|---|
Order Information Compact Multi-Wide | |
846-025-500 | Compact Multi-Wide: Chamber with safety lid (W x D x H, cm = 29.5 cm x 21.0 cm x 8.5 cm), without accessories |
846-025-501 | Compact Multi-Wide: Chamber with safety lid (W x D x H, cm = 29.5 cm x 21.0 cm x 8.5 cm), UV transparent tray for gel size 15.0 cm x 7.0 cm, 2 combs (16 wells, 1.0 mm thick) |
846-025-591 | Compact Multi-Wide, 1 gel tray 15.0 cm x 7.0 cm, 2 combs (16 wells, 1.0 mm thick) + gel casting system Multi-Wide |
846-025-502 | Compact Multi-Wide: Chamber with safety lid (W x D x H, cm = 29.5 cm x 21.0 cm x 8.5 cm), |
846-025-592 | Compact Multi-Wide, Compact Multi-Wide, 1 gel tray 15.0 cm x 10.0 cm, 2 combs (16 wells, 1.0 mm thick) |
846-025-503 | Compact Multi-Wide: Chamber with safety lid (W x D x H, cm = 29.5 cm x 21.0 cm x 8.5 cm), UV transparent tray for gel size 15.0 cm x 15.0 cm, 2 combs (16 wells, 1.0 mm thick) |
846-025-593 | Compact Multi-Wide, 1 gel tray 15.0 cm x 15.0 cm, 2 combs (16 wells, 1.0 mm thick) + gel casting system Multi-Wide (see 025-503 + 025-510) |
846-025-504 | Compact Multi-Wide: Compact Multi-Wide: Chamber with safety lid (W x D x H, cm = 29.5 cm x 21.0 cm x 8.5 cm), UV transparent tray for gel size 15.0 cm x 18.0 cm, 2 combs |
846-025-594 | Compact Multi-Wide, 1 gel tray 15.0 cm x 18.0 cm, 2 combs (16 wells, 1.0 mm thick) + gel casting system Multi-Wide (see 025-504 + 025-510) |
846-025-509 | Compact Multi-Wide: Compact Multi-Wide: Chamber with safety lid (W x D x H, cm = 29.5 cm x 21.0 cm x 8.5 cm), 4 UV transparent trays for gel size: 15 cm x 7.0 cm / 10.0 cm / 15.0 cm and 18.0 cm, 2 combs (16 wells, 1.0 mm thick) |
846-025-599 | Compact Multi-Wide: 4 gel trays 15.0 cm x 7.0cm / 10.0 cm/ 15.0 cm and 18.0 |
| Gel-Gießsystem Multi-Wide: all-in-one casting chamber for all Multi-Wide |
Order number | Description | |
|---|---|---|
Accessories for Compact Multi-Wide | ||
Combs, 1.0 mm thick | ||
846-025-537 | Preparative comb: 1 well (528 µl) plus 2 marker wells | |
846-025-538 | Preparative comb: 2 well (261 µl) plus 2 marker wells | |
846-025-531 | 14 wells, 36 µl/well | |
846-025-532 | 16 wells, 30 µl/well, multichannel pipet compatible, 9 mm spacing | |
846-025-533 | 22 wells, 20 µl/well | |
846-025-534 | 26 wells, 16 µl/well | |
846-025-535 | 32 wells, 12 µl/well, | |
Combs, 1.5 mm thick | ||
846-025-547 | Preparative comb: 1 well (793 µl) plus 2 marker wells | |
846-025-548 | Preparative comb: 2 well (392 µl) plus 2 marker wells | |
846-025-549 | Preparative comb: 4 well (191 µl) plus 2 marker wells | |
846-025-541 | 14 wells, 55 µl/well | |
846-025-542 | 16 wells, 46 µl/well, | |
846-025-543 | 22 wells, 30 µl/well | |
846-025-544 | 26 wells, 24 µl/well | |
846-025-545 | 32 wells, 18 µl/well, | |
Gel trays | ||
846-025-521 | Gel tray for 15.0 cm x 7.0 cm gel size, UV transparent, | |
846-025-522 | Gel tray for 15.0 cm x 10.0 cm gel size, UV transparent, | |
846-025-523 | Gel tray for 15.0 cm x 15.0 cm gel size, UV transparent, | |
846-025-524 | Gel tray for 15.0 cm x 18.0 cm gel size, UV transparent, 2 comb positions with 8.4 cm distance, 3 comb positions with 5.6 cm distance, 6 comb positions with 2.8 cm distance | |
846-025-528 | Movable casting dam set, 2 casting dams to convert the all-in-one casting system for | |
846-025-550 | Casting/Levelling Tray, 20 x 30 cm | |
Well capacity refers for 5 mm thick gels.
