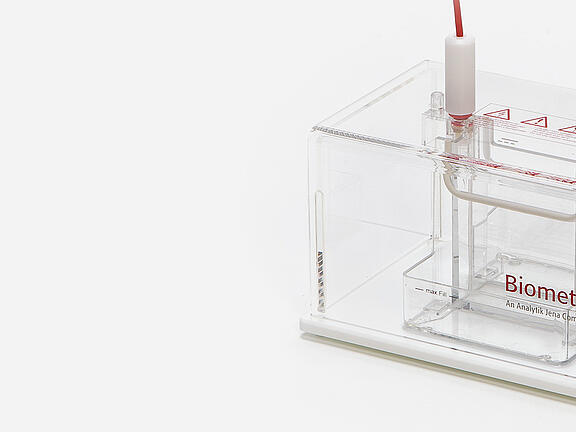

Biometra Minigel-Twin PAGE Electrophoresis Made Easy
- Robust and cost-saving due to low buffer requirement
- Easy handling
- Compatible with almost all standard PAGE precast gels
For many years, the Minigel Twin system has stood for reliability, easy handling, and high specimen separation accuracy. The low buffer requirement reduces operating costs.
Proven Standard for Mini Gels
The Biometra Minigel-Twin System is a proven system for polyacrylic gel electrophoresis for the sharp separation of nucleic acids or proteins. Robust glass plates with fixed glass spacers and a special silicone seal between the gel sandwich ensure leak-proof, easy casting of gels.
- For 1 to 2 gels of size 8.6 cm x 7.7 cm
- Easy handling and stable construction
- High separation efficiency and short run times
- Low buffer requirement
Mini Gel Electrophoresis in a Simple Way
The Biometra Minigel-Twin is a vertical protein gel electrophoresis system that allows an efficient separation of proteins and nucleic acids. Based on a optimized design, a fast and reliable analysis of your samples meets excellent resolution. Convince yourself of the high ease of use and the outstanding durability of the systems and let the Biometra Minigel-Twin become your ideal partner for protein or nucleic acid analysis.
- High selectivity despite short running times
- Glass plates with fixed glass spacers
- Excellent sealing system with profiled silicone seal ensures user-friendly, leak-proof casting of polyacrylamide gels
Products
Minigel-Twin System for 0.6 mm gels, for 2 gels
The proven double gel system for polyacrylamide gels convinces with leak-proof gel casting and low buffer requirements.
Order number: 846-010-140
Minigel-Twin System for 1.0 mm gels, for 2 gels
The proven double gel system for polyacrylamide gels convinces with leak-proof gel casting and low buffer requirements.
Order number: 846-010-100
Minigel-Twin w/o accessories
The proven double gel system for polyacrylamide gels convinces with leak-proof gel casting and low buffer requirements.
Order number: 846-010-130
Technical Data
Number of gels | Max. sample throughput | Modular system | Glass plates with fixed spacers | Dimensions gel (W x D, cm) | Spacer thickness (mm) | Electrode material | Max. voltage/electrophoresis | Max. buffer temperature | Buffer volume | Max. power/electrophoresis | Max. current/electrophoresis | Gel casting system | Dimensions glass plate (W x D, cm) | Dimension (width x depth x height) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Minigel-Twin System for 0.6 mm gels, for 2 gels | 1 - 2 | 2 x 28 | No | Yes | 8.6 x 7.7 | 0.6 | Platinum | 400 V | 50 °C | 440 mL | 20 W | 50 mA | Silicone rubber seal | 10.5 x 9.8 | 236 mm x 160 mm x 182 mm |
| Minigel-Twin System for 1.0 mm gels, for 2 gels | 1 - 2 | 2 x 28 | No | Yes | 8.6 x 7.7 | 1 | Platinum | 50 °C | 440 mL | 20 W | 50 mA | Silicone rubber seal | 10.5 x 9.8 | 236 mm x 160 mm x 182 mm | |
| Minigel-Twin w/o accessories | 1 - 2 | 2 x 28 | No | Yes | 8.6 x 7.7 | Platinum | 400 V | 50 °C | 440 mL | 20 W | 50 mA | Silicone rubber seal | 10.5 x 9.8 | 236 mm x 160 mm x 182 mm |
Order Information
Order number | Description |
|---|---|
| 846-010-140 | Minigel-Twin System (0.6 mm), for 2 gels |
| 846-010-100 | Minigel-Twin System (1.0 mm), for 2 gels |
| 846-010-130 | Minigel-Twin w/o accessories only buffer chamber and safety lid |
Accessories
Comb, Minigel/-Twin, prep. 1 mm, 2 well
Order number: 846-010-009
Clamps, for Minigel/Twin 6 pieces
Order number: 846-010-057
Comb , MN16 16 wells, 0.6 mm for Minigel/Minigel-Twin
Order number: 846-014-018
Comb , MN16/MN28 1 well, prep. for Minigel/Minigel-Twin
Order number: 846-014-023
Comb , MN28 28 wells, 1 mm for Minigel/Minigel-Twin
Order number: 846-014-019
Comb, Minigel/-Twin, 10 well 0.6 mm
Order number: 846-010-016
Comb, Minigel/-Twin, 10 well 0.6 mm
Order number: 846-010-024
Comb, Minigel/-Twin, 10 well 1 mm
Order number: 846-010-011
Comb, Minigel/-Twin, 10 well 1 mm
Order number: 846-010-023
Comb, Minigel/-Twin, 20 well 0.6 mm
Order number: 846-010-020
Comb, Minigel/-Twin, 20 well 1 mm
Order number: 846-010-012
Comb, Minigel/-Twin, 5 well, 1 mm, 5 well
Order number: 846-010-010
Comb, Minigel/-Twin, prep. 1 mm
Order number: 846-010-008
Comb, Minigel/-Twin, prep. 1 well, 0.6 mm
Order number: 846-010-021
Comb, Minigel/-Twin, prep. 1 well, 1 mm
Order number: 846-010-022
Comb, MN16 16 wells, 1 mm for Minigel/Minigel-Twin
Order number: 846-014-017
Gasket black Minigel/Twin 4 pieces
Order number: 846-010-058

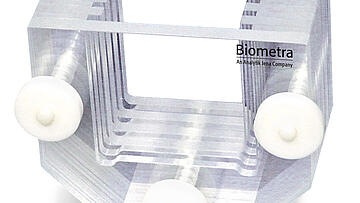

Gel casting stand Minigel/Twin Casting stand, 5 gels, Minigel/ Minigel-Twin
Order number: 846-010-032
Glass plate stand for Minigel/ Minigel-Twin
Order number: 846-010-018
Glass plate, MInigel/-Twin with fixed spacers, 0.6 mm
Order number: 846-010-002
Glass plate, Minigel/-Twin with fixed spacers, 1.0 mm
Order number: 846-010-001
Notched glass plate inclined cut, for Minigel/Twin
Order number: 846-010-004
Notched glass plate straight cut, for Minigel/Twin
Order number: 846-010-003
Rotary table for Minigel/Twin for Compact M
Order number: 846-010-019
Silicone rubber seal M.-Long 0.6 mm, 2 pieces
Order number: 846-010-356
Silicone seal, 0,6 mm Minigel/ Minigel-Twin, 2 pieces
Order number: 846-010-056
Silicone seal, 1 mm Minigel/ Minigel-Twin, 2 pieces
Order number: 846-010-055
