Biometra Eco-Line Robust and Versatile for Your Polyacrylamide Gel Applications
- Modular tank system for PAGE electrophoresis and blotting
- Exceptional separation efficiency even with complex samples
- Cooling option for an integrated water circulation system for sensitive samples
The line is modular composed and allows an individual set-up. A specially designed casting stand provides for convenient gel casting. Glass plates with fixed glass spacers ensure perfect alignment and easy-to use, leak-free casting.
Perfect for PAGE and Blotting

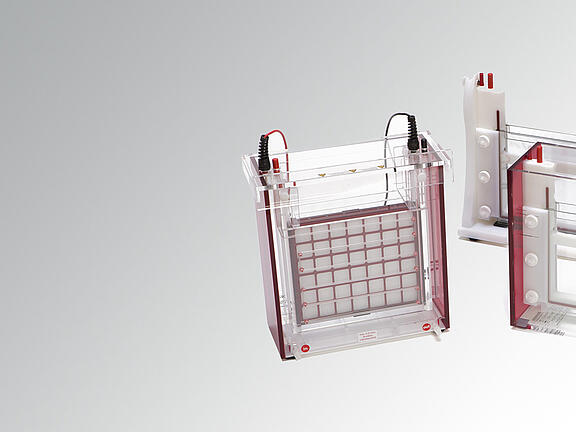

The Biometra Eco-Line for two gel sizes "Mini" and "Maxi" is a robust, modular tank system for polyacrylamide gel electrophoresis and tank blotting. The buffer tank can be used with the electrophoresis module for 1 to 4 gels (Mini) or 1 to 2 gels (Maxi) as well as with the blotting module. The stable design and user-friendly components such as the gel pouring stand for leak-proof pouring of gels as well as the blotting module with color-coded cassettes for error-free blotting ensure a smooth workflow in the laboratory.
- Eco-Mini for 9.4 cm x 8.0 cm gels
- Eco-Maxi for 19.4 cm x 18.5 cm gels
- Tanks with cooling connections for water cooling for sensitive samples
Ideal for PAGE Electrophoresis and Blotting Applications

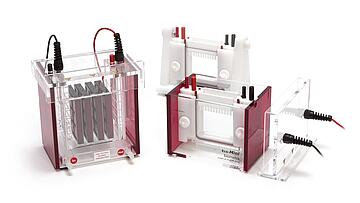

With Biometra Eco-Line, Analytik Jena offers a robust, modular tank system for PAGE electrophoresis and blotting applications to support you in your protein analysis. Specially designed for everyday use, gels can be casted quickly, easily and in a space-saving manner in the electrophoresis module. The unique high-tech sealing material used in the gel casting stand ensures leak-free gel casting. Glass plates with fixed spacers also facilitate handling and help you to save valuable time in routine laboratory work. In addition to the comfortable option of running two to four gels simultaneously, the modular tank design also extends the range of applications.
- 2 Models for mini and maxi gels
- Optional blot module to extend the application range
- Bigfoot safety lid
- Extra strong glass plates with fixed spacers for long-term durability
With a wide selection of different combs in combination with unique Divider-Plates (optional for Eco-Mini available) and a specially designed buffer tank, we offer the most flexible and powerful solution to meet your needs perfectly. In addition, the integrated water circulation system (buffer tank EBC) sets new standards in the electrophoretic protein analysis and allows reliable separation of sensitive samples under controlled temperature conditions.
- Eco-Mini Divider-Plates: with increased sample throughput, the gel capacity can easily increased from 2 to 4 gels
- Efficient cooling (buffer tank EBC) ensures high separation resolution
- Extensive accessories offer individual adaptations to your laboratory needs
Products
Biometra Eco-Maxi EB, 1.0 mm w/o casting stand
The Biometra Eco-Line is a robust and versatile system for polyacrylamide gel electrophoresis and tank blotting.
Order number: 846-017-401
Biometra Eco-Maxi system EB for 2 gels (1.0 mm thick)
The Biometra Eco-Line is a robust and versatile system for polyacrylamide gel electrophoresis and tank blotting.
Order number: 846-017-400
Biometra Eco-Maxi system EBC for 2 gels (1.0 mm thick)
The Biometra Eco-Line is a robust and versatile system for polyacrylamide gel electrophoresis and tank blotting.
Order number: 846-017-402
Biometra Eco-MIni E for 2 gels (1.0 mm thick), w/o casting stand
The Biometra Eco-Line is a robust and versatile system for polyacrylamide gel electrophoresis and tank blotting.
Order number: 846-017-101
Biometra Eco-MIni EB for 2 gels (1.0 mm thick), w/o casting stand
The Biometra Eco-Line is a robust and versatile system for polyacrylamide gel electrophoresis and tank blotting.
Order number: 846-017-103
Biometra Eco-MIni EBC for 2 gels (1.0 mm thick), w/o casting stand
The Biometra Eco-Line is a robust and versatile system for polyacrylamide gel electrophoresis and tank blotting.
Order number: 846-017-105
Biometra Eco-MIni system E for 2 gels (1.0 mm thick)
The Biometra Eco-Line is a robust and versatile system for polyacrylamide gel electrophoresis and tank blotting.
Order number: 846-017-100
Biometra Eco-MIni system EB for 2 gels (1.0 mm thick)
The Biometra Eco-Line is a robust and versatile system for polyacrylamide gel electrophoresis and tank blotting.
Order number: 846-017-102
Biometra Eco-MIni system EBC for 2 gels (1.0 mm thick)
The Biometra Eco-Line is a robust and versatile system for polyacrylamide gel electrophoresis and tank blotting.
Order number: 846-017-104
Technical Data
Number of gels | Max. sample throughput | Modular system | Glass plates with fixed spacers | Dimensions gel (W x D, cm) | Spacer thickness (mm) | Electrode material | Max. current/blotting | Max. voltage/blotting | Max. voltage/electrophoresis | Max. buffer temperature | Buffer volume | Max. power/electrophoresis | Max. power/blotting | Max. current/electrophoresis | Gel casting system | Dimensions glass plate (W x D, cm) | Dimension (width x depth x height) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Biometra Eco-Maxi EB, 1.0 mm w/o casting stand | 2 | 2 x 30 | Yes | Yes | 19.4 cm x 18.5 cm | 1 | Platinum | 1000 mA | 60 V | 400 V | 50 °C | 2180 mL | 50 W | 60 W | 125 mA | Electrophoresis module + casting stand | 21.0 cm x 20.0 cm | |
| Biometra Eco-Maxi system EB for 2 gels (1.0 mm thick) | 2 | 2 x 30 | Yes | Yes | 19.4 cm x 18.5 cm | 1 | Platinum | 1000 mA | 60 V | 400 V | 50 °C | 5400 mL | 50 W | 60 W | 125 mA | Electrophoresis module + casting stand | 21.0 cm x 20.0 cm | 325 mm x 150 mm x 385 mm |
| Biometra Eco-Maxi system EBC for 2 gels (1.0 mm thick) | 2 | 2 x 30 | Yes | Yes | 19.4 x 18.5 | 1 | Platinum | 1000 mA | 100 V | 400 V | 50 °C | 6100 mL | 100 W | 130 W | 250 mA | Electrophoresis module + casting stand | 21.0 x 20.0 | 325 mm x 150 mm x 400 mm |
| Biometra Eco-MIni E for 2 gels (1.0 mm thick), w/o casting stand | 1 - 2 (4 with divider plates) | 4 x 15 | Yes | Yes | 9.4 x 8.0 | 1 | Platinum | 300 mA | 100 V | 200 V | 50 °C | 1.580 mL | 10 W | 30 W | 50 mA | Electrophoresis module + casting stand | 11.0 x 10.0 | 210 mm x 150 mm x 220 mm |
| Biometra Eco-MIni EB for 2 gels (1.0 mm thick), w/o casting stand | 2 (4 with divider plates) | 4 x 15 | Yes | Yes | 9.4 x 8.0 | 1 | Platinum | 300 mA | 100 V | 200 V | 50 °C | 2.180 mL | 10 W | 30 W | 50 mA | Electrophoresis module + casting stand | 11.0 x 10.0 | 210 mm x 150 mm x 250 mm |
| Biometra Eco-MIni EBC for 2 gels (1.0 mm thick), w/o casting stand | 1 - 2 (4 with divider plates) | 4 x 15 | Yes | Yes | 9.4 x 8.0 | 1 | Platinum | 300 mA | 100 V | 200 V | 50 °C | 2.180 mL | 10 W | 30 W | 50 mA | Electrophoresis module + casting stand | 11.0 x 10.0 | 210 mm x 150 mm x 265 mm |
| Biometra Eco-MIni system E for 2 gels (1.0 mm thick) | 1 - 2 (4 with divider plates) | 4 x 15 | Yes | Yes | 9.4 x 8.0 | 1 | Platinum | 300 mA | 100 V | 200 V | 50 °C | 1.580 mL | 10 W | 30 W | 50 mA | Electrophoresis module + stand | 11.0 x 10.0 | 210 mm x 150 mm x 220 mm |
| Biometra Eco-MIni system EB for 2 gels (1.0 mm thick) | 1 - 2 (4 with divider plates) | 4 x 15 | Yes | Yes | 9.4 x 8.0 | 1 | Platinum | 300 mA | 100 V | 200 V | 50 °C | 2.180 mL | 10 W | 30 W | 50 mA | Electrophoresis module + casting stand | 11.0 x 10.0 | 210 mm x 150 mm x 250 mm |
| Biometra Eco-MIni system EBC for 2 gels (1.0 mm thick) | 1 - 2 (4 with divider plates) | 4 x 15 | Yes | Yes | 9.4 x 8.0 | 1 | Platinum | 100 mA | 100 V | 200 V | 50 °C | 2.180 mL | 10 W | 30 W | 50 mA | Electrophoresis module + casting stand | 11.0 x 10.0 | 210 mm x 150 mm x 265 mm |
Order Information
Order number | Description |
|---|---|
| 846-017-401 | Biometra Eco-Maxi EB, 1.0 mm w/o casting stand |
| 846-017-400 | Biometra Eco-Maxi system EB for 2 gels (1.0 mm thick) |
| 846-017-402 | Biometra Eco-Maxi system EBC for 2 gels (1.0 mm thick) |
| 846-017-101 | Biometra Eco-MIni E for 2 gels (1.0 mm thick), w/o casting stand |
| 846-017-103 | Biometra Eco-MIni EB for 2 gels (1.0 mm thick), w/o casting stand |
| 846-017-105 | Biometra Eco-MIni EBC for 2 gels (1.0 mm thick), w/o casting stand |
| 846-017-100 | Biometra Eco-MIni system E for 2 gels (1.0 mm thick) |
| 846-017-102 | Biometra Eco-MIni system EB for 2 gels (1.0 mm thick) |
| 846-017-104 | Biometra Eco-MIni system EBC for 2 gels (1.0 mm thick) |
Accessories
Bigfoot lid, Eco-MIni
Order number: 846-017-172
Blot module, Eco-Maxi for 2 maxi gels
Order number: 846-018-405
Comb, 1.0 mm 12 well, Eco-Maxi
Order number: 846-017-440
Blot module, Tankblot Eco-MIni for 4 Mini-gels
Order number: 846-018-105
Blotting cassette Eco-Maxi for Tankblot Eco-Maxi
Order number: 846-018-411
Comb, 1.0 mm 19 well, Eco-Maxi Comb, 1.0 mm, 19 wells, Eco-Maxi
Order number: 846-017-441
Comb, 1.0 mm, preparative for Eco-Mini
Order number: 846-017-144
Blotting cassette, colored for Tankblot Eco-Mini
Order number: 846-018-111
Comb, 1.0 mm 25 well, Eco-Maxi
Order number: 846-017-442
Comb, 1.5 mm, preparative for Eco-Mini
Order number: 846-017-154
Comb, 1.0 mm 30 well, Eco-Maxi
Order number: 846-017-443
Divider plate, Eco-Mini fixed spacers, 0.75 mm
Order number: 846-017-184
Comb, 1.0 mm, prep., Eco-Maxi
Order number: 846-017-444
Divider plate 1.5 mm spacer for Eco-Mini, with fixed spacers
Order number: 846-017-185
Comb, 1.5 mm 25 well, Eco-Maxi
Order number: 846-017-452
Divider plate 1 mm spacer for Eco-Mini, with fixed spacers
Order number: 846-017-183
Comb 12 well 0.75 Eco-Maxi
Order number: 846-017-430
Divider plate set, 1.0 mm for Eco-Mini, with fixed spacers
Order number: 846-017-187
Comb 19 well 0.75 MTP Eco-Maxi
Order number: 846-017-431
Divider plate set, 1.5 mm for Eco-Mini, with fixed spacers
Order number: 846-017-189
Comb 1.5 mm 19 well MTP for Eco-Maxi
Order number: 846-017-451
Divider plate set 0.75 mm for Eco-Mini, with fixed spacers
Order number: 846-017-188
Comb 25 well 0.75 Eco-Maxi
Order number: 846-017-432
Dummy plate, Eco-Mini
Order number: 846-017-127
Comb 30 well 0.75 Eco-Maxi
Order number: 34-090-159
Comb 30 well 0.75 Eco-Maxi
Order number: 846-017-433
Comb 1.5 mm, 30 well, Eco-Maxi 1 piece
Order number: 846-017-453
Electrophor. module Eco-Mini
Order number: 846-017-175
Comb preparative 0.75 Eco-Maxi
Order number: 846-017-434
Gel casting stand, Eco-Mini for up to 2 gels
Order number: 846-017-180
Comb 1.5 mm, prep., Eco-Maxi
Order number: 846-017-454
Glass plate, Eco-Mini with fixed spacers, 0.75 mm
Order number: 846-017-121
Dummy plate, Eco-Maxi with fixed spacers, 1.0 mm
Order number: 846-017-426
Glass plate, Eco-Mini with fixed spacers, 1.0 mm
Order number: 846-017-120
Electroph. module, Eco-Maxi
Order number: 846-017-475
Glass plate, Eco-Mini with fixed spacers, 1.5 mm
Order number: 846-017-122
Comb, 0.75 mm, 10 wells for Eco-Mini
Order number: 846-017-131
Gel casting stand, Eco-Maxi for 2 gels
Order number: 846-017-480
Comb, 1.0 mm, 10 wells for Eco-Mini
Order number: 846-017-141
Glass plate, 0.75 mm, Eco-Maxi with fixed spacers
Order number: 846-017-421
Comb, 1.5 mm, 10 wells for Eco-Mini
Order number: 846-017-151
Foam pads, Eco-Maxi 4 pieces
Order number: 846-018-413
Glass plate, 1.0 mm, Eco-Maxi with fixed spacers
Order number: 846-017-420
Comb, 0.75 mm, 12 wells for Eco-Mini
Order number: 846-017-132
Glass plate, 1.5 mm, Eco-Maxi with fixed spacers
Order number: 846-017-423
Comb 1.5 mm 12 wells, Eco-Maxi
Order number: 846-017-450
Comb, 1.0 mm, 12 wells for Eco-Mini
Order number: 846-017-142
Comb, 1.5 mm, 12 wells for Eco-Mini
Order number: 846-017-152
Notched glass plate Eco-Maxi
Order number: 846-017-425
Comb, 0.75 mm, 15 wells for Eco-Mini
Order number: 846-017-133
Comb, 1.0 mm, 15 wells for Eco-Mini
Order number: 846-017-143
Gel casting system XS for Compact XS/S
Order number: 846-7-090-158
Comb, 0.75 mm, 9 wells for Eco-Mini
Order number: 846-017-130
Comb, 1.5 mm, 15 wells for Eco-Mini
Order number: 846-017-153
Comb, 1.0 mm, 9 wells for Eco-Mini
Order number: 846-017-140
Foam pads, Tanklot Eco-Mini 4 pieces
Order number: 846-018-113
Comb, 1.5 mm, 9 wells, MTP for Eco-Mini
Order number: 846-017-150
Comb, 0.75 mm, preparative for Eco-Mini
Order number: 846-017-134
Notched glass plate, Eco-MIni 4 pieces
Order number: 846-017-125
Buffer tank E, Eco-Mini without cooling
Order number: 846-017-169
Buffer tank EBC, Eco-Mini with cooling
Order number: 846-017-171
Related Products
Biometra Minigel-Twin
The proven double gel system for polyacrylamide gels convinces with leak-proof gel casting and low buffer requirements.
Biometra P25/P25T
Low voltage power supplies with timer function - the perfect choice for electrophoresis and blotting.
Biometra Fastblot
The Biometra Fastblot is an electro-blotting device to transfer proteins and nucleic acids from polyacrylamide gels to nitrocellulose or other carrier membranes.
Biometra PS 300TP
Low voltage power supply with timer function - a compact choice for electrophoresis
Downloads
| Title | Language | Info |
|---|---|---|
| Brochure EcoLine Blotting Electrophoresis EN) | English | PDF, 674 KB |
