Biometra Compact XS/S, M, L/XL Specially Designed for Daily Laboratory Work
- Wide variety of chamber formats
- Sophisticated chamber design for Easy and safe handling
- UV-transparent gel trays
The agarose gel electrophoresis family convinces with its robust and user-friendly design in daily laboratory routine and offers the suitable solution for small to high sample throughput via the different chamber sizes.
Your Reliable Partner in Everyday Laboratory Work
The Biometra Compact series consist of five models for a different sample throughput. The innovative concept of ergonomic design, simple operation and outstanding performance has been proven one´s worth many times, making the Compact family the perfect choice for manual nucleic acid analysis by agarose gel electrophoresis.

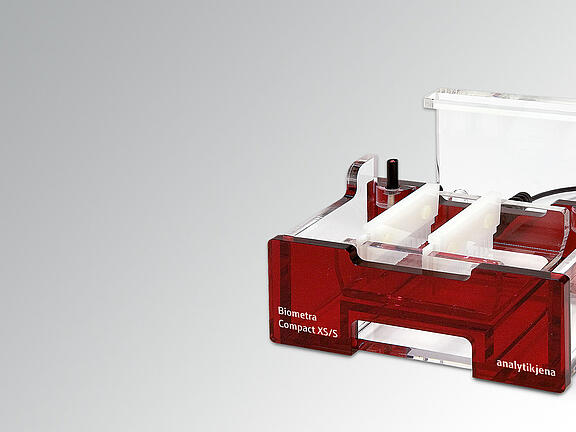

- Compact XS / S for mini gels with gel tray XS or S
- Compact M for midi gels with gel tray M
- Compact L / XL for maxi gels with gel tray L or XL
Brochures
| Title | Language | Info |
|---|---|---|
| Broschüre Biometra Compact Familie (DE) | de | PDF, 1 MB |
| Brochure Biometra Compact Family (EN) | en | PDF, 1 MB |
Nucleic Acid Analysis in Perfection
The Biometra Compact family was developed for professional measurements and analysis of nucleic acids in research and routine laboratories. Due to their excellent resolution, the horizontal electrophoresis systems offer a greater precision and thus better data interpretation accuracy, even with small nucleic acid fragments.
Well suited for daily use, the Biometra Compact systems are characterized by a high-quality acrylic construction, a unique bigfoot safety lid, and the use of durable components such as corrosion protected platinum electrodes and gold-coated plugs. This guarantees maximum durability and reliability in all applications.
- Large variety of chamber formats
- High-quality components and stable design for lasting reliability
- Reliable operational safety
- Simplified handling due to unique gel casting systems
- Extensive accessories for maximum flexibility

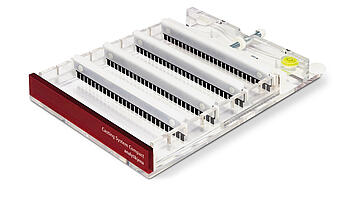

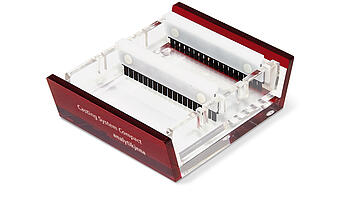

In terms of speed and ease of use, the innovative gel casting systems set new standards. Specially developed "plug-and-cast" gel casting systems for the gel tray sizes XS, S and M guarantee leak-proof casting of gels in seconds: Insert gel tray - press down lightly with your hand - done! For the Maxi gels L and XL, an easy-to-use gel casting system with adjustable feet and a leveling device is available.
Products
Biometra Compact L for gel size 23.9 cm x 20.0 cm
The Biometra Compact family is a robust series for convenient agarose gel electrophoresis.
Order number: 846-025-300
Biometra Compact L system for gel size 23.9 cm x 20.0 cm
The Biometra Compact family is a robust series for convenient agarose gel electrophoresis.
Order number: 846-025-399
Biometra Compact M for gel size 12.4 cm x 14.5 cm
The Biometra Compact family is a robust series for convenient agarose gel electrophoresis.
Order number: 846-025-200
Biometra Compact M system for gel size 12.4 cm x 14.5 cm
The Biometra Compact family is a robust series for convenient agarose gel electrophoresis.
Order number: 846-025-299
Biometra Compact S for gel size 8.2 cm x 10.5 cm
The Biometra Compact family is a robust series for convenient agarose gel electrophoresis.
Order number: 846-025-100
Biometra Compact S system for gel size 8.2 cm x 10.5 cm
The Biometra Compact family is a robust series for convenient agarose gel electrophoresis.
Order number: 846-025-199
Biometra Compact XL for gel size 23.9 cm x 25.0 cm
The Biometra Compact family is a robust series for convenient agarose gel electrophoresis.
Order number: 846-025-400
Biometra Compact XL system for gel size 23.9 cm x 25.0 cm
The Biometra Compact family is a robust series for convenient agarose gel electrophoresis.
Order number: 846-025-499
Biometra Compact XS for gel size 8.2 cm x 7.1 cm
The Biometra Compact family is a robust series for convenient agarose gel electrophoresis.
Order number: 846-025-000
Biometra Compact XS system for gel size 8.2 cm x 7.1 cm
The Biometra Compact family is a robust series for convenient agarose gel electrophoresis.
Order number: 846-025-099
Technical Data
Max. power | Max. current | Leveling | Gel size (W x D, cm) | Max. buffer temperature | Buffer volume | Gel casting system | Max. capacity | Max. voltage | Electrode distance | |
|---|---|---|---|---|---|---|---|---|---|---|
| Biometra Compact L for gel size 23.9 cm x 20.0 cm | 30 W | 500 mA | Yes | 23.9 cm x 25.1 cm | 50 °C | 1660 mL | Gel casting system with adjustable feet and leveling | 312 Samples with 6 combs | 250 V | 34 cm |
| Biometra Compact L system for gel size 23.9 cm x 20.0 cm | 30 W | 500 mA | Yes | 23.9 cm x 20.0 cm | 50 °C | 1660 mL | Plug & Cast | 312 Samples with 6 combs | 250 V | 34 cm |
| Biometra Compact M for gel size 12.4 cm x 14.5 cm | 20 W | 250 mA | No | 12.4 cm x 14.5 cm | 50 °C | 580 mL | Plug & Cast | 100 samples with 4 combs | 180 V | 21.5 cm |
| Biometra Compact M system for gel size 12.4 cm x 14.5 cm | 20 W | 250 mA | No | 12.4 cm x 14.5 cm | 50 °C | 580 mL | Plug & Cast | 100 Samples with 4 combs | 180 V | 21.5 cm |
| Biometra Compact S for gel size 8.2 cm x 10.5 cm | 12 W | 200 mA | No | 8.2 cm x 10.6 cm | 50 °C | 360 mL | Plug & Cast | 48 Samples with 3 combs | 180 V | 17 cm |
| Biometra Compact S system for gel size 8.2 cm x 10.5 cm | 12 W | 200 mA | No | 8.2 cm x 10.5 cm | 50 °C | 360 mL | Plug & Cast | 48 Samples with 3 combs | 180 V | 17 cm |
| Biometra Compact XL for gel size 23.9 cm x 25.0 cm | 30 W | 500 mA | Yes | 23.9 cm x 25.1 cm | 50 °C | 1660 mL | Gel casting with adjustable feet and leveling | 416 Samples with 8 combs | 250 V | 34 cm |
| Biometra Compact XL system for gel size 23.9 cm x 25.0 cm | 30 W | 500 mA | Yes | 23.9 cm x 25.1 cm | 50 °C | 1660 mL | Gel casting system with adjustable feet and leveling | 416 Samples with 8 combs | 250 V | 34 cm |
| Biometra Compact XS for gel size 8.2 cm x 7.1 cm | 12 W | 200 mA | No | 8.2 cm x 7.1 cm | 50 °C | 360 mL | Plug & Cast | 32 Samples with 2 combs | 180 V | 17 cm |
| Biometra Compact XS system for gel size 8.2 cm x 7.1 cm | 12 W | 200 mA | No | 8.2 cm x 7.1 cm | 50 °C | 360 mL | Plug & Cast | 32 Samples with 2 combs | 180 V | 17 cm |
Order Information
Order number | Description |
|---|---|
| 846-025-300 | Biometra Compact L for gel size 23.9 x 20.0 cm |
| 846-025-399 | Biometra Compact L system for gel size 23.9 x 20.0 cm, incl. gel casting system |
| 846-025-200 | Biometra Compact M for gel size 12.4 cm x 14.5 cm |
| 846-025-299 | Biometra Compact M system for gel size 12.4 x 14.5 cm, incl. gel casting system |
| 846-025-100 | Biometra Compact S for gel 8.2 cm x 10.5 cm |
| 846-025-199 | Biometra Compact S system for gel 8.2 x 10.5 cm, incl. gel casting system |
| 846-025-400 | Biometra Compact XL for gel size 23.9 x 25.0 cm |
| 846-025-499 | Biometra Compact XL system for gel size 23.9 x 25.0 cm, incl. gel casting system |
| 846-025-000 | Biometra Compact XS for gel 8.2 x 7.1 cm |
| 846-025-099 | Biometra Compact XS system for gel 8.2 x 7.1 cm, incl. gel casting system |
Accessories
Comb 1.0 mm 11 wells XS/S for Compact XS/S
Order number: 846-025-002
Comb 1.0 mm 11 wells, M for Compact M
Order number: 846-025-201
Comb 1.0 mm 22 wells, L/XL for Compact L/XL
Order number: 846-025-301
Comb 1.0 mm 13 wells MTP, M for Compact M
Order number: 846-025-202
Comb 1.0 mm 13 wells, XS/S for Compact XS/S
Order number: 846-025-003
Comb 1.0 mm 36 wells, L/XL for Compact L/XL
Order number: 846-025-303
Comb 1.0 mm 18 wells, M for Compact M
Order number: 846-025-203
Comb 1.0 mm 42 wells, L/XL for Compact L/XL
Order number: 846-025-304
Comb 1.0 mm 8 wells MTP, XS/S for Compact XS/S
Order number: 846-025-001
Comb 1.0 mm 21 wells, M for Compact M
Order number: 846-025-204
Comb 1.0 mm 52 wells, L/XL for Compact L/XL
Order number: 846-025-305
Comb 1.5 mm 11 wells, XS/S for Compact XS/S
Order number: 846-025-012
Comb 1 mm 25 well MTP, M for Compact M
Order number: 846-025-205
Comb 1.0 mm 26wells MTP,L / XL for Compact L/XL
Order number: 846-025-302
Comb 1.5 mm 13 wells, XS/S for Compact XS/S
Order number: 846-025-013
Comb 1.5 mm 16 wells MTP, XS/S for Compact XS/S
Order number: 846-025-014
Prep. comb 1.5 mm 1 + 2 wells for Compact L/XL
Order number: 846-025-316
Prep. comb 1.5 mm 1 + 2 wells for Compact M
Order number: 846-025-216
Comb 1.5 mm 11 wells, M for Compact M
Order number: 846-025-211
Comb 1.5 mm 22 wells, L/XL for Compact L/XL
Order number: 846-025-311
Comb 1.5 mm 8 wells MTP, XS/S for Compact XS/S
Order number: 846-025-011
Comb 1 mm 16 wells MTP, XS/S for Compact XS/S
Order number: 846-025-004
Comb 1.5 mm 13 wells MTP, M for Compact M
Order number: 846-025-212
Comb 1.5 mm 26 wells, L/XL for Compact L/XL
Order number: 846-025-312
Comb 1.5 mm 18 wells, M for Compact M
Order number: 846-025-213
Comb 1.5 mm 36 wells, L/XL for Compact L/XL
Order number: 846-025-313
Gel casting system S for Compact S
Order number: 846-025-110
Comb 1.5 mm 21 wells, M for Compact M
Order number: 846-025-214
Comb 1.5 mm 42 wells,L/XL for Compact L/XL
Order number: 846-025-314
Gel casting system XS for Compact XS/S
Order number: 846-025-010
Comb 1.5 mm 25 wells MTP, M for Compact M
Order number: 846-025-215
Comb 1.5 mm 52 wells MTP, L/XL for Compact L/XL
Order number: 846-025-315
Gel tray 8.2 cm x 10.5 cm XS/S for Compact XS/S
Order number: 846-025-021
Gel casting system L/XL for Compact L/XL
Order number: 846-025-310
Gel casting system M for Compact M
Order number: 846-025-210
Gel tray 8.2 cm x 7.1 cm, XS/S for Compact XS/S
Order number: 846-025-020
Gel tray 23.9 cm x 20.0 cm, L for Compact L/XL
Order number: 846-025-320
Loading strips M for Compact M, adhesive
Order number: 846-025-206
Loading strips XS/S for Compact XS/S, adhesive
Order number: 846-025-006
Gel tray 12.4 cm x 14.5 cm, M for Compact M
Order number: 846-025-221
Gel tray 23.9 cm x 25.0 cm, XL for Compact L/XL
Order number: 846-025-321
Prep. comb 1.5 mm 1 + 2 wells for Compact XS/S
Order number: 846-025-015
Loading strips L/XL for Compact L/XL, adhesive
Order number: 846-025-306
