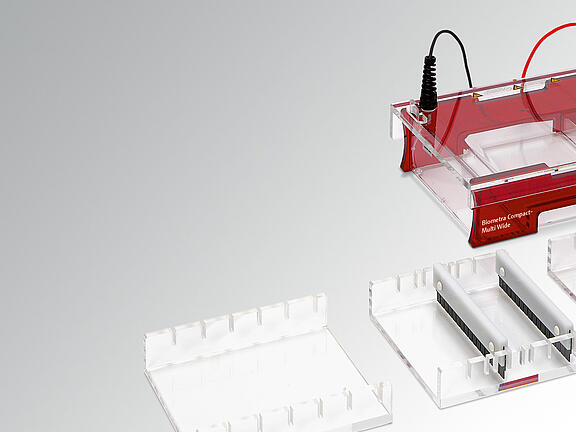

Biometra Compact Multi-Wide Powerful with Maximum Flexibility

Best solution for your needs in research and routine laboratories
Robust quality design
Efficient separation of nucleic acid fragments without loss of resolution

The Biometra Compact Multi-Wide series impresses with the combination of a stable design with a high application versatility already in a single system. It therefore belongs to the basic equipment of every laboratory with agarose gel electrophoresis applications.

Always a Suitable Solution for Your Sample Separation

The Biometra Compact Multi-Wide series combines the high quality and sophisticated, user-friendly design of the Biometra Compact family with high application versatility for medium to high sample throughput. One electrophoresis chamber size can separate nucleic acid samples in medium to high numbers, as required for the task at hand, using four different gel trays with different run lengths. The associated pouring system is equally compatible with the four different gel trays.

Four gel sizes: 15 cm x 7/10/15/18 cm
Maximum number of samples: 192
One casting system for all gel trays

Download Product Information

High Application Variety Thanks to High System Flexibility

The Biometra Compact Multi-Wide is the most versatile member of the Compact Family and completes the electrophoresis portfolio for the identification, quantification and purification of nucleic acid fragments. Based on the Compact Family philosophy, the system offers a sophisticated chamber design , high-quality platinum electrodes and corrosion-resistant plugs for maximum reliability. With its four different gel tray lengths, it is the most variable model of the Compact Family for rapid screening as well as multiple sample loading with short or long separation distances. Depending on the size of the gel, up to 6 combs can be placed on the gel tray simultaneously, that a max. sample capacity of 192 samples could be achieved.

UV-transparent gel trays

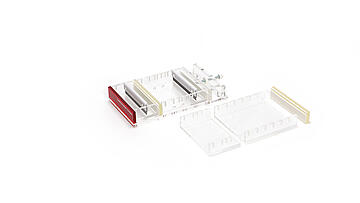

Universal gel casting system for different gel tray length
Extensive range of accessories for maximum flexibility

The universal gel casting system is designed for gel tray lengths from 7 cm up to 18 cm. A movable fixing element provide the flexibility required to quickly and securely fix the different length gel trays for the casting of gels. With mobile gel casting dams, multiple gels can simply be poured simultaneously:

3 gel tablets of 7 cm length
2 gel trays of 10 cm length
1 gel tray of 7 cm length + 1 gel tray of 10 cm length
1 gel tray of 7 cm length + 1 gel tray of 15 cm length

Products

Biometra Compact Multi-Wide for gel size 15 cm x 15 cm

The Biometra Compact Multi-Wide systems offer convenient diversity for all agarose gel electrophoresis applications with medium and also high sample numbers.

Order number: 846-025-503

Biometra Compact Multi-Wide for gel size 15 cm x 18 cm

The Biometra Compact Multi-Wide systems offer convenient diversity for all agarose gel electrophoresis applications with medium and also high sample numbers.

Order number: 846-025-504

Biometra Compact Multi-Wide for gel size 15 cm x 7 cm

The Biometra Compact Multi-Wide systems offer convenient diversity for all agarose gel electrophoresis applications with medium and also high sample numbers.

Order number: 846-025-501

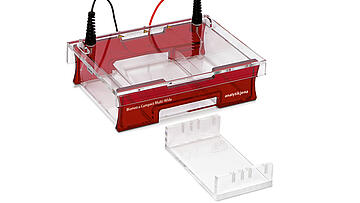

Biometra Compact Multi-Wide System for gel size 15 cm x 10 cm

The Biometra Compact Multi-Wide systems offer convenient diversity for all agarose gel electrophoresis applications with medium and also high sample numbers.

Order number: 846-025-592

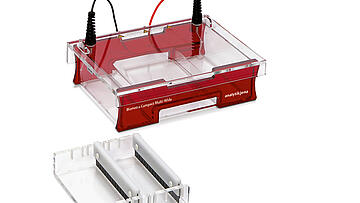

Biometra Compact Multi-Wide System for gel size 15 cm x 15 cm

The Biometra Compact Multi-Wide systems offer convenient diversity for all agarose gel electrophoresis applications with medium and also high sample numbers.

Order number: 846-025-593

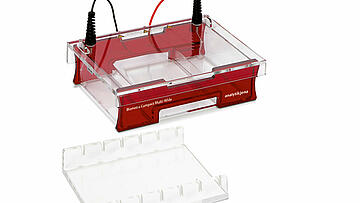

Biometra Compact Multi-Wide System for gel size 15 cm x 18 cm

The Biometra Compact Multi-Wide systems offer convenient diversity for all agarose gel electrophoresis applications with medium and also high sample numbers.

Order number: 846-025-594

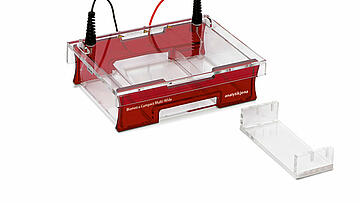

Biometra Compact Multi-Wide system for gel size 15 cm x 7 cm

The Biometra Compact Multi-Wide systems offer convenient diversity for all agarose gel electrophoresis applications with medium and also high sample numbers.

Order number: 846-025-591

Biometra Compact Multi-Wide System for gel size 15 cm x 7/10/15/18 cm

The Biometra Compact Multi-Wide systems offer convenient diversity for all agarose gel electrophoresis applications with medium and also high sample numbers.

Order number: 846-025-599

Biometra Compact Multi-Wide without accessories

The Biometra Compact Multi-Wide systems offer convenient diversity for all agarose gel electrophoresis applications with medium and also high sample numbers.

Order number: 846-025-500

Compact Multi-Wide for gels size 15 cm x 7/10/15/18 cm

The Biometra Compact Multi-Wide systems offer convenient diversity for all agarose gel electrophoresis applications with medium and also high sample numbers.

Order number: 846-025-509

Technical Data

	Max. power	Max. current	Leveling	Gel size (W x D, cm)	Max. buffer temperature	Buffer volume	Gel casting system	Max. capacity	Max. voltage	Electrode distance
Biometra Compact Multi-Wide for gel size 15 cm x 15 cm 846-025-503	20 W	250 mA	No	15 cm x 15 cm	50 °C	1300 mL	Universal gel casting system with adjustable feet	160 Samples with 5 combs	180 V	25 cm
Biometra Compact Multi-Wide for gel size 15 cm x 18 cm 846-025-504	20 W	250 mA	No	15 cm x 18 cm	50 °C	1300 mL	Universal gel casting system with adjustable feet	192 Samples with 6 combs	180 V	25 cm
Biometra Compact Multi-Wide for gel size 15 cm x 7 cm 846-025-501	20 W	250 mA	No	15 cm x 7 cm	50 °C	1300 mL	Universal gel casting system with adjustable feet	192 Samples with 6 combs	180 V	25 cm
Biometra Compact Multi-Wide System for gel size 15 cm x 10 cm 846-025-592	20 W	250 mA	No	15 cm x 10 cm	50 °C	1300 mL	Universal gel casting system with adjustable feet	96 Samples with 3 combs	180 V	25 cm
Biometra Compact Multi-Wide System for gel size 15 cm x 15 cm 846-025-593	20 W	250 mA	No	15 cm x 15 cm	50 °C	1300 mL	Universal gel casting system with adjustable feet	160 Samples with 5 combs	180 V	25 cm
Biometra Compact Multi-Wide System for gel size 15 cm x 18 cm 846-025-594	20 W	250 mA	No	15 cm x 18 cm	50 °C	1300 mL	Universal gel casting system with adjustable feet	192 Samples with 6 combs	180 V	25 cm
Biometra Compact Multi-Wide system for gel size 15 cm x 7 cm 846-025-591	20 W	250 mA	No	15 cm x 7 cm	50 °C	1300 mL	Universal gel casting system with adjustable feet	64 Samples with 2 combs	180 V	25 cm
Biometra Compact Multi-Wide System for gel size 15 cm x 7/10/15/18 cm 846-025-599	20 W	250 mA	No	15 cm x 7/10/15/18 cm	50 °C	1300 mL	Universal gel casting system with adjustable feet	192 Samples with 6 combs	180 V	25 cm
Biometra Compact Multi-Wide without accessories 846-025-500	20 W	250 mA	No	Depends on gel tray	50 °C	1300 mL	Universal gel casting system with adjustable feet	Depends on gel tray	180 V	25 cm
Compact Multi-Wide for gels size 15 cm x 7/10/15/18 cm 846-025-509	20 W	250 mA	No	15 cm x 7/10/15/18 cm	50 °C	1300 mL	Universal gel casting system with adjustable feet	192 Samples with 6 combs	180 V	25 cm

Order Information

Order number	Description
846-025-503	Biometra Compact Multi-Wide for gel size 15 x 15 cm
846-025-504	Biometra Compact Multi-Wide for gel size 15 x 18 cm
846-025-501	Biometra Compact Multi-Wide for gel size 15 cm x 7 cm
846-025-592	Biometra Compact Multi-Wide for gel size 15 x 10 cm, incl. gel casting system
846-025-593	Biometra Compact Multi-Wide Compact Multi-Wide System, 15 cm x 15 cm, incl. gel casting system
846-025-594	Biometra Compact Multi-Wide for gel size 15 cm x 18 cm
846-025-591	Biometra Compact Multi-Wide for gel size 15 x 7 cm
846-025-599	Biometra Compact Multi-Wide for gel sizes 15 cm x 7/10/15/18 cm, incl. gel casting system
846-025-500	Biometra Compact Multi-Wide without accessories
846-025-509	Compact Multi-Wide for gels size 15 cm x 7/10/15/18 cm

Accessories

Casting/levelling tray 20 cm x 30 cm, for Compact Multi-Wide

Order number: 846-025-550

Comb 1,0 mm, 32 wells for Compact Multi-Wide

Order number: 846-025-535

Prep. comb, 1.0 mm 2 + 2 wells for Compact Multi-Wide, 2 prep. + 2 marker wells

Order number: 846-025-538

Comb, 1.5 mm,16 wells for Compact Multi-Wide

Order number: 846-025-542

Comb, 1.5 mm, 26 well for Compact Multi-Wide

Order number: 846-025-544

Comb, 1.5 mm 2 prep + 2 marker for Compact Multi-Wide

Order number: 846-025-548

Comb, 1.5 mm 4 prep + 2 marker for Compact Multi-Wide

Order number: 846-025-549

Biometra Compact Multi-Wide for gel size 15 cm x 10 cm

Order number: 846-025-502

Gel tray 15 cm x 7 cm for Compact Multi-Wide

Order number: 846-025-521

Gel tray 15 cm x 10 cm for Compact Multi-Wide

Order number: 846-025-522

Gel tray 15 cm x 15 cm for Compact Multi-Wide

Order number: 846-025-523

Gel tray 15 cm x 18 cm for Compact Multi-Wide

Order number: 846-025-524

Comb, 1,0 mm, 16 well for Compact Multi-Wide

Order number: 846-025-532

Comb, 1,0 mm, 22 well for Compact Multi-Wide

Order number: 846-025-533

Comb, 1,0 mm, 26 well for Compact Multi-Wide

Order number: 846-025-534

Comb, 1,5 mm, 14 well for Compact Multi-Wide

Order number: 846-025-541

Downloads

Title	Language	Info
Brochure Biometra Compact Family (EN)	English	PDF, 1 MB
Broschüre Biometra Compact Familie (DE)	German	PDF, 1 MB
