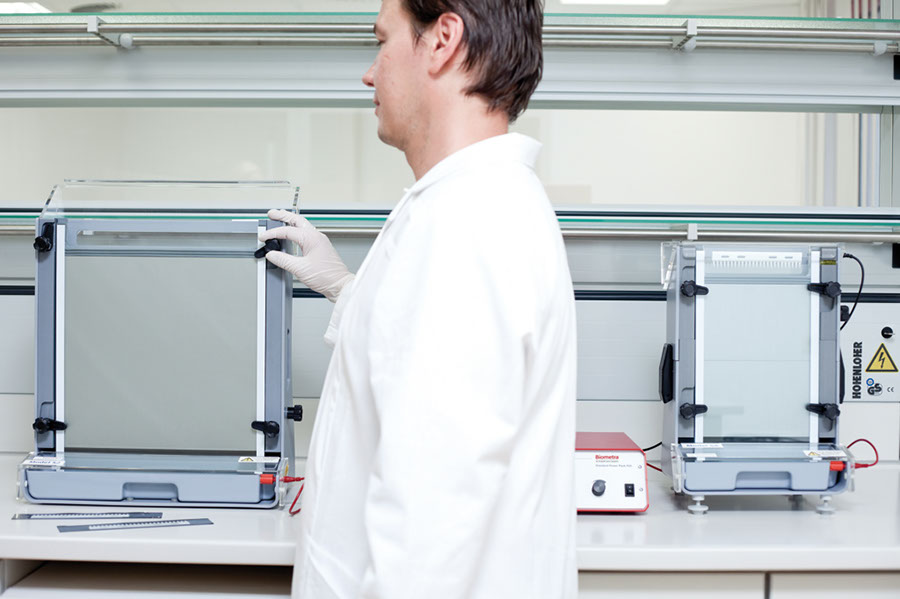

Biometra Model S2

Features

Produces a 30 cm x 40 cm gel that fits easily on a standard
14 in x 17 in X-ray film
Integral aluminum plate for even heat distribution to minimise band curvation (“smiling”)
Removable lower buffer tray with a separate chamber for collecting the buffer from the upper reservoir, eliminating the need to move the apparatus for buffer disposal
Built-in integral clamps hold the gel in place
Unique gasket sealing system ensures leak-free operation without grease or notched plates
Safety interlock lids
Additional combs and apparatus components available separately

Product Info

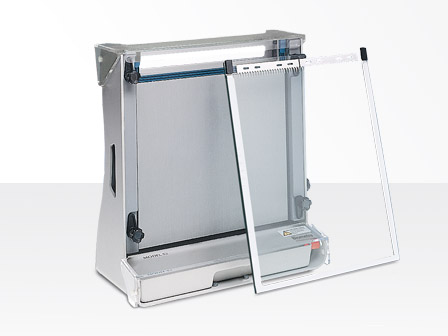

Sequencing Gel Electrophoresis System

The Model S2 Sequencing Gel Electrophoresis Apparatus is designed for vertical polyacrylamide gel separations of oligo- and polynucleotides, nucleic acid sequencing, genotyping and polymorphic studies.

Technical Data

Model	Apparatus dimensions (W x D x H)	Gel dimensions (W x H)
S2	42,2 cm × 21,6 cm × 44,5 cm	31,0 cm × 38,5 cm
Working buffer volume: 1 L

Order Info

Order number	Item
846-21105036	Model S2: Complete with power cords, four 14 cm 0.4 mm vinyl sharktooth combs, set of 0.4 mm thick vinyl side spacers; pair of glass plates, roll of gel sealing tape^a

Square tooth combs for model S2001 and S2
Order number	Number of teeth	Comb thickness	Volume/slot
846-21035043^a	16	0.4 mm	25 μl
846-21035076	20	0.4 mm	19 μl
846-21035068^a	16	1.6 mm	100 µl
846-21035118	32	0.8 mm	20 μl

Shark tooth combs
Order number	Comb length	Comb thickness	Comb thickness	Volume/ slot	Pcs./ Pckg.
846-21045018	14 cm	0.4 mm	25	2 – 4 μl	6
846-21046016	28 cm	0.4 mm	50	2 – 4 μl	2
846-21045026^a	14 cm	0.4 mm	49	1 – 2 μl	4
846-21035134^a	28 cm	0.35 mm	62	2 – 4 μl	2

Replacement parts for Sequencing Apparatus Model S2
Order number	Description	Dimensions	Content
846-21105366	Spacer Set for Model S2001/S2^a	0.35 mm	2 Spacer, 6 End blocks
846-21108014	Spacer Set for Model S2001/S2	0.4 mm	2 Spacer, 6 End blocks
846-31109010	Spacer Set for Model S2001/S2^a	0.8 mm	2 Spacer, 6 End blocks
846-31109028	Spacer Set for Model S2001/S2^a	1.6 mm	2 Spacer, 6 End blocks
846-21107016	Wedge Spacer for Model S2001/S2^a	0.4 – 1.2 mm	2 Spacer
846-21105069	Spacer Set for Model S2001/S2^a	0.8 mm	1 Spacer
846-21105382	Spacer foam blocks^a		12 Pieces
846-11034014	Glass Plate Set for S2001/S2	33 cm × 39 cm	2 Plates
846-11032018	Gel Sealing Tape		1 roll
846-21105358	Sealing for buffer chamber S2001/S2		1 Pieces
846-11098019	Clamps for Gel Sandwich^a		12 Pieces
846-21105283	Surface temperature monitor strips^a		3 Pieces
^a Under Discontinuation. Sale of remaining stocks.
