Biometra TSC ThermoShaker Thermomixer for All Applications Which Need Heating, Cooling and/or Mixing

Compact Benchtop Thermomixer with Cooling Feature

'The ThermoShaker TSC is a thermomixer with heating and cooling function, as well with a variable mixing speed from 250 rpm to 1,400 rpm. Active cooling with Peltier technology allows a temperature adjustment from + 4 °C to + 100 °C. Hereby, the application range is significantly enhanced compared to the ThermoShaker TS1. Five removable block modules for 0.2 mL, 0.5 mL, 1.5 mL, 2.0 mL and 96 well microtiter plates (PCR-plates) meet the requirements of most laboratory applications. Choosing the temperature calibration function allows the user to calibrate the unit over a range of approx. ± 6% of the selected temperature to compensate differences in the thermal behavior of tubes or MTP‘s from different manufacturers. The variable shaking speed from 250 rpm to 1,400 rpm combined with the 2 mm shaking orbit and the “Soft-Start“ function allows gentle to vigorous shaking. The high-quality and extremely quiet motor guarantees controlled and reproducible shaking throughout the shaking range. A special counter weight technology serves for a stable stand, same with TS1. Shaking can be configured for continuous or timed operation with buzzer and automatic switch-off. The new temperature calibration option allows the calibration of the temperature currently shown in the display by ± 6%. This can be used to compensate for differences in the thermal behavior of tubes and PCR plates from different suppliers.

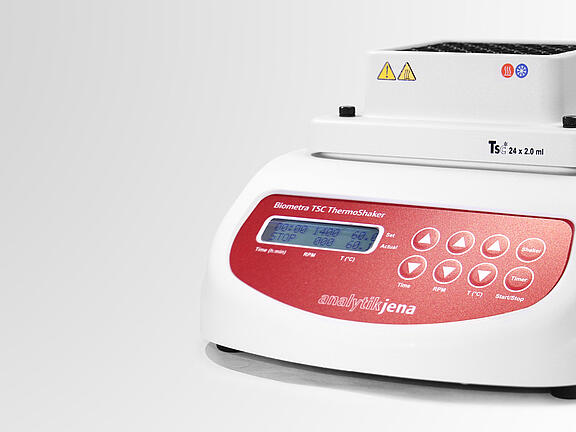

The ThermoShaker TSC has been designed for easy and optimal operation. Temperature, speed and time are indicated on the two-line display for set and actual values both. The TSC, as the TS1, is very compact, with low profile and small footprint of 205 mm × 230 mm × 130 mm (W × D × H). Additionally the low voltage power supply enables safe cold room or incubator operation.
