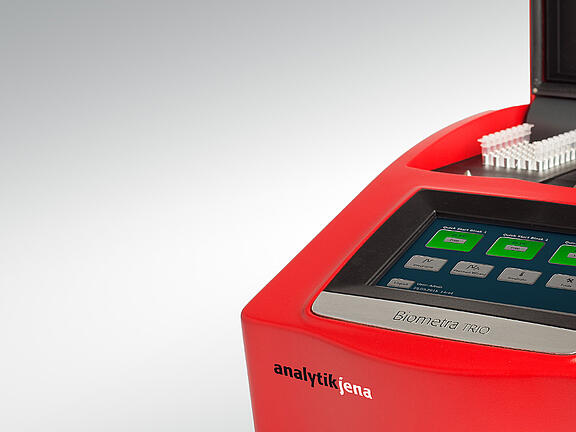

Biometra TRIO Series Three PCR Devices in One

  • Three independent sample blocks for ultimate flexibility
  • Temperature Optimization Step technology to determine the optimal annealing temperature
  • Protocol Wizard and Advanced User Management included for convenient operation

The Biometra TRIO is a unique PCR system that provides you with maximum flexibility, in which three different PCR protocols can run simultaneously or when a large sample number shall be processed.

More than 30 Years PCR Competence for Research and Routine Use

In the Analytik Jena thermal cycler portfolio, every user will find the right device: The Biometra product family offers PCR devices ranging from standard to premium equipment – all designed in line with the common principles of being reliable, convenient, and precise.

  • Designed for error-free use in versatile laboratory environments: universal block design and heating lid with High-Performance Smart Lid (HPSL) technology for unrestricted use of different plastic containers and plates
  • Easily optimize your PCR protocols using the TOS (Temperature Optimization Step) function
  • Full reliability of your results: The high-precision block temperature control system provides high heating and cooling rates and excellent temperature homogeneity for constant conditions across all sample positions.

Download Product Information

Tradition Meets Innovation

Analytik Jena can look back on a long tradition of developing high-quality, highly precise analytical systems. The Biometra thermal cyclers stand for high-performance sample blocks. Amplification results are always excellent and reliable with ideal reproducibility. The Biometra thermal cycler family offers a range of high-quality models to meet individual user needs.

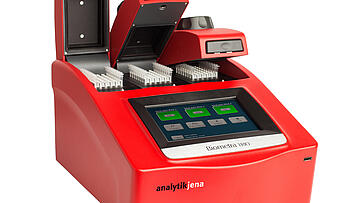

The Biometra TRIO thermal cycler includes three independent blocks in one instrument. Both multiuser environments as well as users with lower sample numbers but different samples will enjoy this model. The three-block design and the specific Temperature Optimization Step function support the fast optimization of ideal annealing temperatures. Highly accurate block control and heating rates up to 5°C/s lead to highly specific and fast results. You can use the three sample blocks for 0.2 mL tubes/plates or 0.5 mL tubes to amplify or incubate a large number of samples at the same time. Laboratories that often use new protocols benefit from this versatility. The professional user management is perfect for laboratories with a large number of users.

Products

Biometra TRIO 30, 100 V

The "Three-in-one" thermal cycler with three independly usable 30 well blocks for maximum flexibility or highthroughput

Order number: 846-5-070-720

Biometra TRIO 30, 115 V

The "Three-in-one" thermal cycler with three independly usable 30 well blocks for maximum flexibility or highthroughput

Order number: 846-4-070-720

Biometra TRIO 30, 230 V

The "Three-in-one" thermal cycler with three independly usable 30 well blocks for maximum flexibility or highthroughput.

It is available as 100 V, 115 V and 230 V version.

Order number: 846-2-070-720

Biometra TRIO 48, 230 V

The "Three-in-one" thermal cycler with three independly usable 48 well blocks for maximum flexibility or highthroughput.

It is available as 100 V, 115 V and 230 V version.

Order number: 846-2-070-723

Biometra TRIO Combi, 230 V

The "Three-in-one" thermal cycler with three independly usable combi blocks for maximum flexibility or highthroughput.

It is available as 100 V, 115 V and 230 V version.

Order number: 846-2-070-724

Technical Data

Sample Block

Block capacity

Proposed sample volume

Maximum Heating

Average Heating

Maximum Cooling

Average Cooling

Temperature uniformity

Gradient

Block exchange

Tempering method

Standby temperature

Temperature control mode

Adjustable temperature range

Temperature control accuracy

Lid temperature

Compatible sealing systems

Consumable compatibility

Time increment

Temperature increment/decrement

Required clearance zone

Biometra TRIO 30, 100 V
846-5-070-720

 Aluminum, special alloy 3 x 30 x 0,5 mL tubes 20 - 200 µL 4.0 °C/s 3.6 °C/s 3.6 °C/s 3.2 °C/s +/- 0,20 °C at 55 °C after 15 s no, alternative: TOS program no Peltier elements Down to 4 °C Block Control 3 - 99 °C +/- 0,1 °C 30 - 110 °C Tube lids PCR tubes 0,5 mL 1 - 240 s/cycle +/- 0,1 °C to 20 °C per cycle 10 cm at the rear side

Biometra TRIO 30, 115 V
846-4-070-720

 Aluminum, special alloy 3 x 30 x 0,5 mL tubes 20 - 200 µL 4.0 °C/s 3.6 °C/s 3.6 °C/s 3.2 °C/s +/- 0,20 °C at 55 °C after 15 s no, alternative: TOS program no Peltier elements Down to 4 °C Block Control 3 - 99 °C +/- 0,1 °C 30 - 110 °C Tube lids PCR tubes 0,5 mL 1 - 240 s/cycle +/- 0,1 °C to 20 °C per cycle 10 cm at the rear side

Biometra TRIO 30, 230 V
846-2-070-720

 Aluminum, special alloy 3 x 30 x 0,5 mL tubes 20 - 200 µL 4.0 °C/s 3.6 °C/s 3.6 °C/s 3.2 °C/s +/- 0,20 °C at 55 °C after 15 s no, alternative: TOS program no Peltier elements Down to 4 °C Block Control 3 - 99 °C +/- 0,1 °C 30 - 110 °C Tube lids PCR tubes 0,5 mL 1 - 240 s/cycle +/- 0,1 °C to 20 °C per cycle 10 cm at the rear side

Biometra TRIO 48, 230 V
846-2-070-723

 Aluminum, special alloy 3 x 48 x 0,2 mL tubes, 3 x 48 well microplates, 3 x 6 x 8 well strips, 0,2 mL 5 - 70 µL 5.0 °C/s 4.5 °C/s 4.2 °C/s 3.8 °C/s +/- 0,20 °C at 55 °C after 15 s no, alternative: TOS program no Peltier elements Down to 4 °C Block Control 3 - 99 °C +/- 0,1 °C 30 - 110 °C Sealing foils, tube lids PCR tubes, 48 well microplates, 8 well strips 1 - 240 s/cycle +/- 0,1 °C to 20 °C per cycle 10 cm at the rear side

Biometra TRIO Combi, 230 V
846-2-070-724

 Aluminum, special alloy 3 x 48 x 0,2 mL tubes, 3 x 48 well microplates, 3 x 6 x 8 well strips 0,2 mL, 3 x 18 (or 30 with small lids) 0,5 mL tubes 5 - 140 µL 3 °C/s 2.7 °C/s 2.7 °C/s 2.4 °C/s +/- 0,20 °C at 55 °C after 15 s no, alternative: TOS program no Peltier elements Down to 4 °C Block Control 3 - 99 °C +/- 0,1 °C 30 - 110 °C Sealing foils, tube lids PCR tubes, 48 well microplates, 8 well strips 1 - 240 s/cycle +/- 0,1 °C to 20 °C per cycle 10 cm at the rear side

Order Information

Order number

Description
846-5-070-720 Biometra TRIO 30, 100 V, with 3 x 30 well block (0,5 mL)
846-4-070-720 Biometra TRIO 30, 115 V, with 3 x 30 well block (0,5 mL)
846-2-070-720 Biometra TRIO 30, 230 V, with 3 x 30 well block (0,5 mL)
846-2-070-723 Biometra TRIO 48, 230 V, with 3 x 48 well block (0,2 mL)
846-2-070-724 Biometra TRIO Combi, 230 V, with 3 x 48 well block (0,2 mL) and 3 x 18 well block (0,5 mL) (capacity increases to 35 x 0.5 mL tubes when using tubes with small lids)

"The Biometra devices have proven to be very robust and reliable for complex PCR reactions."Prof. Dr. Ralf Küppers, Professor for Molecular Genetics at Institute for Cell Biology (Cancer Research), University of Duisburg-Essen

Innovation and Experience for the Best PCR Results

Essential for research

For rapid success, it is essential to have suitable tools at hand. For polymerase chain reactions (PCR), optimization of the annealing temperatures is crucial when it comes to achieving accurate results. In the Biometra TRIO three-block device, the Temperature Optimization Step (TOS) function rapidly sets three different annealing temperatures in the three blocks. The programs are started simultaneously. Therefore optimal amplification conditions can be found quickly during a PCR run.

  • Optimization of the PCR protocol for new primer pairs in one run
  • Optimal annealing temperatures lead to the best specificity and yield
  • Easy transfer of results thanks to largely linear temperature steps from column to column
  • Quality through design, innovation and experiences

Biometra thermal cyclers are designed so users can rely on their results. The data accuracy of these systems pairs exceedingly well with its easy to use design.

  • A sophisticated temperature control system without exceeding or falling below the target temperature ensures transparency and maximum experimental reproducibility in all block positions.
  • The High-Performance Smart Lid (HPSL) ensures uniform temperatures and no condensation in the cover/block space, regardless of the plastic materials used.
  • The extremely quiet operation allows for the use of a large number of cyclers in labs with office areas.
  • A broad range of PCR plastics can be used due to the universal block design and adjusting cover pressure.
  • Everybody finds the right thermocycler for themselves from the range of block materials and formats.
  • The instruments come with low space requirements thanks to an efficient air flow design

Software

PCR-Control-App

Easy and uncomplicated

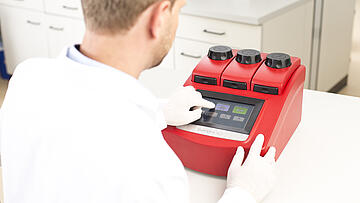

In addition to simple programming directly on the device, Biometra thermal cyclers can be accessed through a network via smartphone or tablet. The PCR Control App also allows for the control and monitoring of devices outside of the laboratory, opening up completely new possibilities.



The iOS- and Android-compatible software has much to offer:

  • Live monitoring of PCR runs
  • Starting and stopping runs
  • Saving and copying programs
  • Reading of parameters and notifications
Product Required Included
Biometra TRIO 30, 115 V (846-4-070-720)
Biometra TRIO 30, 230 V (846-2-070-720)
Biometra TRIO 48, 230 V (846-2-070-723)
Biometra TRIO Combi, 230 V (846-2-070-724)

Consumables

Order number Name
844-70016-0 0.2 mL thin-walled tube with attached flat cap, transparent - 1,000 pcs
844-70016-20D 0,2 mL thin-walled tube, with attached flat cap, transparent - 20 pcs
844-70084-0 8 Well Strip (0.2 mL; HP), transparent, with lid (flat) - 120 pcs
844-70084-12D 8 Well Strip (0.2 mL; HP), transparent, with lid (flat) - 12 pcs
844-70086-0 8 Well Strip (0.2 mL; HP), white, without lid - 120 pcs
844-70086-12D 8 Well Strip (0.2 mL; HP), white, without lid - 12 pcs
844-70085-0 8 Well Strip (0.2 mL; LP), transparent, with lid (flat) - 120 pcs
844-70085-12D 8 Well Strip (0.2 mL; LP), transparent, with lid (flat) - 12 pcs
846-050-226 48 well PCR plate, non-skirted, transparent - 100 pcs

Downloads

Title Language Info
Brochure PCR Biometra Thermal Cycler Series (EN) English PDF, 908 KB
Brochure Product Guide Life Science (EN) English PDF, 2 MB
Broschüre Biometra Thermocycler-Serie (DE) German PDF, 856 KB
Operating Manual Biometra TRIO (DE) German PDF, 4 MB
Operating Manual Biometra TRIO (EN) English PDF, 4 MB
Technical Data Biometra TRIO (EN) English PDF, 505 KB
Technische Daten Biometra TRIO (DE) German PDF, 508 KB
