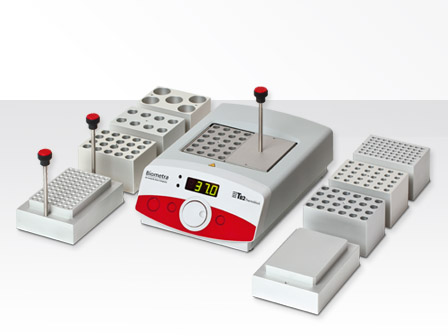

Biometra TB2 Thermoblock
Features
Please note: The TB2 Thermoblock is discontinued. Block adapters are yet available.
- Dual block system
- Removable heating blocks
- 10 heating blocks for various reaction tubes
- Temperature range: RT + 5 °C to 130 °C
Product Info
Please note: The TB2 Thermoblock is discontinued. Block adapters are yet available.
Dry Block Heater for Incubation in Tubes up to 50 ml and up to +130 °C
Precise temperature control
The Thermoblock TB2 has been developed for incubation of reaction tubes at fixed temperatures. Temperature control is achieved by means of a Pt1000 microsensor in order to obtain outstanding block uniformity (± 0.1 °C at 37 °C).
Dual block design
Incubation of a variety of samples contained in different reaction tubes causes no problems for the Thermoblock. The TB2 has a capacity for two blocks, i. e. either two single blocks or one combi block can be heated. Combinations of different single blocks allow simultaneous incubation of e. g. 15 ml Falcon tubes in one block and 1.5 ml reaction tubes in the other block.
Multi Function Control
The ergonomic waterproof front panel facilitates data entry and temperature readings. It features a central multifunctional control knob for:
- Starting the block- Selecting temperatures up to 130 °C
- Choosing the optional external temperature sensor
- Start the count down timer
- Activate the temperature deviation alarm
- Use the delay function for start or stop of the TB2
- Different calibration options
Technical Data
Please note: The TB2 Thermoblock is discontinued. Block adapters are yet available.
Temperature control | |
|---|---|
Temperature range | Ambient +5 °C to 130 °C |
Temperature settings | + 15 °C to 130 °C |
Temperature control accuracy | ± 0.1 °C at 37 °C |
Uniformity within the block | ± 0.1 °C at 37 °C |
Heating Rate | 15 min from 25 °C to 100 °C |
Display | |
Display | Digital, LED |
Display resolution | 0,1 °C |
Removable blocks | |
Reaction tubes | 0.2 ml, 0.5 ml, 1.5 ml, 2.0 ml |
Other vessels | 15 ml, 20 ml, test tubes, microscopic slides |
Microtiter plates | 96 well 0.2 ml, MTP with fl at bottom |
Single Block dimensions | 100 mm x 70 mm x 62.5 mm |
Combi Block dimensions | 140 mm x 100 mm x 49 mm |
Capacity | 2 Single Blocks or 1 Combi Block |
Program functions | |
Timer | Yes |
Temperature deviation alarm | Yes (± 0.5 °C to ± 10 °C) |
Offset | Yes (± 2 °C for single point calibration) |
External temperature sensor | Yes (optional) |
Delay start and stop | Yes |
Calibration | Yes (± 3 °C of the original reading) |
Reset | Yes |
Electrical properties | |
Main switch on instrument | Yes |
Electric power supply | 220 – 240 V, 50 – 60 Hz, 300 W |
Characteristics | |
Environmental operating range | 10 °C to 35 °C (80 % max. relative humidity) |
Dimensions (W x D x H) | 200 mm x 280 mm x 100 mm |
Weight | (incl. blocks) 5.8 kg |
Order Info
Please note: The TB2 Thermoblock is discontinued. Block adapters are yet available.
Order number | Item |
|---|---|
Discontinued | Thermoblock TB2, 230 V; constant temperature incubation system with positions for two single blocks or one combi block; without blocks |
Discontinued | dto., 115 V |
Accessories | |
846-051-230 | Block lifter for TB1 and TB2 |
846-051-331 | Tube cover plate for TB2 |
846-051-350 | External temperature sensor for TB2 (for tubes > 0.5 ml volume) |
TB2 Blocks | Note: Blocks for TB2 are not compatible with predecessor model TB1 |
TB2 Blocks | |||
|---|---|---|---|
846-051-310 | 30 × 0,5 ml | conical wells | incl. tube cover plate and block lifter |
846-051-311 | 70 × 0,2 ml | conical wells | incl. tube cover plate and block lifter |
846-051-312 | 24 × 1,5 ml | conical wells | incl. tube cover plate and block lifter |
846-051-313 | 24 × 2,0 ml | cylindrical wells | incl. tube cover plate and block lifter |
846-051-315 | 20 × 1,3 cm ∅ | cylindrical wells | incl. block lifter |
846-051-316 | 8 × 5 ml conical/15 ml | conical wells (vessels) | incl. block lifter |
846-051-317 | 5 × 50 ml | conical wells (vessels) | incl. block lifter |
846-051-319 | without wells | incl. block lifter | |
846-051-320 | 96-well microtiter plate or 96 x 0.2 ml tubes | incl. block lifter | |
846-051-321 | microscopic slides or microtiter plates with flat bottom | incl. block lifter | |
Downloads
- Produktflyer TB2 Thermoblock .pdf | 273.30 kB
(e.g. Application Notes, Software, Manual, Short Manual)
