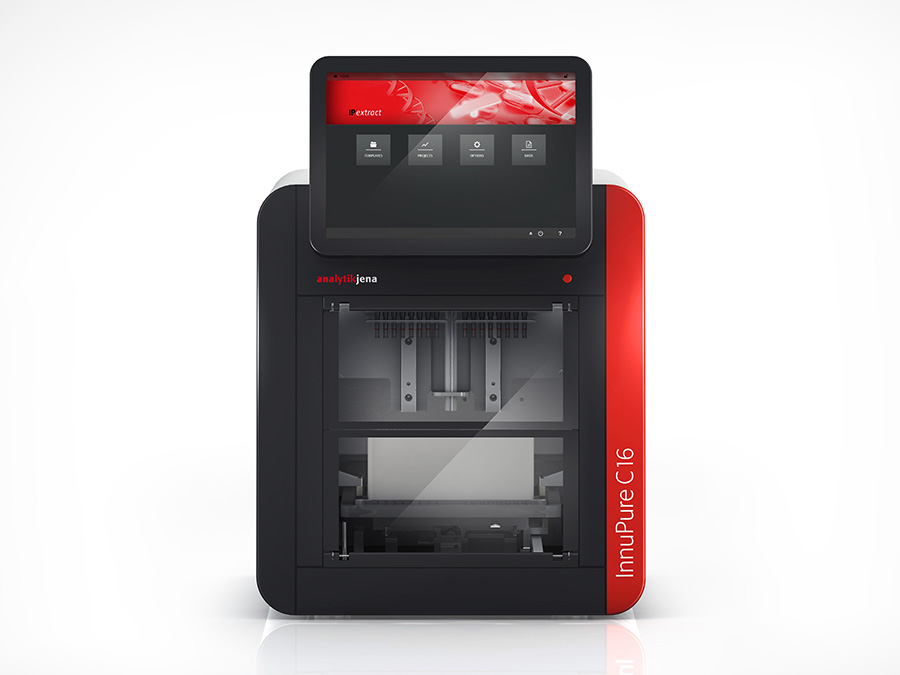

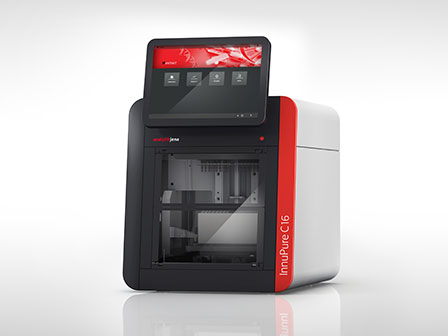

InnuPure® C16 touch
plus d'images
Features
InnuPure® C16 touch - The New Standard in Automated Extraction
- Universally applicable thanks to a wide range of extraction kits for isolating DNA and RNA
- Nucleic acid adsorption onto magnetic or paramagnetic particles
- Combined magnetic/heating unit offers flexible support for the automated process and collects the bound nucleic acids effectively
- Extraction based on patented, lowsalt DC-Technology®
- Prefilled reagent strips and/or plates for processing between 1 and 16 samples in parallel
- Sealed reagent cartridges simplify and speed up the process

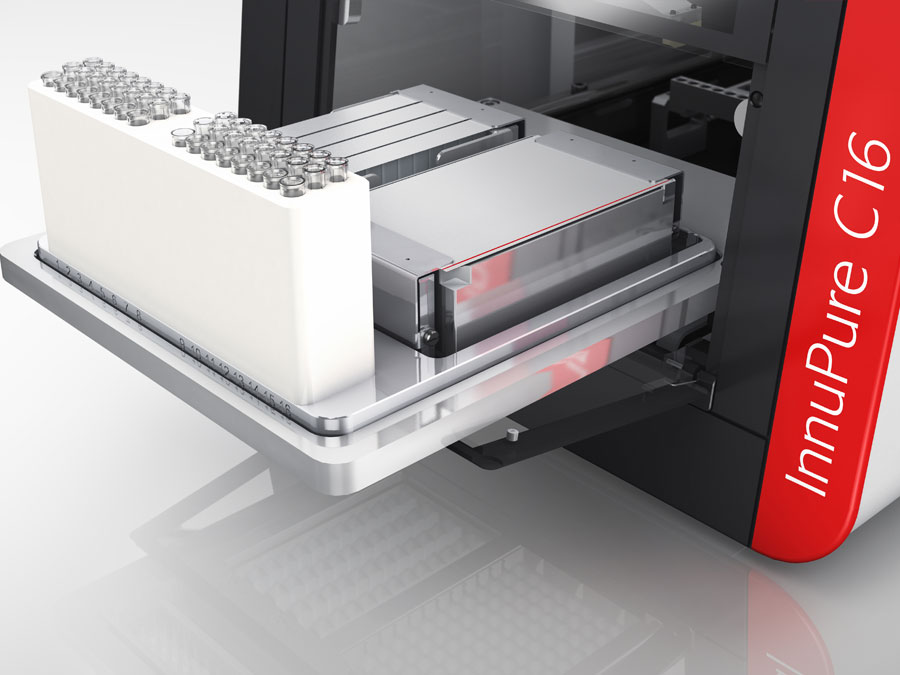

- Manual work is limited to loading the sample tray
- Highly precise pipetting; guaranteed pipette tip seal
- Desired elution volume can be automatically set between 20 and
500 μl - Final step: Isolated nucleic acids transferred to storage tubes with lids
- 1 ml pipette tips with integrated aerosol filter provide reliable protection for the dispensing unit
- Reagent cartridges do not need to be opened manually: instrument pierces seals
- Optional UV lamp provides a simple means of decontaminating the sample chamber

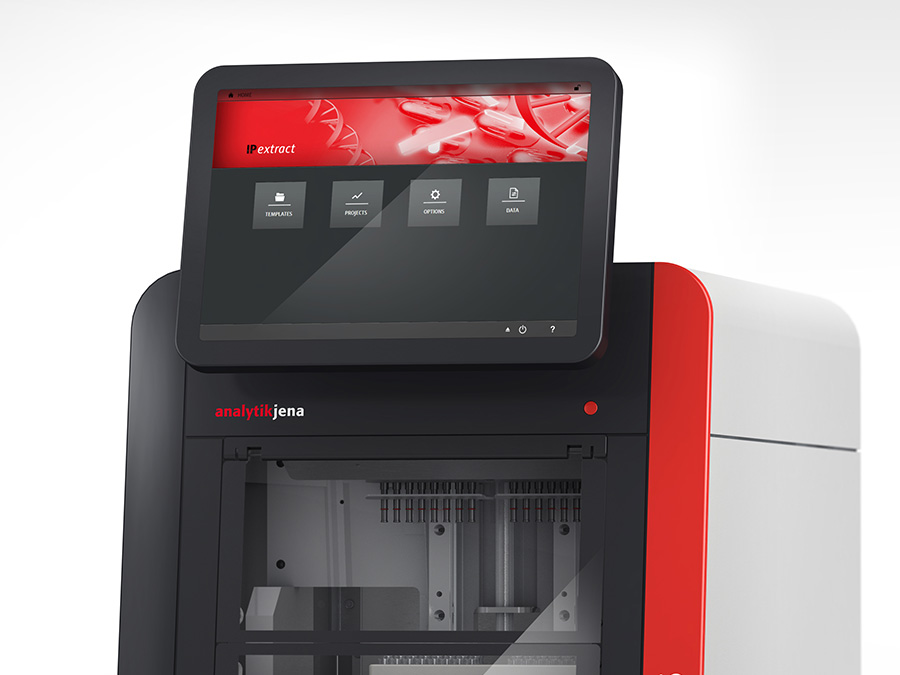

- Stand-alone operation with integrated
10” Tablet - Wizard feature guides beginners through the menu; experienced
users have quick, direct access to preinstalled extraction protocols - Barcode-marked extraction kits contain all relevant information
Product Info
Fully Automated Nucleic Acid Extraction
In addition to automated protocols for bacteria, viruses, as well as human, animal and plant tissues, customers can easily process complex forensic samples and highly processed food. The system also provides enrichment routines for cell-free nucleic acids and allows users to conduct bisulfite conversion for epigenetic analyses. High-quality magnetic and paramagnetic particles act as the solid phase for binding nucleic acids. Buffer conditions are set both to create a fine particle dispersion in solution and to ensure fast, quantitative sedimentation during collection, while the multifunctional heating/magnetic unit (IHMU - Intelligent Heating/Magnet Unit) is moved into position under the bottom of the reagent cartridges. The liquid can then be reliably aspirated without transferring magnetic particles. The heating function supports the automated process during lysis, drying and elution. Residual solvent, which can potentially inhibit subsequent applications, are removed effectively, and nucleic acids are efficiently desorbed in the elution buffer.
Rounding out the overall application is the use of patented
DC-Technology® (Dual-Chemistry). The use of variable buffer systems while simultaneously reducing the concentrations and/or ionic strengths required creates the perfect conditions for proteolytic lysis and reduces the potential risk of transferring salts into the eluted sample. This results in optimized workflow times and the extraction of high-quality nucleic acids.
Intelligent kit architecture
When used with the InnuPure® C16 touch, ready-to-use extraction kits greatly simplify routine laboratory work while saving resources. The timeconsuming job of filling reservoirs, for example, is a thing of the past. Prefilled cartridges also eliminate the risks of filling the wrong tubes and of spilling reagent. Most importantly, however, having so many kit elements prepared in advance saves valuable time. All kits come in two types of packaging: one that includes Reagent Strips for individual extraction processes for small numbers of samples and one with reagent plates for up to 16 extractions at medium sample volumes.This limits prep work for the InnuPure® C16 touch to simply loading the sample tray.
Core Liquid Handling Competencies
The use of a highly precise pipetting system makes InnuPure® C16 touch workflows accurate and reproducible. In addition, the high-quality pipette tips used guarantee optimal while minimizing the amount of liquid remaining in the tips. The integrated dispensing unit allows operators to set the elution volume to a value between 20 and 500 μl; transfer is then automatic. The pipette tips and Elution Tubes are all included as components of the extraction kit.
Technical Data
Extraction | |
|---|---|
Basis | Magnetic or paramagnetic particles |
Duration of extraction |
|
Ø Yield |
|
Elution volume | 20 μl up to 500 μl (in steps of 10 μl) |
Field of application | DNA and RNA extraction |
Sample parameters | |
Number of samples | Up to 16 samples in parallel, incl. single sample preparation |
Sample amount |
|
Tempering |
|
Control | |
Control | Stand-alone control |
Display | 10“ tablet PC, color, touch, WIN 8.1 |
Features |
|
Liquid Handling | |
Pipetting head / Channels | Dosing unit with 16 channels |
Tips | 1 ml tip with aerosol filter |
Working volume | Up to 1000 μl |
Functions | Pipetting and piercing function of the sealed reagent plastic |
Accessoires | |
Cleaning / Decontamination |
|
Kits and Reagents | Ready-to-use kits for DNA and RNA extraction |
Additional | Priming Station and Sample Tray |
Additional technical data | |
Interface | Tablet: USB for data transfer, barcode reader |
Noise emission | Max. 55 dB |
Warranty | 2 warranty on device system incl. tablet PC |
Dimensions | |
Weight | Approx. 30 kg |
Dimension (W x H x L) | 400 mm x 543 mm x 550 mm |
Order Info
Order number | Description |
|---|---|
845-00020-2 | InnuPure® C16 touch |
845-60025-0 | Priming station for InnuPure® C16 touch |
845-60026-0 | Sample Tray for InnuPure® C16 touch |
845-60006-0 | Adapter for 4 Reagent Strips |
Downloads
- Brochure InnuPure C16 touch (English) .pdf | 478.61 kB
- Application Note InnuPure C16 touch automated extraction DNA food samples .pdf | 405.21 kB
- Success Story Minerva Biolabs en .pdf | 553.24 kB
(e.g. Application Notes, Software, Manual, Short Manual)
Videos
InnuPure® C16
Magnetic particle based extraction system
